Description
xFeatures:
- 97% efficiency
- Low startup costs and a wide voltage range Voltage
- 2 MPPT Design with a low harmonic distortion against the grid and an exact MPPT algorithm
- THDi<1.5%
- various degrees of protection
- Export Power Manager Integrated (EPM)
- DC Protection Against Reverse Polarity
- Protection against Short Circuits
- Anti-resonance, supporting over 6MW parallelled
- in one transformer
- protection against surges
- Grid-monitoring Protection of Temperature
- Optional AFCI
- Wifi / GPRS (for real time monitoring)
Documents:

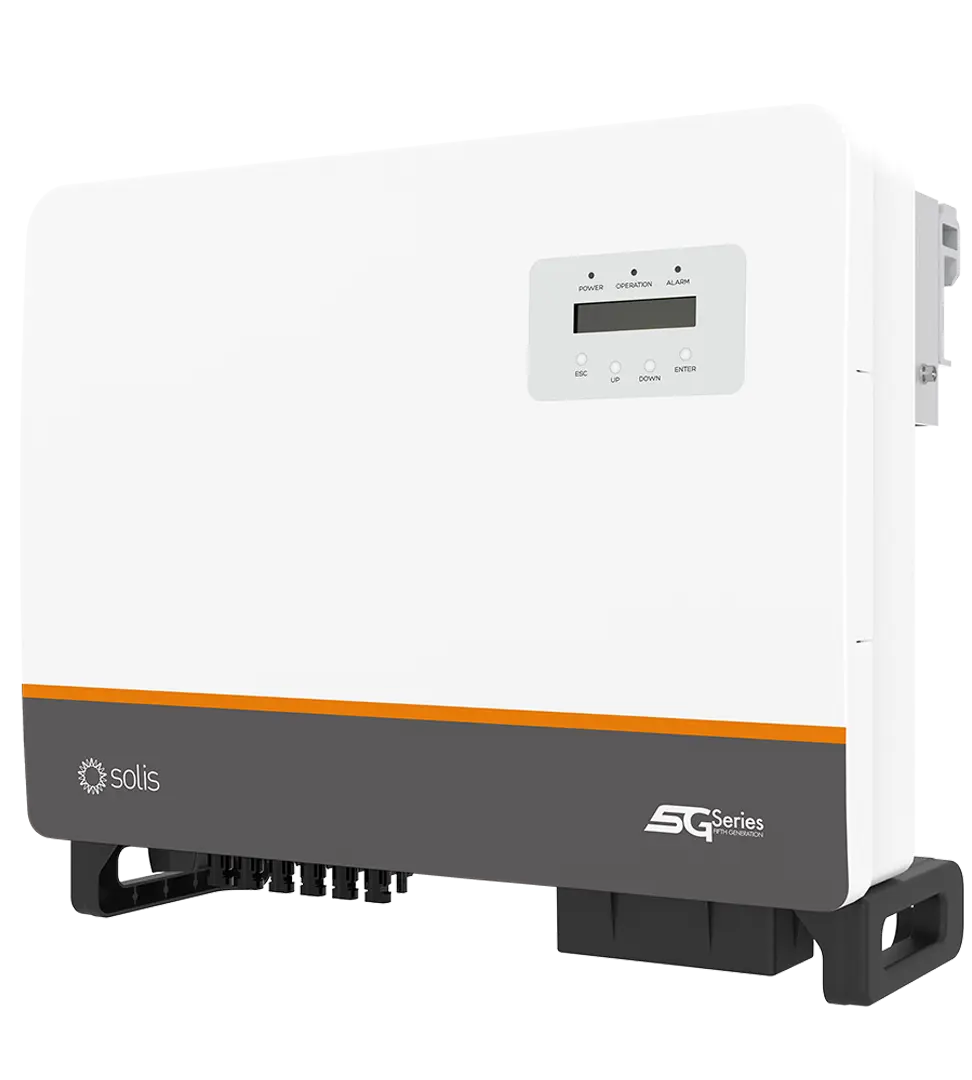

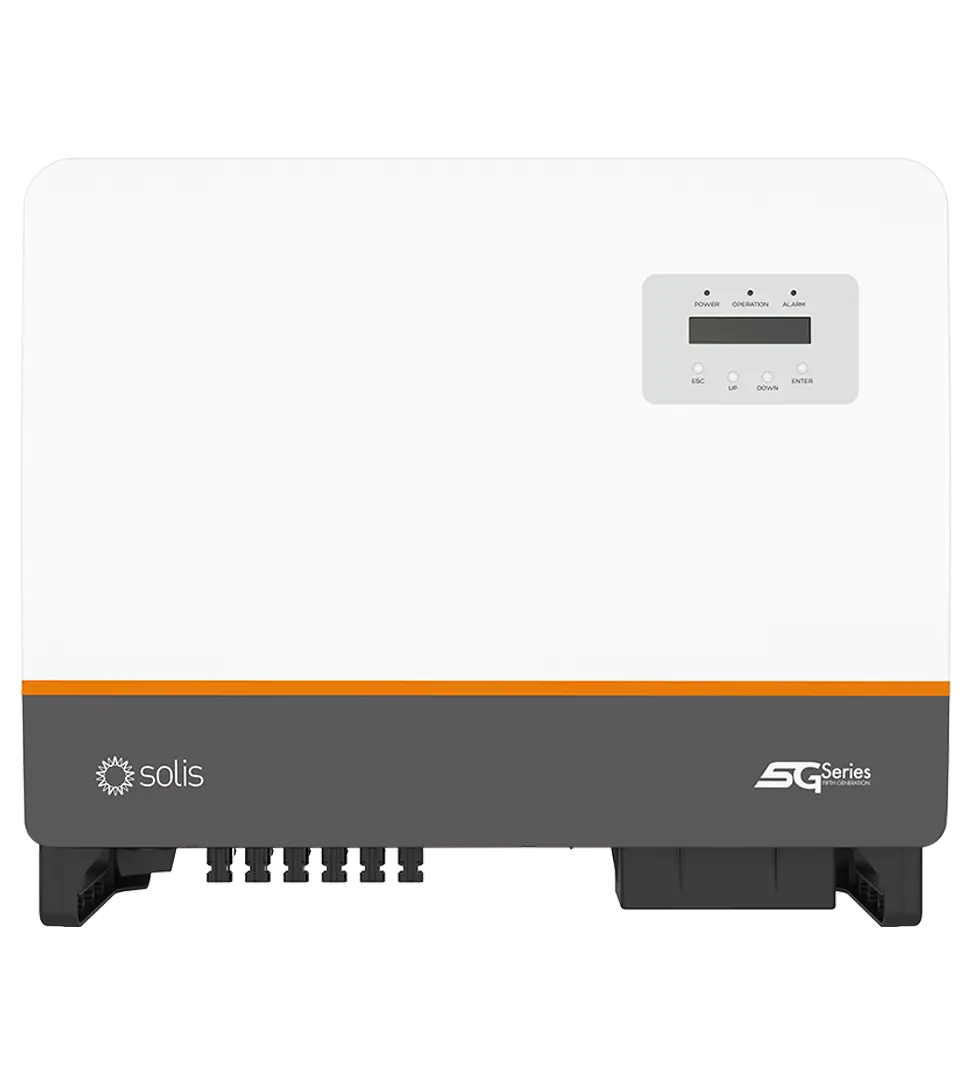

Solis 15KW 3 Phase LV Hybrid Inverter
| Display Specification | |
| Display | LCD |
| HARDWARE FEATURES | |
| Efficiency | 97 % |
| TECHNICAL SPECIFICATION | |
| DC Connection | MC4 connector |
| Ingress Protection | IP65 |
| Max. Output Current (A) | 39.4 A |
| MPPT Voltage Range | 200-800 V |
| Rated Voltage | Rated Voltage |
| Start-up Voltage | 350 V |
| General Specification | |
| DC Switch | Optional |
| Max. Input Current [A] | 20 A |
| Max. PV Power | 18 kw |
| Output over Current Protection | Yes |
| Rated Output Power | 15 kw |
| Short Circuit Current | 28.1 A |
| Short Circuit Protection | Yes |
| Surge Protection | Yes |
| Weight | 58.2 kg |
| Dimensions | 530 x 700 x 356.5 mm |
