Description
xProduct details:

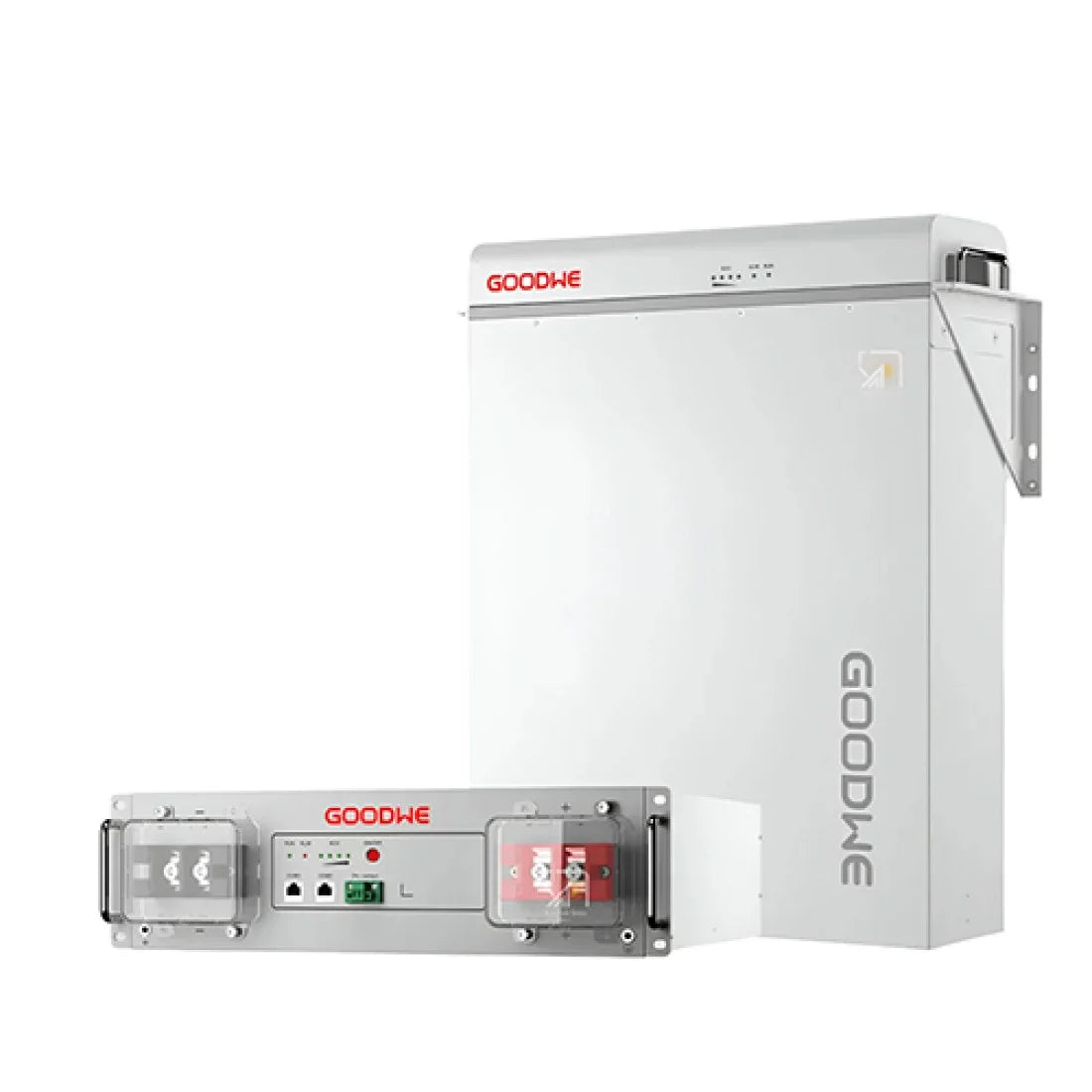

The Goodwe Lynx A G3 Series LX A5.0-30 is a low-voltage lithium iron phosphate (LFP) battery designed for residential solar energy storage. It is known for its modular design, long cycle life, and compatibility with Goodwe's residential hybrid inverters.
Features:
- Safe and reliable: The LFP cell technology provides enhanced safety and thermal stability.
- Scalable: The modular design allows for system expansion to meet growing energy needs. Up to 30 units can be connected in parallel for a maximum capacity of 150 kWh.
- Compact design: The small size and lightweight nature make it easier to handle and install in residential areas.
- Integrated BMS: Each battery pack includes a dedicated battery management system for real-time monitoring and safety.
- Remote diagnostics: When connected to a compatible Goodwe inverter, it enables remote diagnostics and firmware updates.
- Flexible installation: Supports multiple installation methods, including floor, wall, and 19-inch rack mounting.
| HARDWARE FEATURES | |
| Efficiency | 96% |
| TECHNICAL SPECIFICATION | |
| Nominal voltage | 51.2V |
| General Specification | |
| Cell Type | LFP (LiFePO4) |
| Charge Current | 90 A |
| Communication | CAN |
| Cycle Life | >6,000 cycles at 90% Depth of Discharge (DOD) |
| discharge current | 100 A |
| Mounting method | 19-inch rack, floor-mounted, or wall-mounted |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100 Ah |
| Operating voltage range | 43.20–58.24V |
| Scalability | Up to 30 units in parallel |
| Weight | 44 kg |
| Dimensions | 442 x 133 x 520 mm |
