Description
xProduct details:

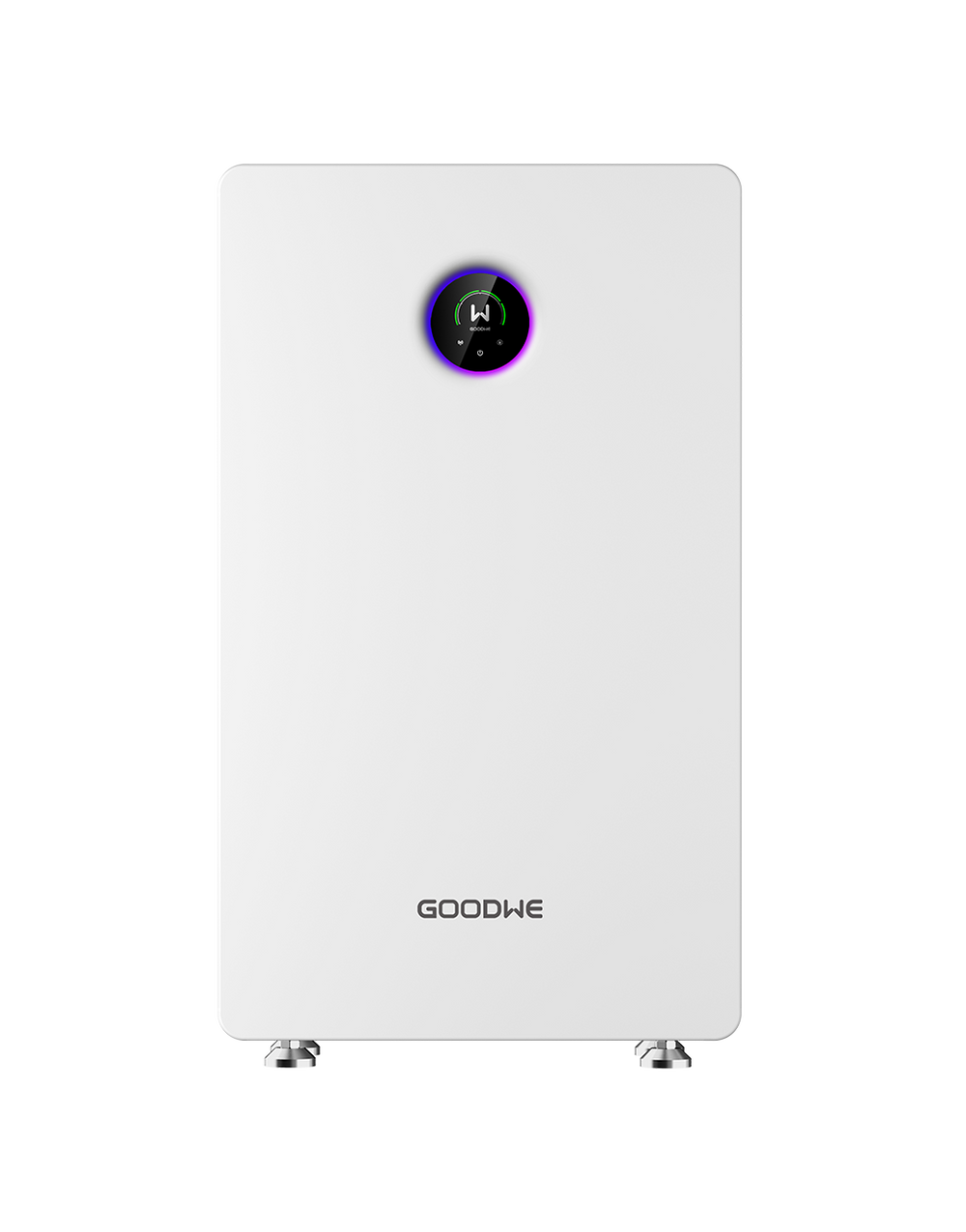

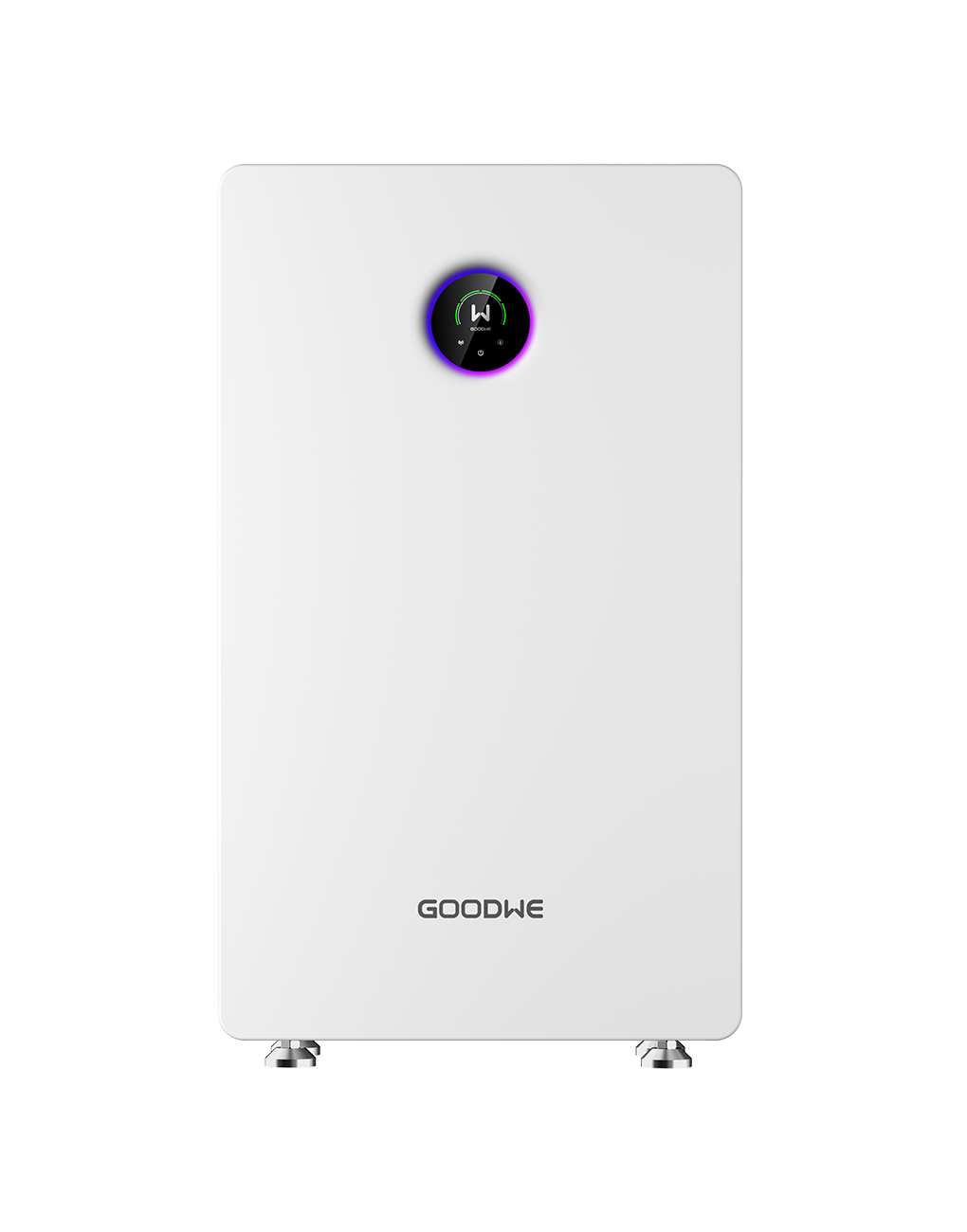

The GoodWe BAT Series 14.3kWh Battery (model GW14.3-BAT-LV-G10) is a high-capacity, low-voltage LiFePO₄ energy storage solution designed for modern residential solar systems. Built for reliability, long life, and seamless compatibility with GoodWe's single-phase ES Uniq and three-phase ET LV inverters, this battery ensures maximum self-consumption, backup power security, and energy independence.
Documents:
14.3kWh GoodWe BAT Series Datasheet
Features:
- Safe and reliable: 280Ah LFP cell technology provides enhanced safety and thermal stability, with up to 6,500 cycles of long-term durability.
- High power output: Supports continuous high-rate charging and discharging for fast response to household load demands.
- Scalable: Supports parallel connection for system expansion to meet growing energy needs.
- Integrated BMS: Each battery pack includes a dedicated battery management system for real-time monitoring and safety.
- Remote diagnostics: When connected to a compatible GoodWe inverter, it enables remote diagnostics and firmware updates.
- Flexible installation: Supports floor and wall mounting.
- Cold-climate ready: Optional built-in heating technology supports reliable operation down to -20°C.
| HARDWARE FEATURES | |
| Efficiency | 96% |
| TECHNICAL SPECIFICATION | |
| Nominal voltage | 51.2V |
| General Specification | |
| Model | GW14.3-BAT-LV-G10 |
| Cell Type | LFP (LiFePO4) |
| Rated Energy | 14.3 kWh |
| Usable Energy | ≥13.8 kWh |
| Max. Continuous Charge Current | 224A |
| Max. Continuous Discharge Current | 260A |
| Max. Output Power | 12 kW (13.2 kW @ 10min) |
| Peak Output Power | 20 kW @ 15s |
| Cycle Life | 6,500 cycles |
| Communication | CAN, RS485 |
| Mounting method | Floor-mounted or wall-mounted |
| Protection Rating | IP20 |
| Weight | 125 kg |
| Dimensions | (W×H×D): 530 × 885 × 246 mm (without base) |
| Warranty | Confirm with your GoodWe distributor – not yet verified |
