xProduct Details:

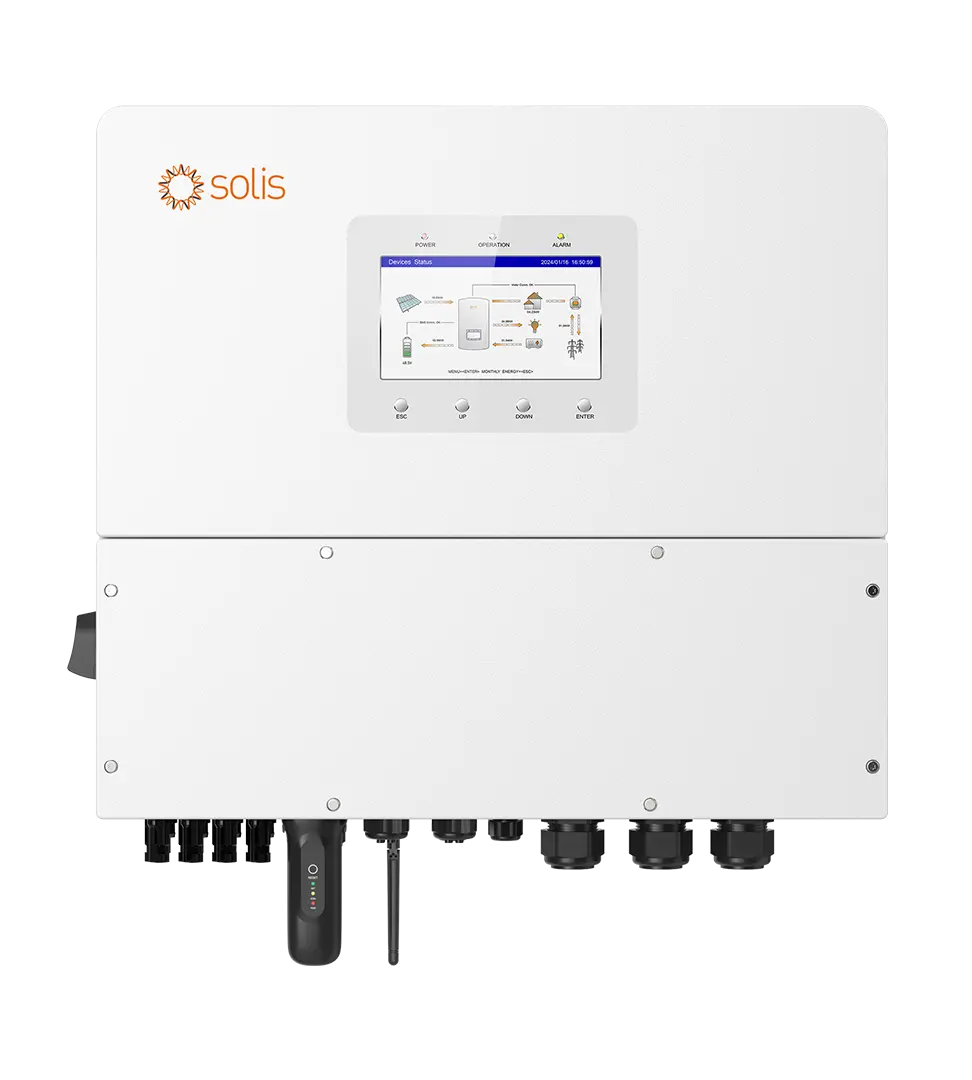

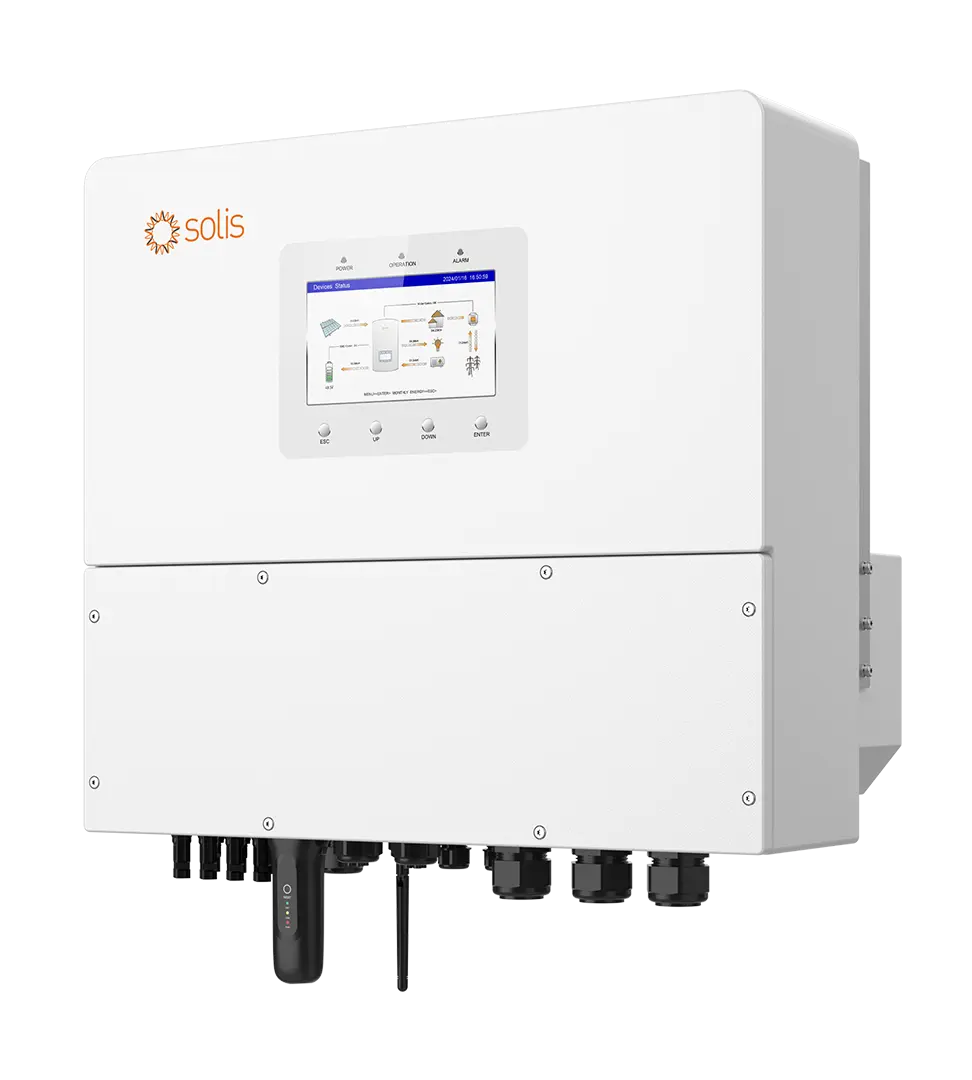

The S6-EH3P(8-12)K-LV-H series three-phase hybrid inverters are suitable for large residential and small commercial PV energy storage systems with a 230VAC grid. It features a 7-inch LCD screen for easier human-computer interaction, and its charge/discharge capacity of 50A/12kW allows you to quickly capture more solar energy during the day for consumption at night. The product has a strong load capacity, supports three-phase unbalanced output and half-wave load. Additionally, the product offers a rich set of functions to provide you with a better green experience.
Features:
- SG heat pump compatibility
- Supports peak shaving features
- Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
- Generator-compatible to extend backup duration during grid power outage
- Supports dual backup ports for intelligent control of critical and non-critical loads
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Supports AC voltage detection of grid and generator output to prevent damage to generators from reverse current from the grid
Documents:
Solis 12KW 3 Phase LV Hybrid Inverter.pdf
| Current DC | |
| Max. Input Current | 20 A / 40 A |
| Display Specification | |
| Display | LCD + Bluetooth + APP |
| Summary | |
| Temperature Range | -40 ~ +60°C |
| Output | |
| Topology | Non-isolated |
| TECHNICAL SPECIFICATION | |
| AC Connection | Screw terminal |
| DC Connection | MC4 Quick connection plug (PV) & Screw terminal (Battery) |
| Ingress Protection | IP66 |
| MPPT Voltage Range | 2000-850 V |
| Rated Voltage | 550 V |
| Start-up Voltage | 160 V |
| General Specification | |
| apparent output power | 12 kVA |
| Battery Type | Li-ion |
| Battery Voltage Range | 40 - 60 V |
| Communication | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
| connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, Sri Lanka, EN 50438L, Vietnam, PEA/MEA |
| Cooling | Intelligent redundant fan-cooling |
| Frequency | 50 Hz / 60 Hz |
| Max. Charge / Discharge Current | 250 A |
| Max. input voltage | 1000 V |
| Max. usable PV input power | Max. usable PV input power |
| MPPT number/Max. input strings number | 2/3 |
| operation altitude | 4000 m |
| Rated Grid Voltage | 380 V / 400 V |
| Safety | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 |
| Short Circuit Current | 30 A / 50 A |
| Weight | 42 kg |
| Dimensions | 430*660*295 mm |
