Description
xProduct Details:

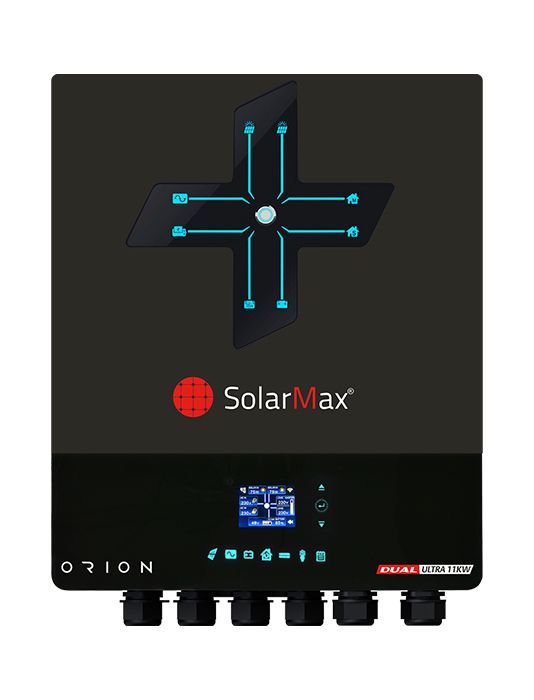

SolarMax Introduced first time in Pakistan Orion Ultra 11KW Hybrid Inverter with Dual MPPT 12KW PV inputs Equipped with 2 AC Inputs & 2 smart AC outputs for Load, CT sensor, and user-friendly interface, Orion Ultra is top-equipped solar inverter. With two independent input power sources - utility and generator - it ensures uninterrupted AC power and incorporates a super large charger (150A) for fast battery charging, even with limited available time from AC or solar sources. In addition, the SolarMax Orion Ultra offers a second AC output, enabling users to customize cut-off voltage, state of charge (SoC) percentage, discharge time, and scheduled on/off time.
Features:
- Pure sine wave inverter
- Grid Feeding Feature for Net Metering
- Built-in LED bars to indicate the energy source and power flow
- Touchable button with seven-page colorful LCD
- Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade
- Supports USB On-the-Go function
- Built-in current transformer sensor to meet self-consumption application
- Dual outputs for smart load management
- Two independent AC power sources connected and switched automatically
- Configurable output usage timer and prioritization
- Configurable charger source priority
- Configurable battery charging current
- Reserved communication ports for BMS (RS485, CAN-BUS)
- Reserved external BTS (Battery Temperature Sensor) detection
- Reserved optional GFCI, Rapid shutdown, AFCI detections
- Built-in Parallel Kit for Parallel operation with 6 units
- Built-in anti-dusk kit
| General Specification | |
| Communication | Built-in USB/RS232/RS485WIFI/Dry contact/BTS support optical GFCI, rapid shutdown, AFCI detection |
| Frequency Range | 50 HZ/60 HZ (Auto sensing) |
| Output | 11000W (Dual Output) |
| PV Input Voltage | 12000W |
| Voltage | 230 VAC |
| Weight | 18.4kg |
| Dimension | 145 x 438 x 553.6 |
