Description
xFEATURES:

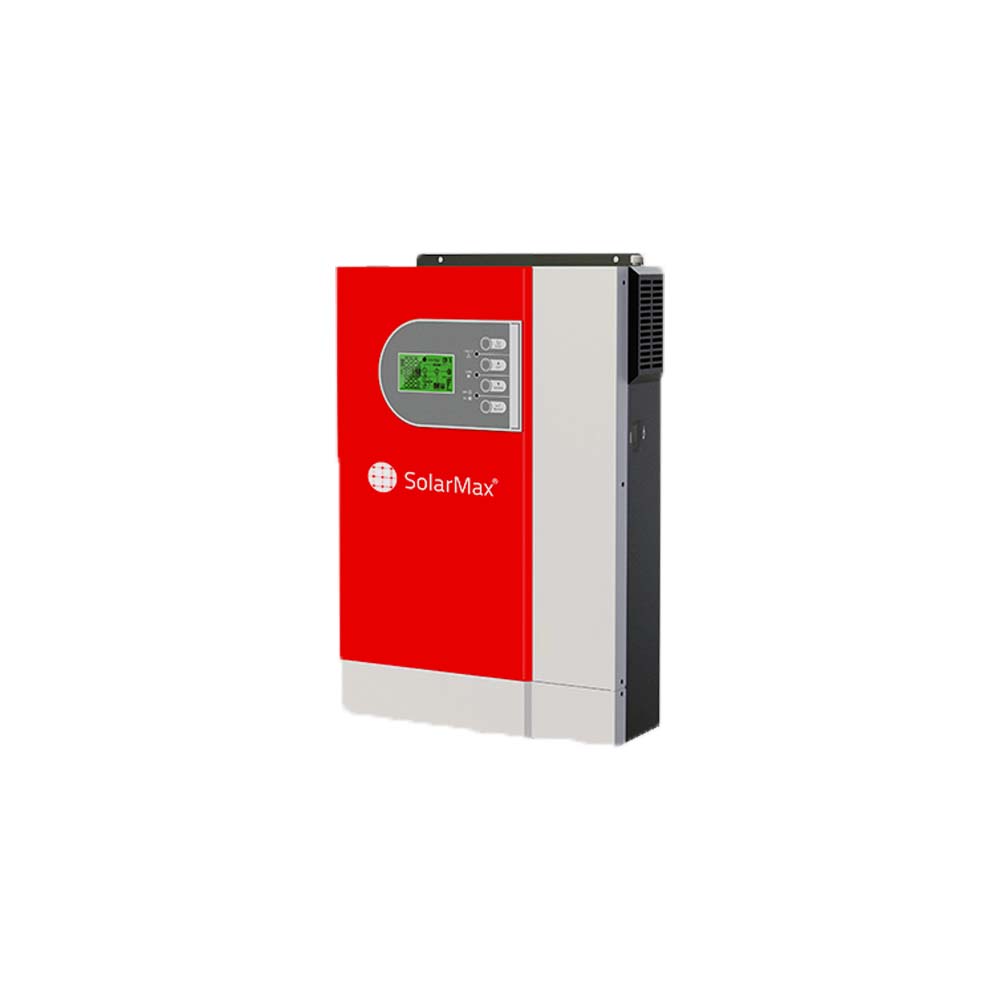

- Pure sine wave solar inverter
- Output power factor-1
- Selectable high power charging current
- Wide DC input range
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimization of battery performance, equalization and lifecycles.
- Cold start function
| POWER | |
| Voltage | 230VAC. |
| Summary | |
| communication interface | USB/RS232. |
| Selectable range | Voltage Range : 170-280 VAC (For Personal Computer) ; 90-280 VAC (For Home Appliances). |
| Humidity | 5% to 95% Relative Humidity (Non-condensing). |
| HARDWARE FEATURES | |
| Battery Voltage | 24 VDC. |
| Efficiency | Peak : 93%. |
| Rated power | 1500VA/1500W. |
| Output | |
| Transfer Time | 10 ms For Personal Computer) ; 20 ms (For Home Appliances). |
| TECHNICAL SPECIFICATION | |
| Operating Temperature | -10°C - 50°C. |
| Storage temperature | -15°C - 60°C . |
| Surge Power | 3000VA. |
| General Specification | |
| Waveform | Pure sine wave. |
| WIRELESS FEATURES | |
| Frequency Range | 50/60 Hz (Auto sensing). |
