xProduct Details:

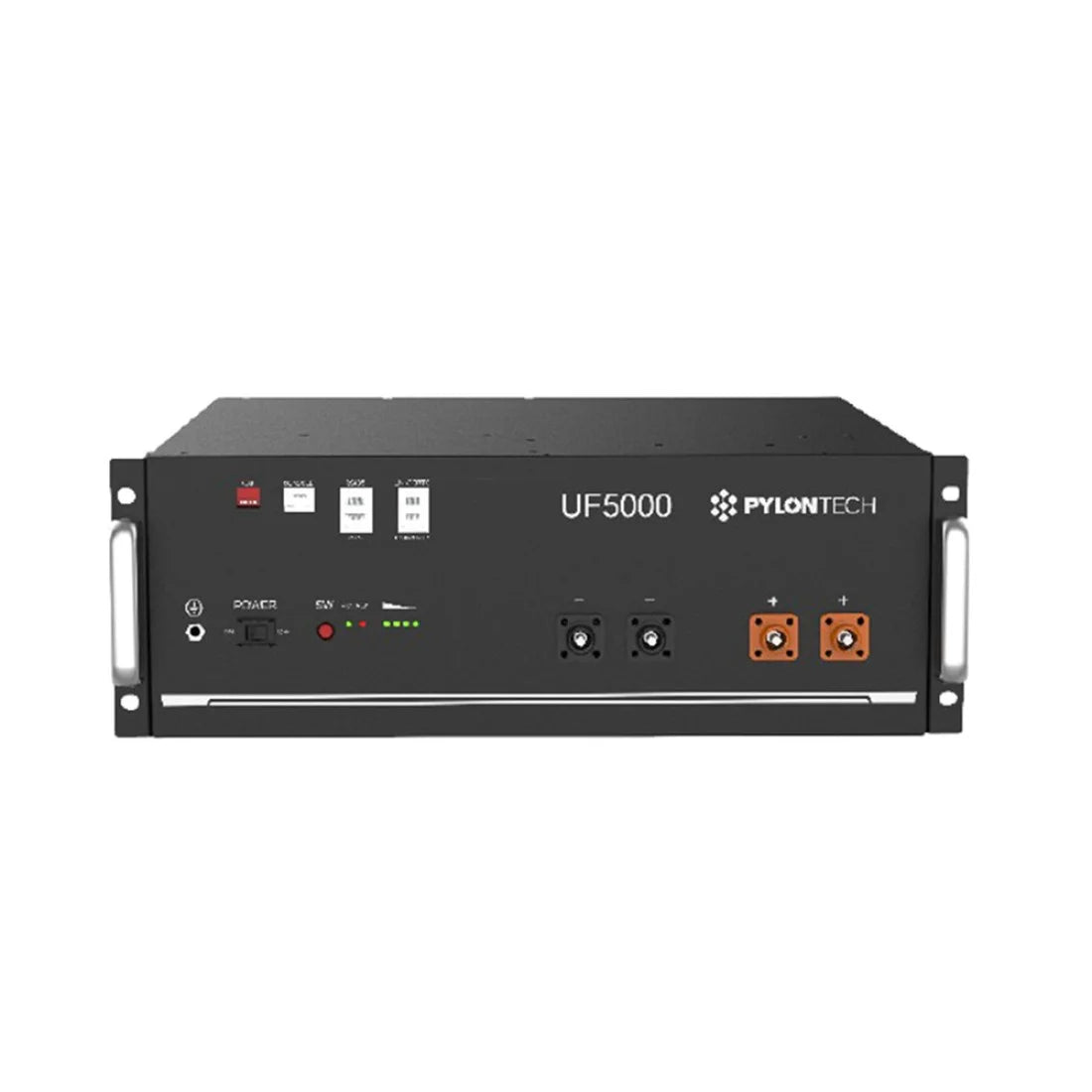

Introducing the Pylontech UF5000, a cutting-edge 5.12 kWh Li-Ion Battery designed to redefine your approach to energy storage. Pylontech has once again revolutionized the game with this innovative battery, featuring a modular design for effortless expansion, higher usable capacity, and intelligent Battery Management System (BMS) protection.
Features:
- Compact design saves installation space
- Expandable up to 20 battery sets/rows
- Integrated vertical system from Cell, Module, BMS is the “key” to achieving high efficiency
- 95% depth of discharge
- Lifespan up to 15 years
- Compatible with most Hybrid Inverters
- IP20 protection level
| POWER | |
| Charge Voltage | 56-56.8 Vdc |
| TECHNICAL SPECIFICATION | |
| Communication Port | RS485,CAN |
| Discharge Current | 100 A |
| Nominal voltage | 51.2 Vdc |
| General Specification | |
| Configurations | 20 pcs |
| Discharge Voltage | 45.6-56.8 Vdc |
| IP Protection | IP20 |
| Nominal Capacity | 5.12 kWh |
| Operating Temperature | -10°C->55°C |
| Storage temperature | -20°C->60°C |
| Type | Lithium Ion Battery |
| Weight | 42 Kg |
| Dimension | 442 x 452.6 x 161 mm |
