Description
xFeatures:

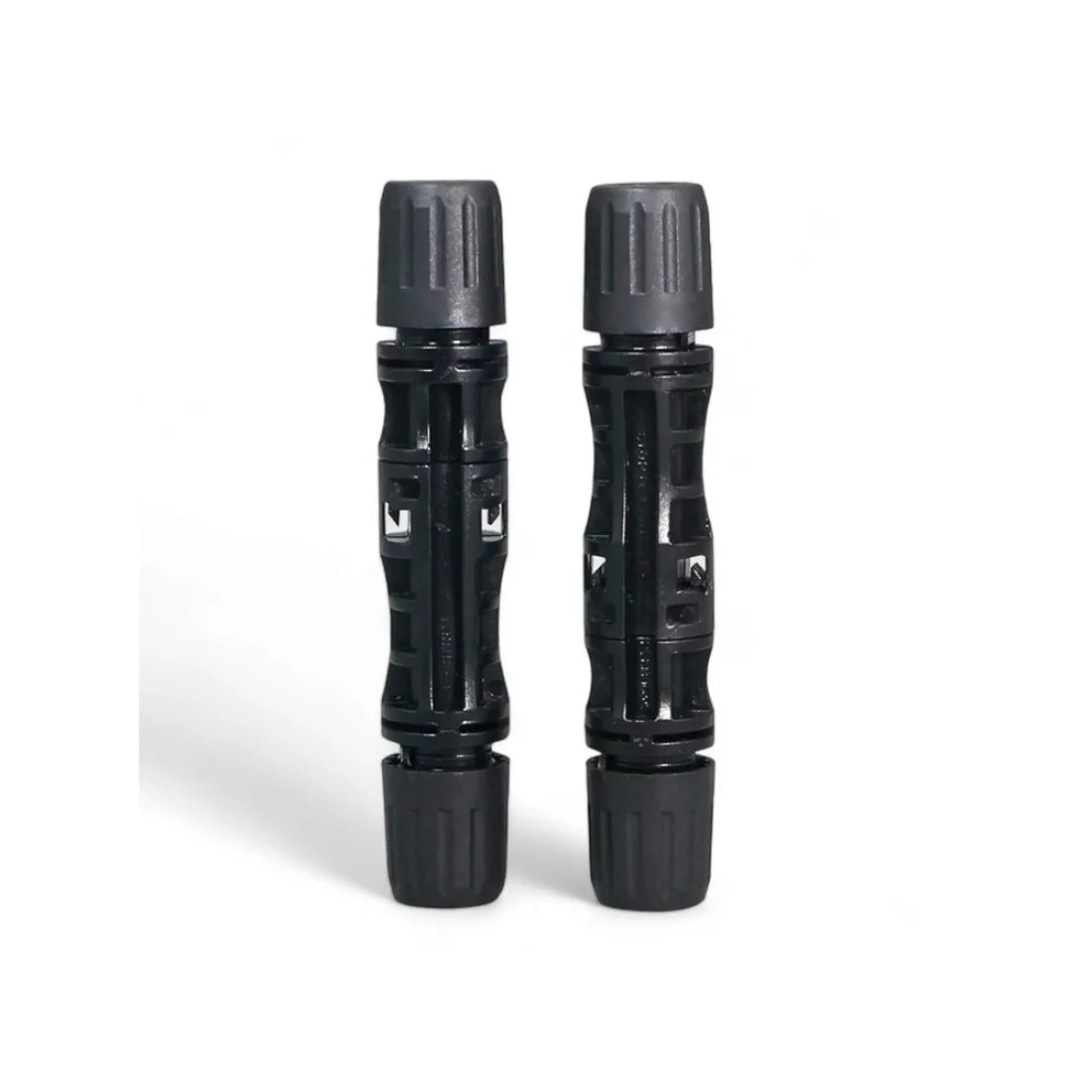

- 1500V DC: The connectors are rated for a maximum voltage of 1500V, making them suitable for high-efficiency, large-scale solar installations
- Weatherproof: Designed to withstand harsh outdoor environments, these connectors are built to resist water, dust, and UV exposure
- IP67 Rating: This indicates they are fully protected from dust and can endure submersion in water up to 1 meter deep for a short duration
- MC4 Compatible: The connectors are compatible with the industry-standard MC4 connectors used in most solar panel systems, allowing for easy integration into existing setups
- 20A to 40A Current Rating: Depending on the specific version, these connectors are capable of handling high currents, supporting efficient power transfer and reducing energy losses
- UV Resistant: Made from materials designed to resist UV radiation, the connectors ensure long-term durability even under direct sunlight exposure
- Corrosion-Resistant Contacts: The contacts are made of high-quality materials, like tin-plated copper, to prevent corrosion and ensure a stable electrical connection
| Computers Specs | |
| Cables | or cable cross-sections from 2.5 mm² to 6 mm² (AWG 14-10). |
| GAMING ACCESSORIES | |
| MECHANISM TYPE | Secure and robust locking system to ensure safe connections |
| Summary | |
| Contact Resistance | < 0.5 mΩ (milliohms) |
| HARDWARE FEATURES | |
| Voltage Rating | 1500V DC |
| TECHNICAL SPECIFICATION | |
| Rated Current | Typically 20A, but some versions can handle up to 40A depending on the wire size and environmental conditions. |
| General Specification | |
| Insulation Resistance | ≥ 1000 MΩ (Megaohms) at 500V DC |
| Strength | 6000V AC |
