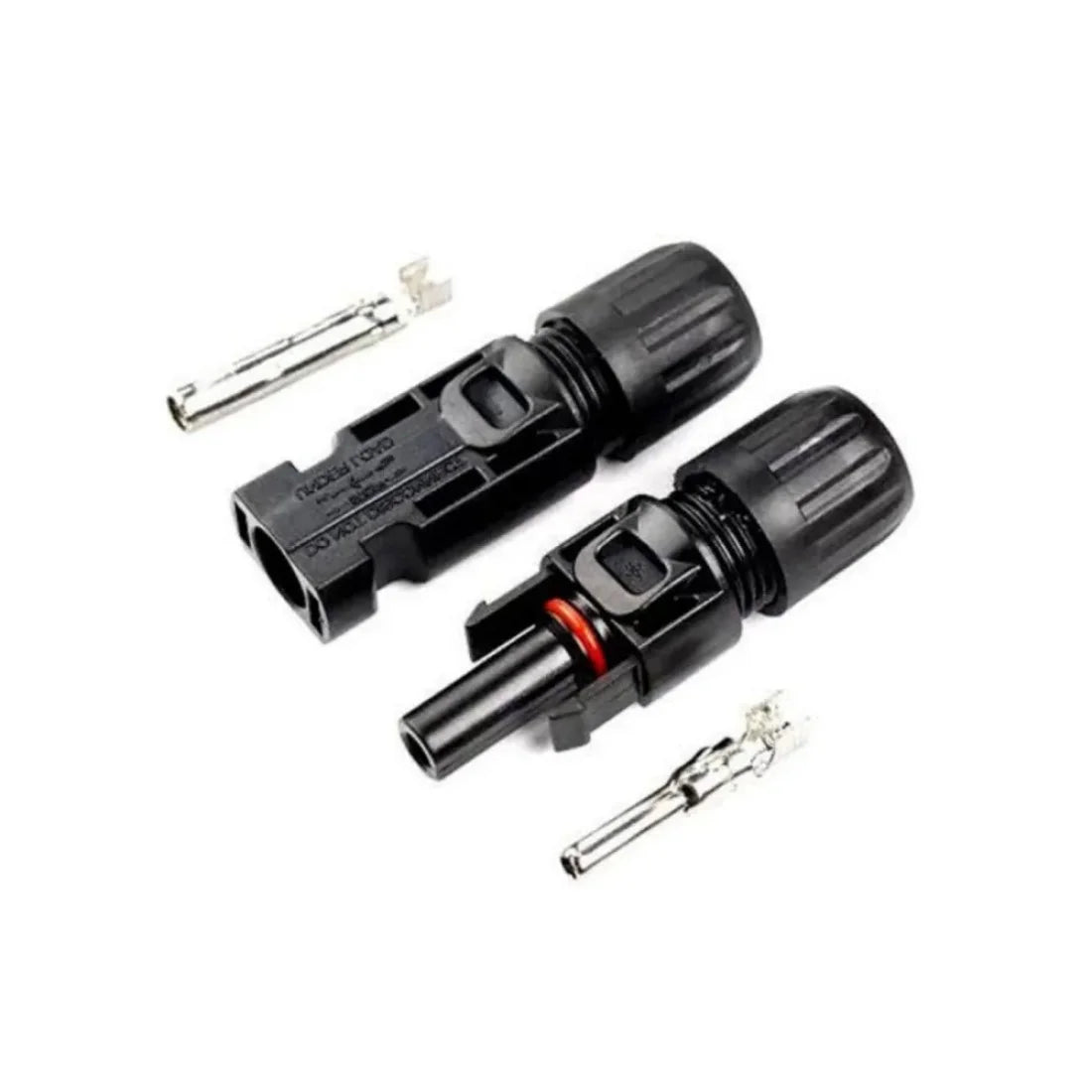

Description
xFeatures:
- Designed to handle voltages up to 1000V DC, making them suitable for large-scale solar installations and other high-voltage applications.
- Built with high-quality materials, often featuring UV-resistant thermoplastic housings, which provide durability and long-lasting performance even under exposure to sunlight
- These connectors have a locking mechanism that ensures a tight, secure connection between components. This reduces the risk of accidental disconnection
- Able to carry significant electrical current without overheating, making them ideal for larger solar installations where high power flow is required
- The connectors are designed to be easy to install and can typically be connected without requiring special tools. This allows for quicker assembly during installation
- The contacts in the Pixel Voltic MC4 connectors are usually made of tin-plated copper or silver-plated contacts, both of which are resistant to corrosion, ensuring long-term performance
| Summary | |
| Temperature Range | -40°C to +90°C |
| TECHNICAL SPECIFICATION | |
| Ingress Protection | IP Rating: IP67 |
| Maximum Voltage | 1000V DC (or sometimes 1500V DC, depending on the specific variant) |
| Nominal current | 30A |
| Nominal voltage | 1000V DC |
| General Specification | |
| Contact Material | Contacts: Tin-plated copper or silver-plated copper (depending on the connector variant) Contact Resistance: Low resistance for minimal power loss |
| Insulation Resistance | ≥ 1000 MΩ |
| Maximum Current | 30A |
| Size | 2.5 mm² to 6 mm² cables |
| Dimensions | Length: Typically 50-60 mm per connector (varies by model) Width: 15-20 mm (depends on the specific model and conductor size) |
