Description
xOVERVIEW:

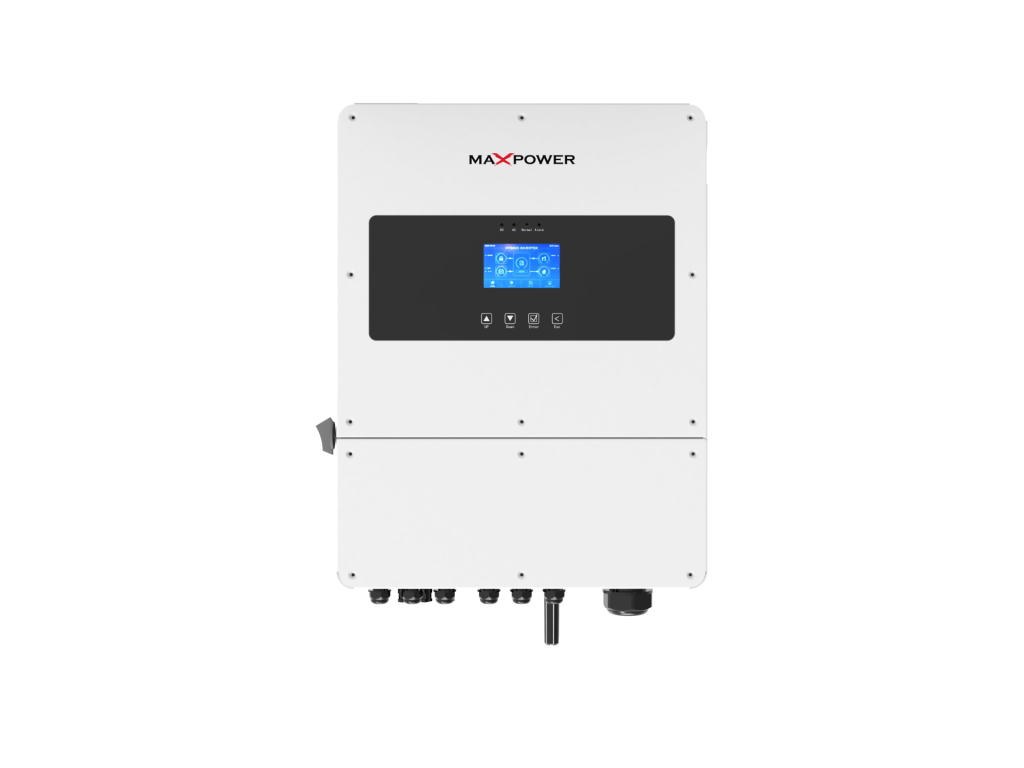

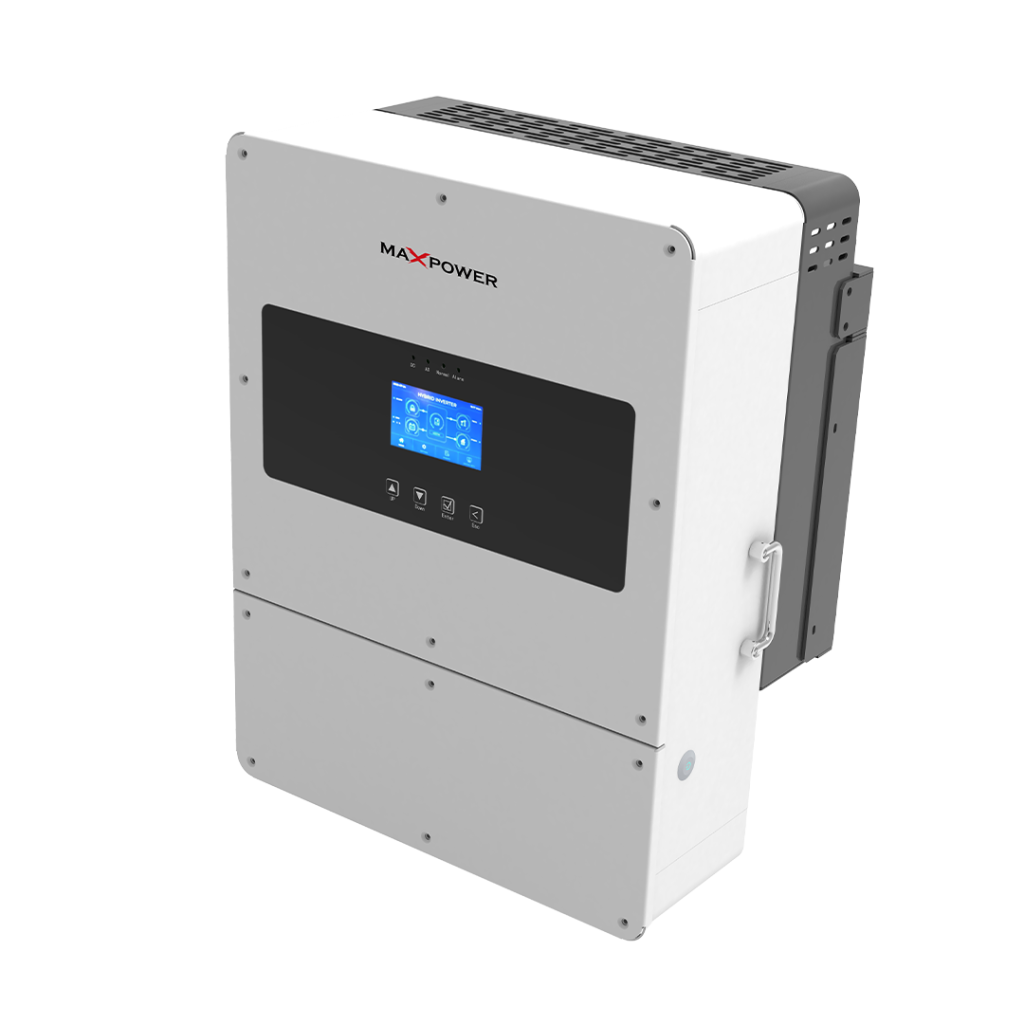

The Voltas 8K-H4 Single-Phase Hybrid Inverter is a versatile solution for residential and commercial applications to optimize energy efficiency and solar power utilization. Its robust capabilities make it ideal for integrating solar energy with battery storage.
The Voltas 8K-H4 supports lead-acid and Li-Ion batteries and has a battery voltage range of 40-60 V. It allows a maximum charge current of 140 A and a discharge current of 140 A and utilizes a 3-stage charging curve for efficient battery management. It also includes an optional external temperature sensor for enhanced functionality.
The inverter ensures safety with integrated PV ARC fault detection and output over-voltage protection. With a maximum efficiency of 97.90% and an IP65 rating for protection against dust and water, the Voltas 8K-H4 is built for reliable performance in various environments. This inverter enhances your solar power system, delivering cutting-edge technology and exceptional reliability.
Features:
- Max. DC Input Power: 12,000 W
- PV Input Voltage: 370 V (range: 125-500 V)
- MPPT Voltage Range: 150-425 V
- No. of MPPT Trackers: 2
- Rated AC Output Power: 8,000 W
- Max. AC Output Power: 9,600 W
- Power Factor: 0.8 leading to 0.8 lagging
| General Specification | |
| Battery Voltage Range | 40 - 60 V |
| Max Charge Current | 140 A |
| Max DC input power | 9000W |
| Max efficiency | 97.90% |
| Phase | Single Phase |
| Type | Hybrid Inverter |
| Weight | 34 Kg |
| Dimension | 567 x 467 x 292 mm |
