xProduct Details:

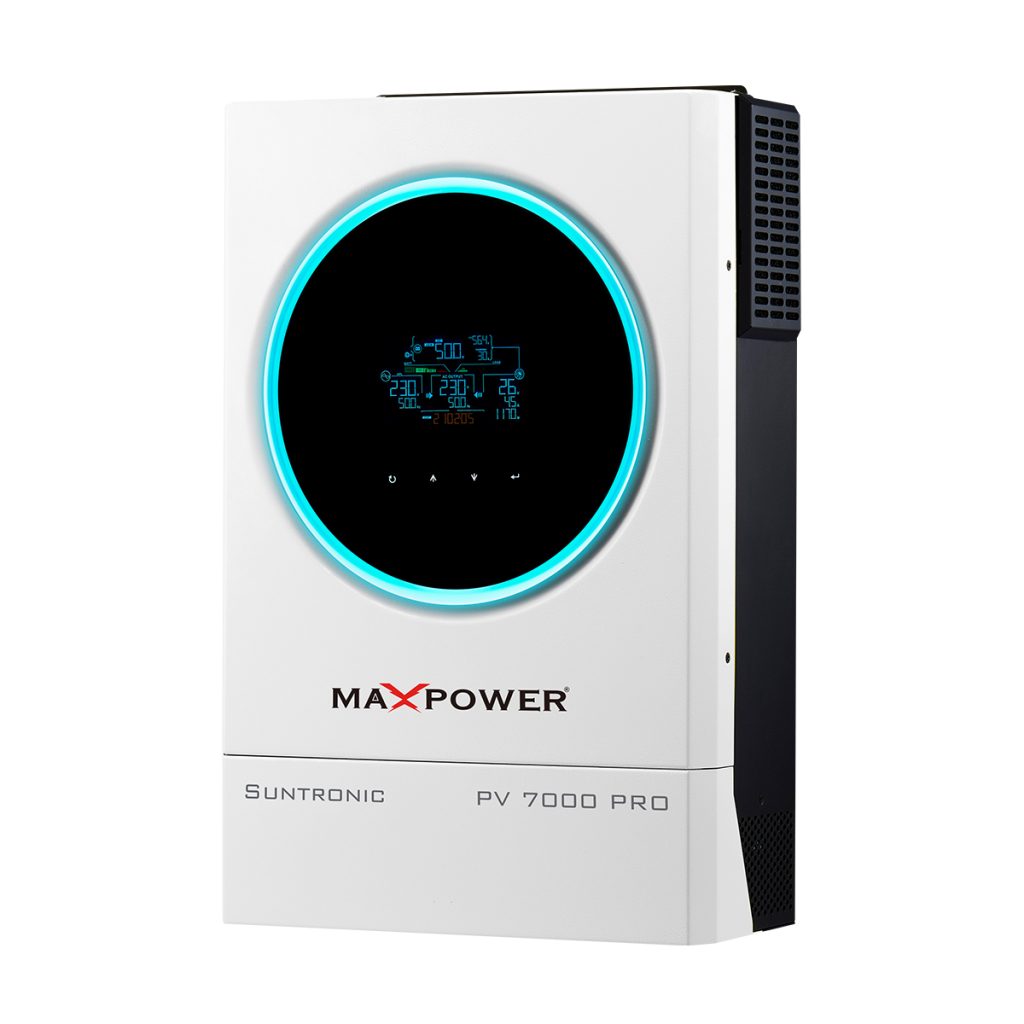

The Suntronic PV7000 Pro is a high-efficiency solar inverter designed for strong energy management in homes and businesses. It offers 7000W PV input power and 6000W output power, with a maximum charging power of 6000W. The inverter has a 360V nominal DC voltage, 500V max DC voltage, and starts at 110VDC.
It uses one MPP tracker with an MPP voltage range of 120-430VDC and a 27A max input current. It delivers a stable 220/230/240 VAC output with a selectable range of 184-264.5 VAC. The 26A output current and 96% efficiency ensure reliable performance.
It supports an AC input voltage range of 90-280 VAC and works efficiently in various conditions, making it a dependable choice for solar energy management.
Features:
- IP21 Solar Inverter
- 7000W PV input power
- Max input current 27A
- 48V compatible battery system
- MPP voltage range 120-430 VDC
- AC input voltage 90-280 VAC
Documents:
| Summary | |
| Voltage range | 120 VDC ~ 450 VDC |
| Operating Voltage | 120 VDC ~ 430 VDC |
| HARDWARE FEATURES | |
| Efficiency | 93% |
| Input Current | 27A |
| Output | |
| Nominal Output Voltage | 220/230/240 VAC |
| TECHNICAL SPECIFICATION | |
| Array Power | 6000W |
| Communication Port | Communication Port |
| General Specification | |
| Humidity | 0 ~ 90% RH (Non-condensing) |
| Operating Temperature | 0 to 50°C |
| Type | On-Grid Energy Storage Inverter |
| Dimensions | 140 x 295 x 468 |
| WIRELESS FEATURES | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
