Description
xKey Features:
- Dual Output For Smart Load Management
- IP65 waterproof and dustproof makes the inverter available for various working conditions
- Built-in Current Transformer Sensor To Meet Self-Consumption Application
- Programmable Multiple Operation Modes: Grid-tie, Off-Grid And Grid-Tie With Backup
- Touchable Button With Large 4.3″ Colored LCD
- Built-in Wifi for Mobile Monitoring (Android/iOS App Available)
- Built-in Wi-Fi For Mobile Monitoring (App is Available)
- Support External BTS (Battery Temperature Sensor) Detection
- Reserved Communication port for BMS (RS485, CAN-BUS or RS232)
DATASHEET

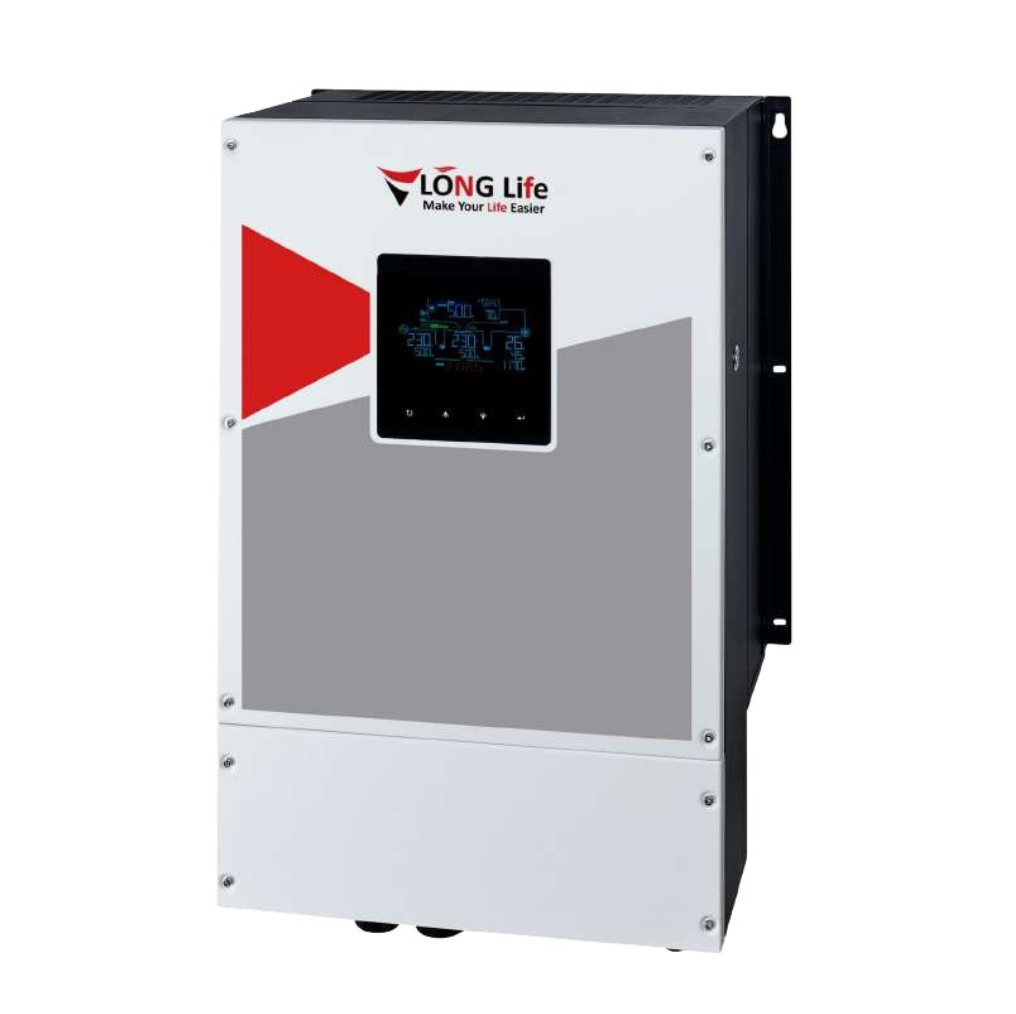

Long Life 8kw Alexa Hybrid Inverter
| Category | Specification | Details |
|---|---|---|
| MODEL | ALEXA TWIN 8KW | |
| RATED POWER | 8000VA / 8000W | |
| PARALLEL CAPABILITY | YES, 6 units | |
| INPUT | Voltage | 230 VAC |
| Selectable Voltage Range |
170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) | |
| OUTPUT | AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA | |
| Efficiency (Peak) | 93% | |
| Transfer Time |
10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
| No Load Power Consumption | < 85W | |
| BATTERY | Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC | |
| Overcharge Protection | 66 VDC | |
| SOLAR & AC CHARGER | Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) | |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum PV Input Current | 18 A x 2 | |
| Maximum Solar Charge Current | 150 A | |
| Maximum AC Charge Current | 120 A | |
| Maximum Charge Current | 150 A | |
| PHYSICAL | Dimensions (D x W x H) | 210 x 435 x 665 mm |
| Net Weight | 32 kg | |
| Communication Interface | USB / RS-232 / Dry Contact / RS485 / WiFi / BMS | |
| OPERATING ENVIRONMENT | Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| STANDARD | Compliance Safety | CE |
