Description
xKey Features:
- Dual Output For Smart Load Management
- Maximum Pv Input Current 27A
- Programmable supply priority for PV, Battery or Grid
- Programmable Multiple Operation Modes: Grid-tie, Off-Grid And Grid-Tie With Backup
- Touchable Button With Large 4.3″ Colored LCD
- Built-in Wifi for Mobile Monitoring (Android/iOS App Available)
- Built-in Wi-Fi For Mobile Monitoring (App is Available)
- Programmable Multiple Operation Modes: Grid-tie, Off-Grid And Grid-Tie With Backup
- Reserved Communication Port For BMS Parallel Operation Up To 9 Units
DATASHEET

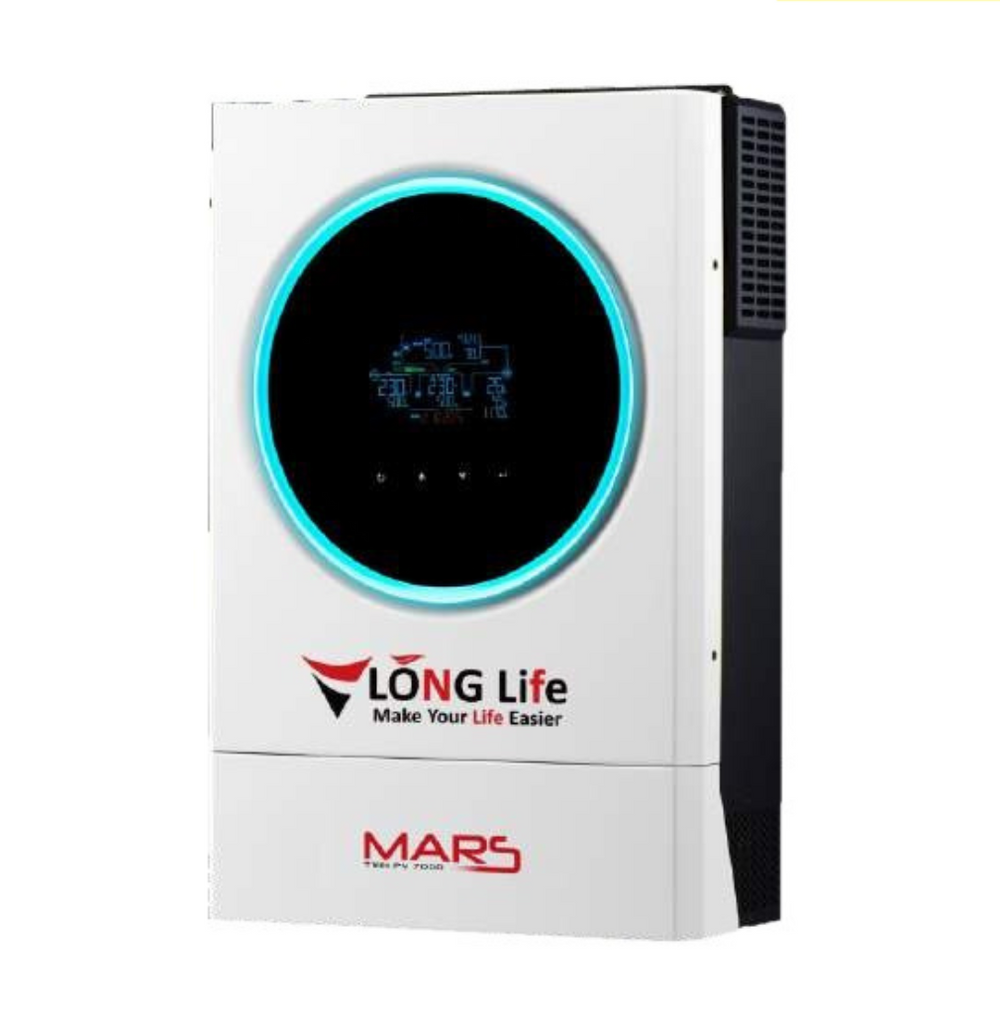

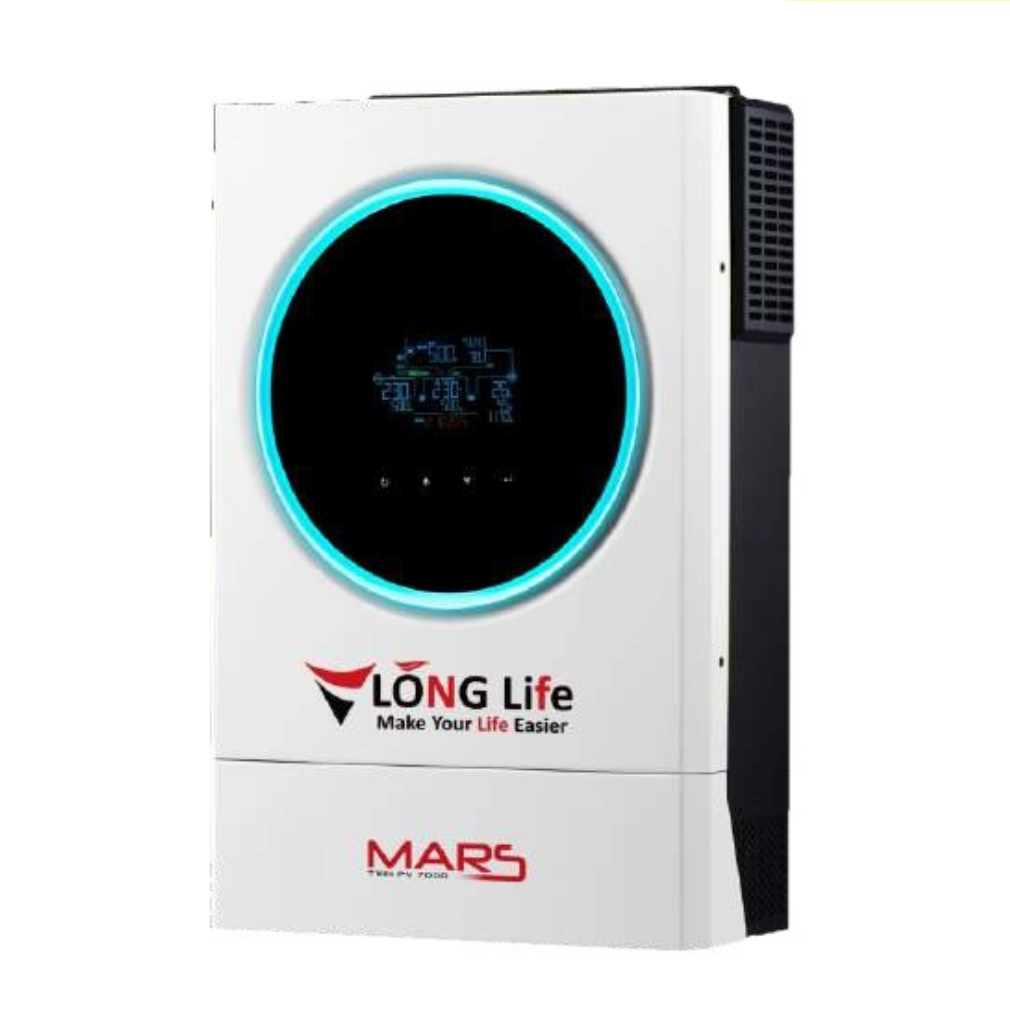

Long Life 6kw Mars Hybrid Inverter
| Category | Specification | Details |
|---|---|---|
| MODEL | PHASE |
MARS TWIN 6KW 1-phase in / 1-phase out |
| MAXIMUM PV INPUT POWER | 7000W | |
| RATED OUTPUT POWER | 6000W | |
| MAXIMUM CHARGING POWER | 6000W | |
| GRID-TIE OPERATION | PV INPUT (DC) |
Nominal DC Voltage / Max DC Voltage: 360 VDC / 500 VDC Start-up Voltage / Initial Feeding Voltage: 120 VDC / 150 VDC MPPT Voltage Range: 120 VDC ~ 430 VDC Number of MPPT Trackers / Max Input Current: 1 / 27A |
| GRID OUTPUT (AC) |
Nominal Output Voltage: 220/230/240 VAC Output Voltage Range: 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) Nominal Output Current: 26A Power Factor: > 0.99 |
|
| EFFICIENCY | Maximum Conversion Efficiency (DC/AC): 96% | |
| OFF-GRID OPERATION | AC INPUT |
AC Start-up Voltage / Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC Maximum AC Input Current: 40 A |
| PV INPUT (DC) |
Maximum DC Voltage: 500 VDC MPPT Voltage Range: 120 VDC ~ 430 VDC Number of MPPT Trackers / Max Input Current: 1 / 27 A |
|
| BATTERY MODE OUTPUT (AC) |
Nominal Output Voltage: 220/230/240 VAC Output Waveform: Pure sinewave Efficiency (DC to AC): 93% |
|
| HYBRID OPERATION | PV INPUT (DC) |
Nominal DC Voltage / Max DC Voltage: 360 VDC / 500 VDC Start-up Voltage / Initial Feeding Voltage: 120 VDC / 150 VDC MPPT Voltage Range: 120 VDC ~ 430 VDC Number of MPPT Trackers / Max Input Current: 1 / 27A |
| GRID OUTPUT (AC) |
Nominal Output Voltage: 220/230/240 VAC Output Voltage Range: 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) Nominal Output Current: 26A |
|
| AC INPUT |
AC Start-up Voltage / Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC Maximum AC Input Current: 40A |
|
| BATTERY MODE OUTPUT (AC) |
Nominal Output Voltage: 220/230/240 VAC Efficiency (DC to AC): 93% |
|
| BATTERY & CHARGER |
Nominal DC Voltage: 48 VDC Maximum Solar Charging Current: 120A Maximum AC Charging Current: 120A Maximum Charging Current: 120A |
|
| GENERAL | PHYSICAL |
Dimensions (D x W x H): 140 x 295 x 468 mm Net Weight: 12 kg |
| INTERFACE |
Parallel Function: Yes, 9 units Communication Port: USB/RS232/RS485/WiFi/Dry-contact |
|
| ENVIRONMENT |
Humidity: 0 ~ 90% RH (Non-condensing) Operating Temperature: -10 ~ 50°C |
