Description
xOverview:

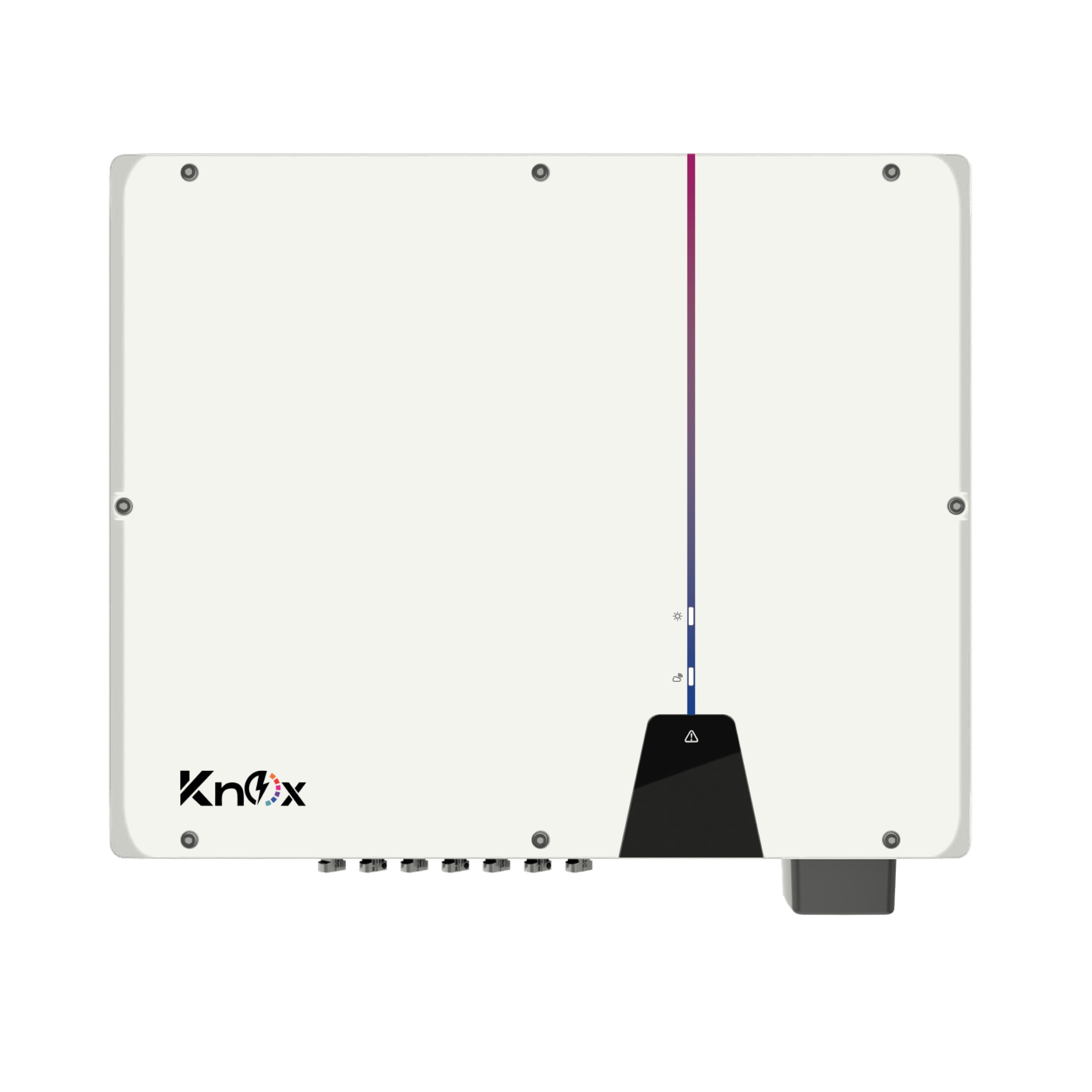

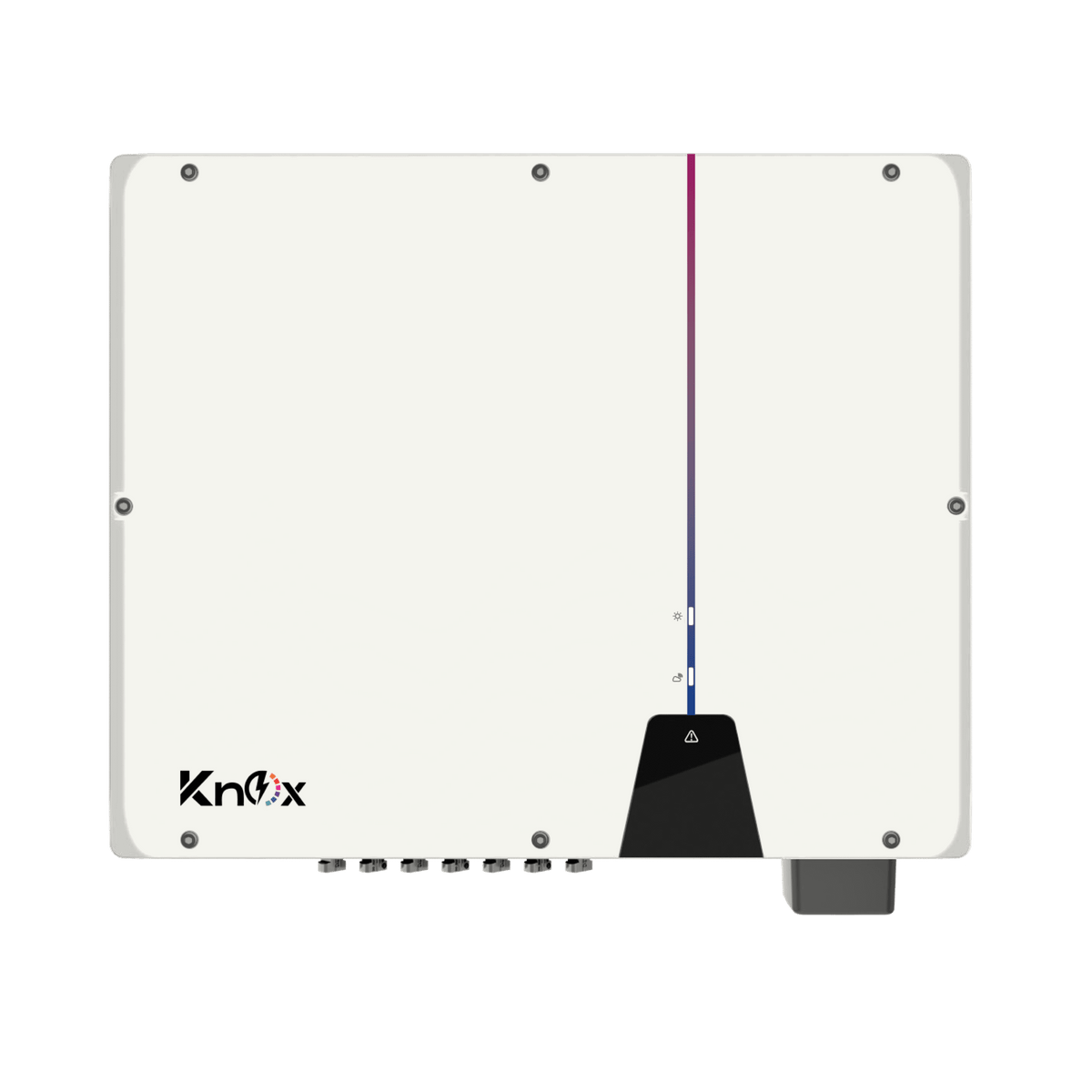

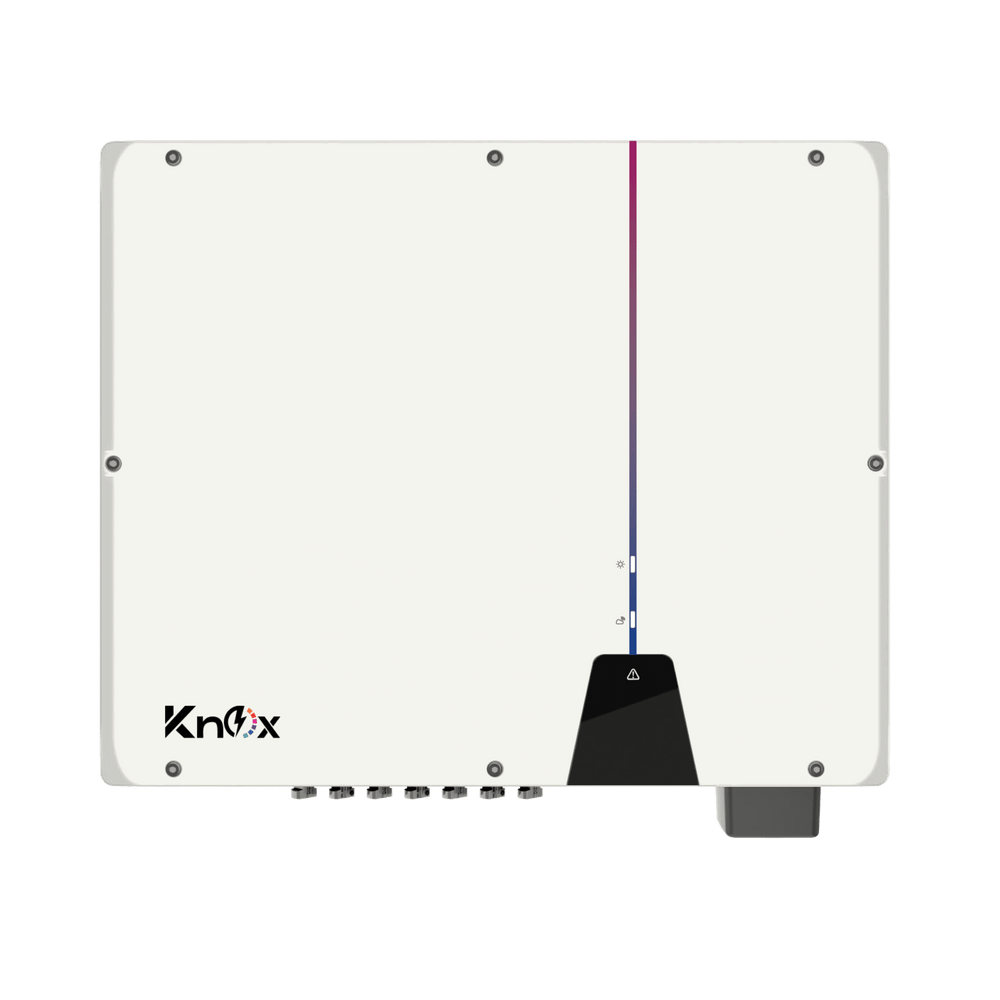

The ASW 60K LT-G2 Inverter is our line of benchmark three phase solar inverters designed for use in small decentralized residential, commercial, and industrial systems. These high-performance and high-delivery inverters are extremely easy to install and commission and are designed to be reliable and low-maintenance.
Reliability:
The ASW 60K LT-G2 Inverter was designed in accordance with international quality and safety standards and is a robust family of extremely reliable solar inverters. The IP65 certification rating also means these inverters will maintain their reliability in a wide range of environmental conditions. From a purely technical angle, the DC reverse polarity protection, AC sensitive residual current monitoring, and built-in surge protection functions ensure reliable and safe long-term operation.
Powerful:
Our ASW 60K LT-G2 Inverter solar inverters are designed for power. A maximum DC input of 26A and a wide MPP voltage range ensure highly optimized energy performance for bi-facial and large-area PV modules. These dynamic solar inverters also allow up to 150% oversizing of the attached PV array, making them perfect for residential rooftop solar installations that vary greatly in their design, scale, and purpose.
Easy to Install:
The ASW 60K LT-G2 Inverter is designed to be installed quickly and easily with standard tools and the Phoenix Contact DC connectors make these inverters compatible with a wide range of solar panels. Optional Plug & Play and 4G dongles connect them to the internet and allow up to five to be monitored by Solplanet’s user-friendly mobile application. Users can view real-time solar installation data, configure their inverters, and receive system alerts, right in the palm of their hand.
The ASW 60K LT-G2 Inverter feature a sleek design that is compact, wall-mountable, and IP65-rated, making them weatherproof and extremely durable. They have a wide MPP voltage range with a possible 150% oversizing of the PV array for flexibility and efficiency under a variety of conditions. Do you need an inverter that can power an energy-hungry system? The ASW 60K LT-G2 inverter feature a maximum input current of 13A per string making them a perfect pairing for bi-facial and large-area PV arrays.
Features:
- Delivers 60kW of power, meeting the energy needs of extensive residential and commercial systems.
- Exceptional efficiency ensures optimal solar energy conversion, maximizing your return on investment.
- Integrated real-time monitoring and remote control capabilities for optimal energy management.
- Advanced data analytics to track and manage system performance effectively.
- Built-in protection features such as over-voltage, under-voltage, over-temperature, and short-circuit prevention for safety.
- Designed to protect your system and extend the operational life of the inverter.
| Summary | |
| communication interface | Wi-Fi / RS485 |
| HARDWARE FEATURES | |
| Degree of protection | IP65 |
| TECHNICAL SPECIFICATION | |
| Array Power | 75000Wp |
| Nominal voltage | 220V/380V - 230V/400V |
| Rated Input Voltage | 200V to 1000V/630V |
| Rated Power | 60000W |
| General Specification | |
| Current | 40A |
| Dimensions | 67 x 27 x 58 cm |
| Weight | 43 kg |
