xProduct Details:

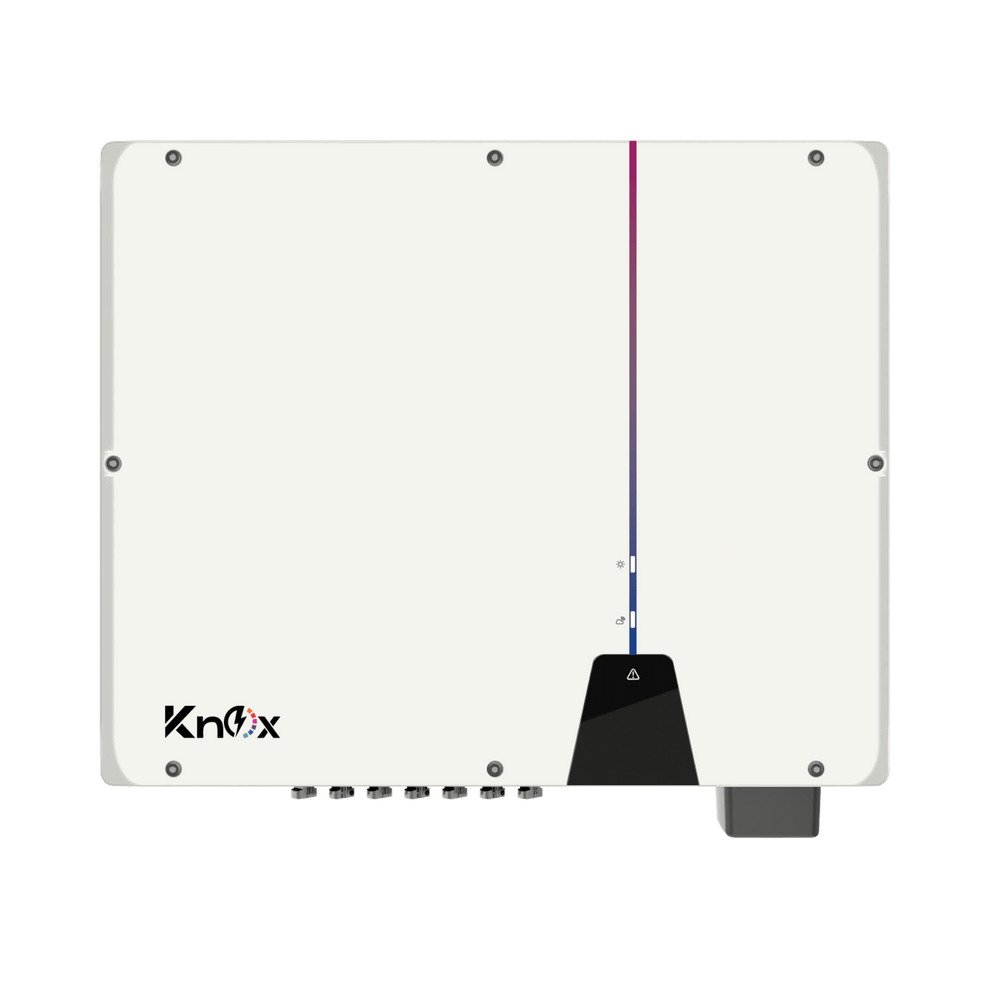

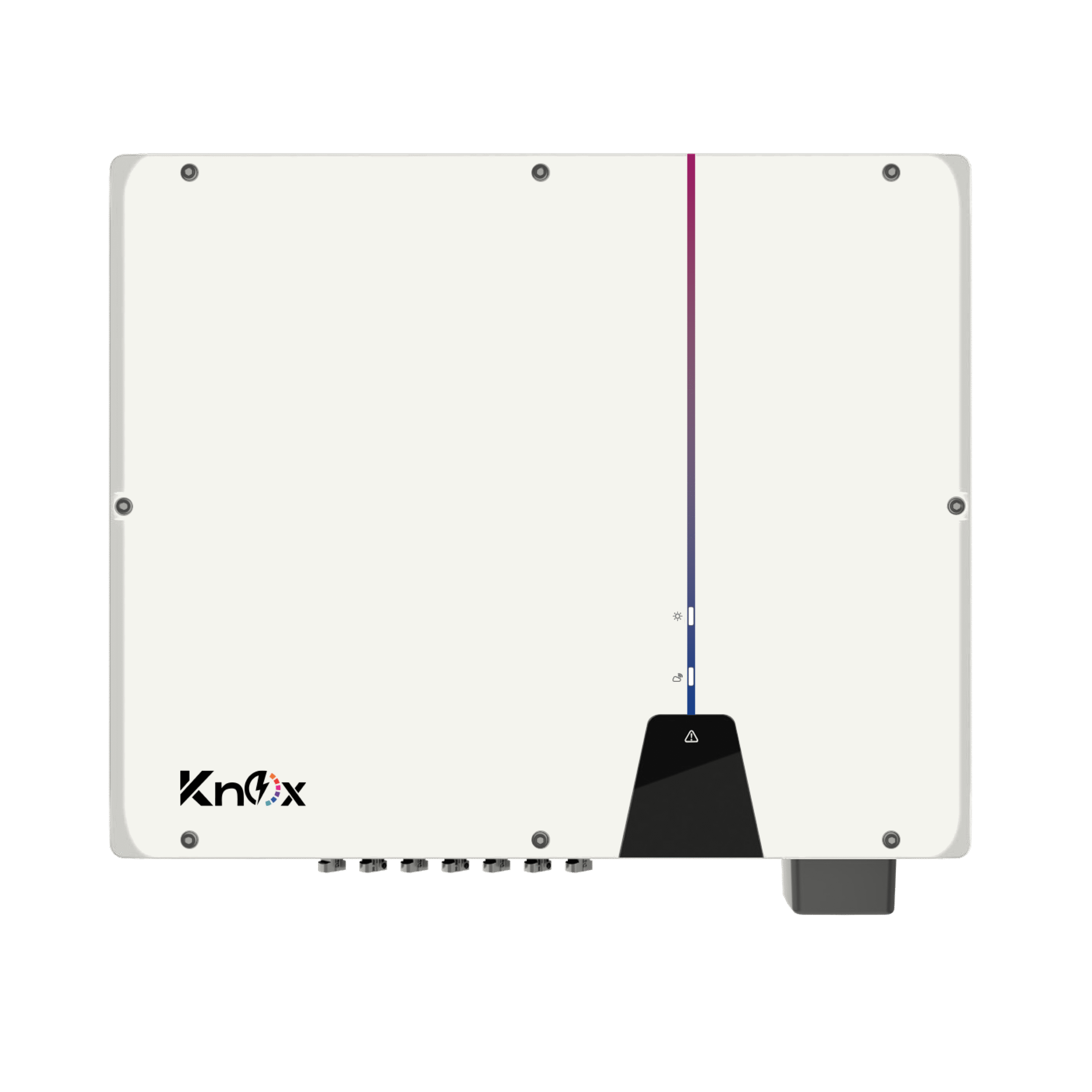

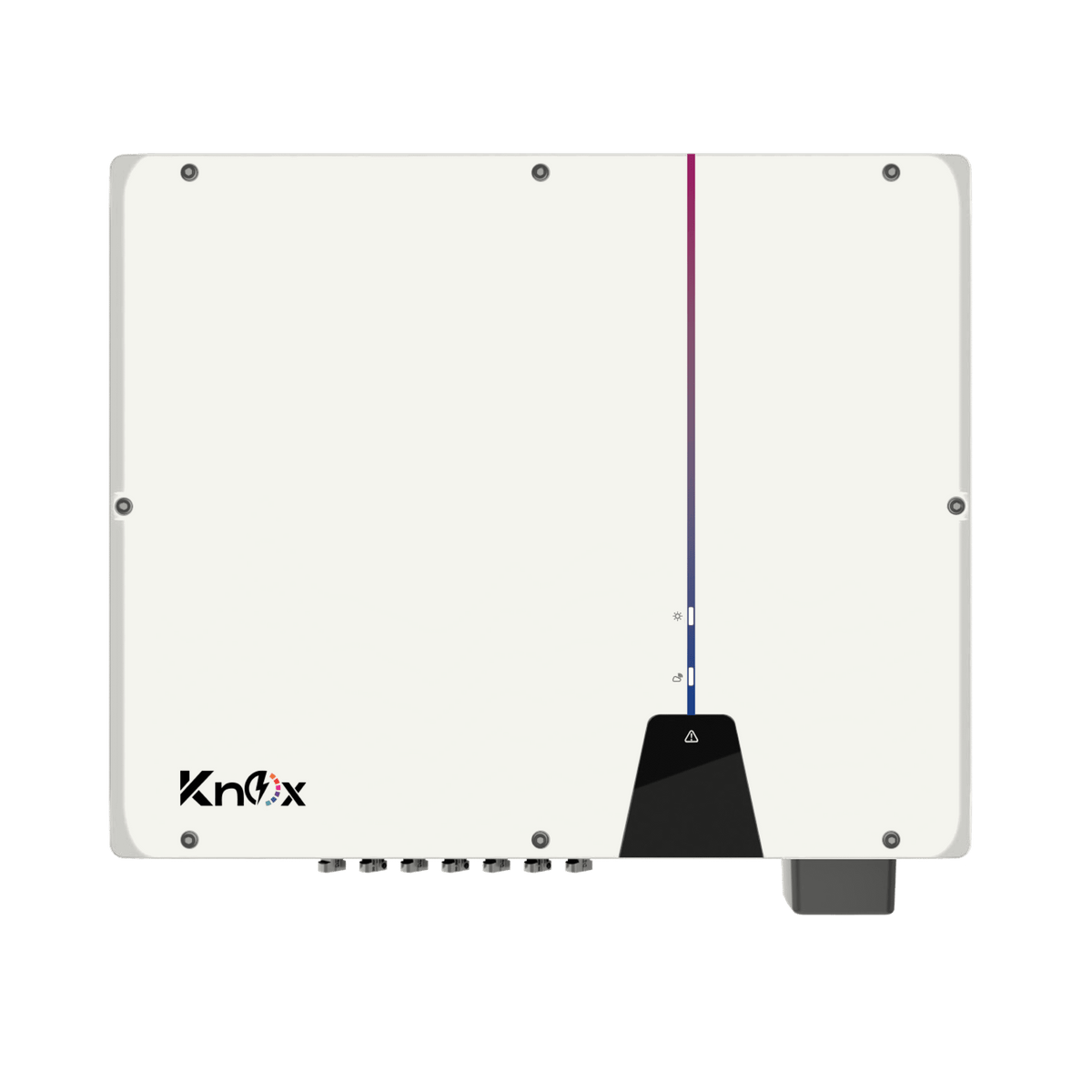

The Knox Xerox G4 Pro 40.5k/60kpV is a high-performance, three-phase on-grid solar inverter designed for commercial-scale installations. Here's a breakdown of its key features and specs that might interest you:
Features:
- IP66 Rating: Fully weatherproof for indoor/outdoor use
- Cooling: Active cooling system for thermal stability
- Protection Features:
- DC reverse polarity
- AC short circuit
- Surge protection
- Anti-islanding
- Residual current monitoring
- Ground fault monitoring
Smart Monitoring & Setup:
- App Integration: Ai Solar App for setup, commissioning, and real-time monitoring
- Communication Interfaces: RS485, Wi-Fi, LAN, 4G
- LED Indicators: Status, fault, and communication alerts
Design & Installation:
- Mounting: Wall-mount bracket
- Dimensions: 574 × 513.5 × 234.5 mm
- Weight: 29.5 kg
| Summary | |
| Output Current | 63.8 A |
| HARDWARE FEATURES | |
| Efficiency | Max 98.7%, European 98.3% |
| General Specification | |
| AC voltage range | 160 V – 300 V (Nominal: 230 V / 400 V) |
| MPP voltage range | 180 V – 1000 V |
| MPPT | 4 independent MPPTs for optimized energy harvest |
| PV Input Range | Up to 60,000 Wp (150% oversizing supported) |
| Rated AC Output Power | 40,500 W (40.5 kW) |
