Description
xFeatures:
- IP65 waterproof and dustproof makes the inverter available for various working conditions.
- Dual outputs, for smart load management
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Compatible to Utility Mains or generator input
- Parallel operation with 6 units
| General Specification | |
| Maximum PV Input Power | 22500 W |
| Operating Temperature | -25 to 60°C |
| Phase | Three Phase |
| Storage temperature | -15OC to 60OC |

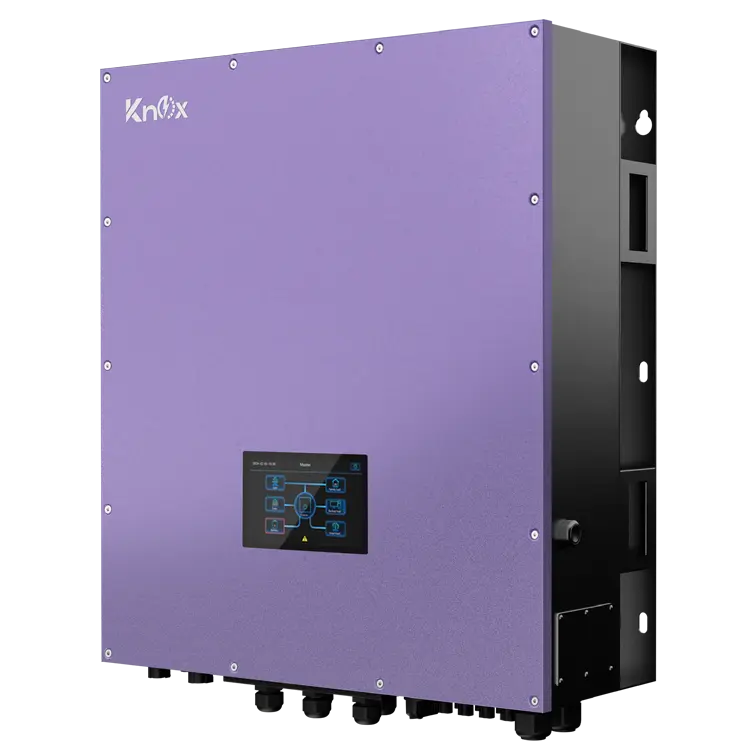

| Type | Hybrid Solar Inverter |
| Weight | 73 |
| Output Voltage | 220/230/240 VAC |
| Dimension | 255 x 660 x 750 mm |
