Description
xProduct Details:

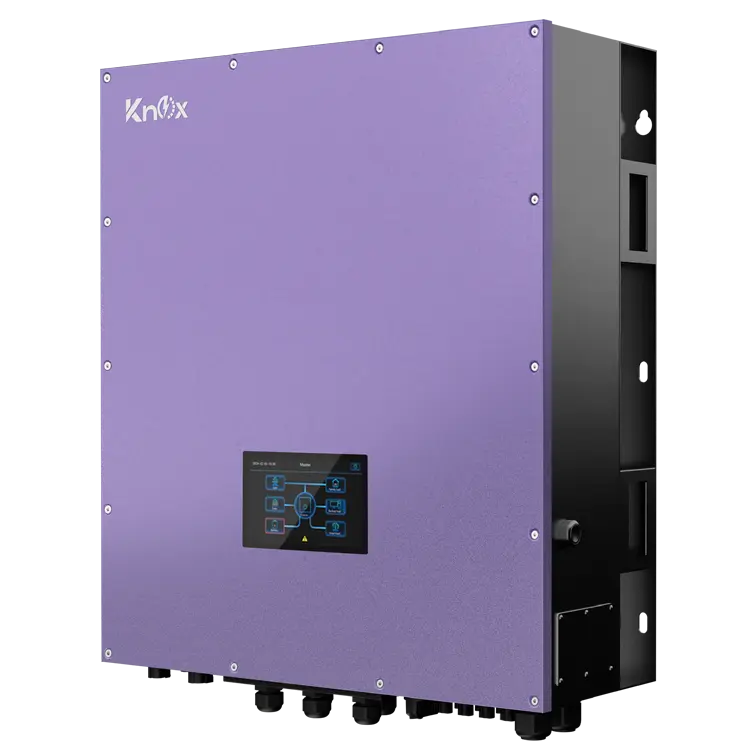

The Knox Xenon IP65 12kW PV18000 Hybrid Solar Inverter is a top-tier solution for large-scale residential or commercial solar setups in Pakistan. It builds on the strengths of the 16000W variant with enhanced PV input capacity and robust environmental protection.
Features:
- Battery-Independent Operation: Can run on solar + grid without batteries
- Built-in WiFi: Real-time monitoring via mobile app
- Communication Ports: RS-232, RS-485, CAN-BUS, USB
- AC/PV Output Timer: Customize energy usage by time-of-day
- Parallel Operation: Expandable up to 6 units
- BMS Integration: Seamless battery management
| HARDWARE FEATURES | |
| Battery Voltage | 48V DC |
| Efficiency | Up to 96% |
| Output | |
| Transfer Time | 10ms (PCs), 20ms (Home appliances) |
| TECHNICAL SPECIFICATION | |
| MPPT Voltage Range | 350V – 950V DC |
| Surge Power | Up to 24,000VA |
| General Specification | |
| AC Output Voltage | 220/230/240V AC |
| Max PV Input Power | 18,000W (150% oversizing supported) |
| MPPT | Dual MPPT (27A × 2) |
| Output Waveform | Pure sine wave |
| Rated Output Power | 12,000W (12kW) |
