xProduct Details:

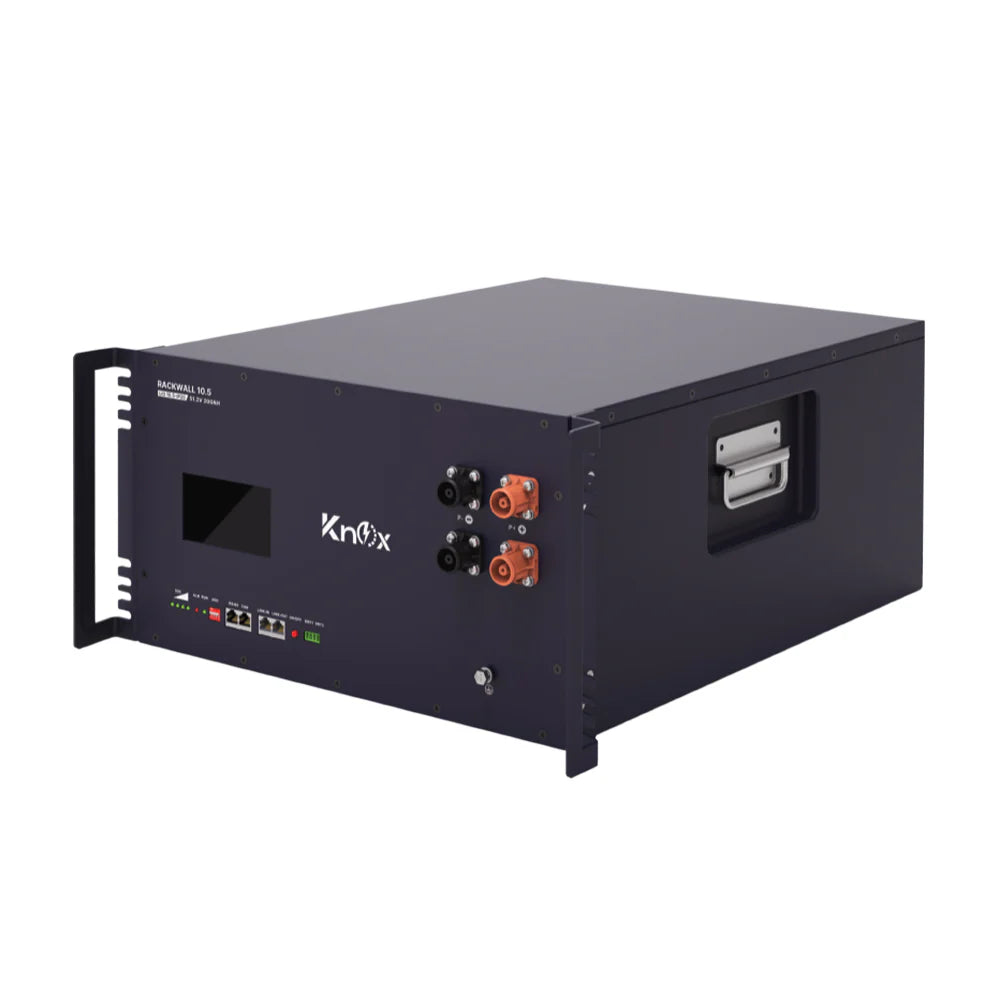

The Knox Rackwall 10.5 (Model LIO 10.5-IP20) is a 10.24kWh rack-mounted LiFePO4 lithium battery designed for commercial, industrial, and scalable residential solar energy storage. Featuring A-grade REPT prismatic cells, 1C charge/discharge capability, and an intelligent PACE BMS, it delivers reliable performance, long life, and maximum safety.
Features:
- 10.24kWh High-Density Energy Storage
- 1C Continuous Charge & Discharge Capability
- 4.3" Touch LCD (SOC, alarm, status display)
- Standard 19" Rack-Mounted Design
- Parallel Expansion up to 15 Units
- RS485 & CAN Communication with major inverters
Specifications
| Electrical Parameters | |
| Model | LIO 10.5-IP20 |
| Battery Type | LiFePO4 (LFP) |
| Cell Brand | REPT — A-Grade Prismatic |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Total Energy | 10.24kWh (10,240Wh) |
| Charging Voltage | 55.2 – 57.6V |
| End of Discharge Voltage | 44V |
| Max Charging Current | 200A |
| Max Discharging Current | 200A |
| Pulse Discharge Current | 240A @ 2s |
| C-Rate | 1C |
| Performance & Lifecycle | |
| Cycle Life | >6000 cycles @ 90% DOD |
| Designed Calendar Life | 10 Years |
| Parallel Support | Up to 15 units |
| Communication & Interface | |
| Communication | RS485, CAN |
| Display | 4.3" Touch HMI LCD |
| BMS Type | PACE Intelligent BMS |
| Environmental & Mechanical | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +55°C |
| Ingress Protection | IP20 |
| Mounting | 19" Rack-Mounted |
| Dimensions | 442 × 550 × 250 mm |
| Weight | 83.0 kg |
| Certifications | IEC 62619, UL 1973, UL 9540A, ROHS, UN38.3, MSDS, CE |
