Important: this is a 25.6V battery. Make sure your inverter supports 24V-class batteries before ordering.

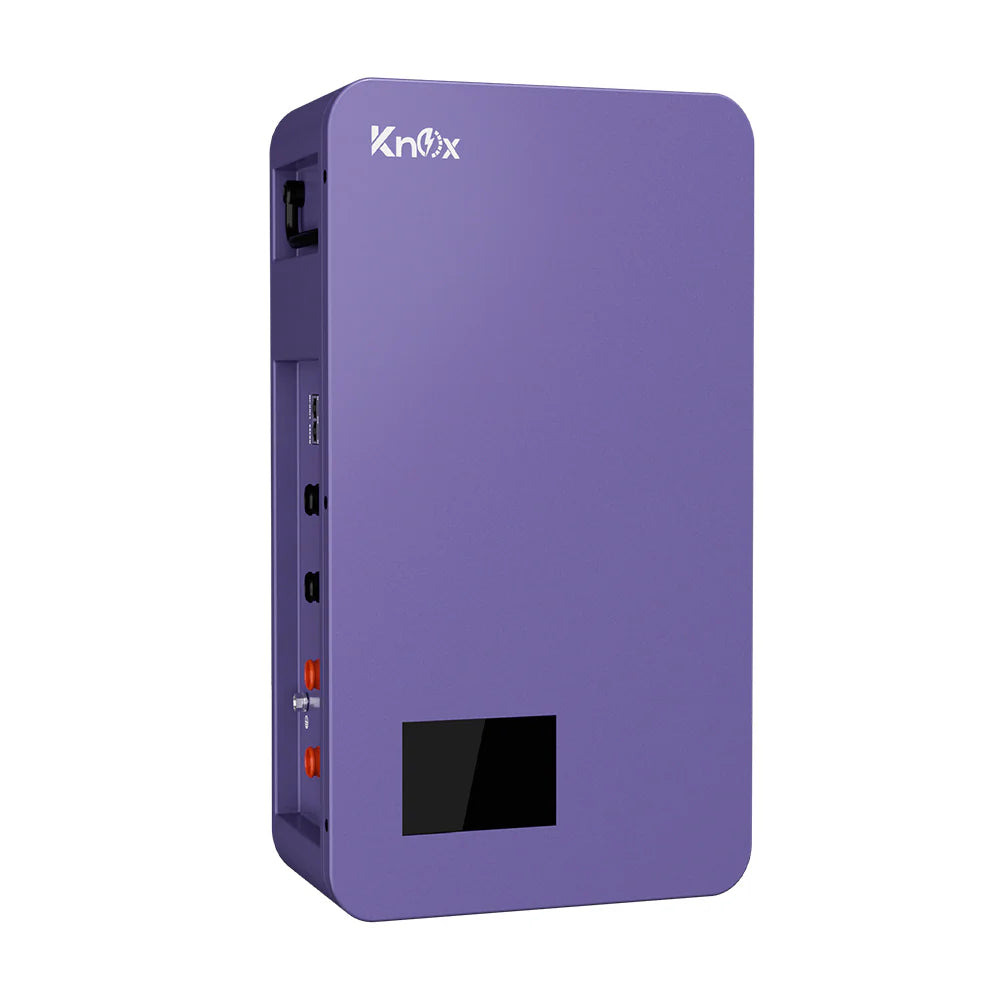

The Knox Powerwall 3.1 (Model LIO 2.66-IP20) is a wall-mounted 2.56kWh LiFePO4 battery for residential solar storage. It uses REPT prismatic cells and a PACE BMS, with a 4.3" touchscreen for monitoring and RS485 & CAN communication.
| Model | LIO 2.66-IP20 |
| Battery Type | LiFePO4 (prismatic cells, REPT) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Total Energy | 2.56kWh (2560Wh) |
| Charging Voltage | 27.6 – 28.8V |
| End of Discharge Voltage | 22V |
| Max Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Pulse Discharge Current | 120A @ 2s |
| Cycle Life | >6000 cycles (25°C, 0.5C, 80% DoD) |
| Designed Calendar Life | 10 Years |
| Warranty | 5 Years |
| BMS | PACE BMS |
| Communication | RS485, CAN |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +55°C |
| Ingress Protection | IP20 |
| Mounting | Wall-mounted |
| Dimensions (W × D × H) | 395 × 470 × 160 mm |
| Weight | 28.0 kg |
| Cell Certifications | IEC 62619, UL 1973, UL 9540A, RoHS |
| Battery Certifications | UN38.3, MSDS, CE |
