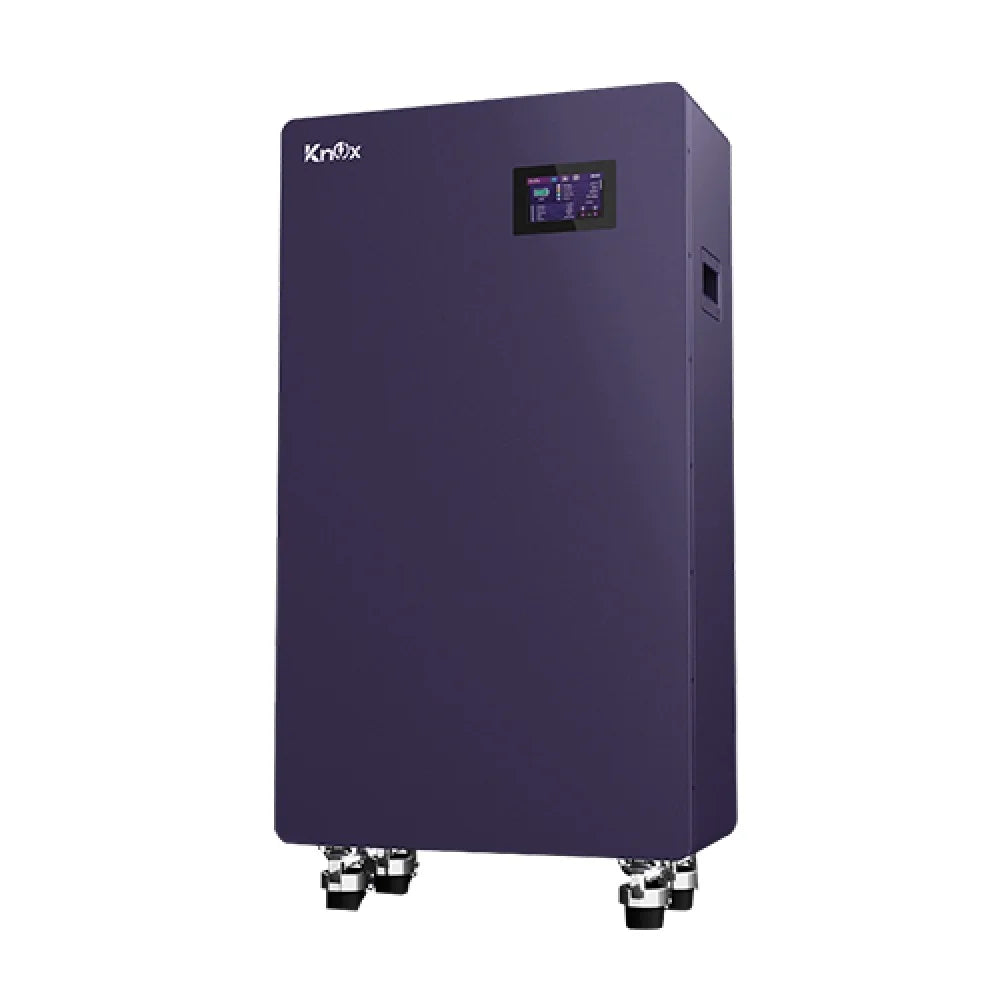

xPowerbase 16 - 51.2V 314Ah LiFePO4 Battery
Overview
The Powerbase 16 is a high-capacity Lithium Iron Phosphate (LiFePO4) battery built for reliable, long-term energy storage. With a 314Ah capacity and A-grade brand new prismatic LFP cells, it delivers safe, stable power backed by an intelligent BMS and an easy-to-read touchscreen display.
Key Features
- A-Grade Prismatic LFP Cells - Brand new cells with built-in cell balancing for consistent performance
- 8000+ Cycle Life - Built to last, with a 5-year manufacturer warranty
- PACE BMS Protection - Guards against overcharge, over-discharge, overheating, low temperature, overcurrent, and short circuits
- 4.3" HMI Touchscreen - Low power consumption, high brightness, and clear visibility from a distance
- Parallel Connection - Connect up to 8 units together for expanded capacity
- Metal Casing - Durable design with excellent heat dissipation for added safety
- Certified Safety - UN38.3 and MSDS certified
DATASHEET
Technical Specifications
| Electrical Parameters | |
| Battery Type | LiFePO4 (LFP) |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 314 Ah |
| Energy | 16,076 Wh (~16kWh) |
| Charge Cut-off Voltage | 57.6 V |
| Discharge Cut-off Voltage | 41.6 V |
| Open Circuit Voltage | 50.88 ~ 53.6 V |
| Max. Charge Current | 150 A |
| Max. Discharge Current | 150 A |
| Continuous Discharge Current | 200 A |
| Recommended Discharge Current | 150 A |
| Peak Discharge Current | 360 A (10s) |
| Charge/Discharge Rate | 0.6C |
| Performance | |
| Cycle Life | 8000+ cycles |
| Warranty | 5 years |
| Parallel Units | Up to 8 |
| Communication | RS485, RS232, CAN |
| Display | 4.3" HMI Touchscreen |
| Environmental Parameters | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +60°C |
| Relative Humidity | 60% ± 20% RH |
| Ingress Protection | IP20 |
| Mechanical Parameters | |
| Connection Terminal | Quick Plug |
| Dimensions (L x W x H) | 520 x 245 x 880 mm |
| Weight | 119.5 kg |
| Certificates | UN38.3, MSDS |
