Description
xProduct Details:

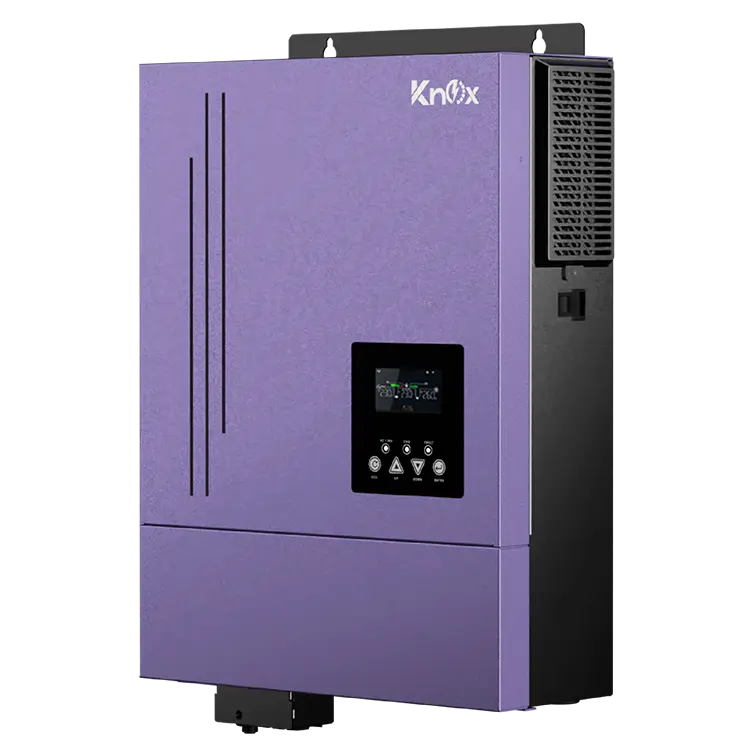

The Knox Krypton ECO 6.2kW PV6600 On-Grid Solar Inverter is a high-efficiency, hybrid solar inverter designed for residential and commercial applications. It combines advanced features with durability to provide reliable solar energy solutions.
Features:
- Pure sine wave solar inverter
- Reserved communication port for BMS
- Wide PV input range
- Advanced 18A PV controller
- Battery independent design
- Maximum charging current 100A
- Built-in anti-dust kit
- Feed into grid
- Battery equalization function to optimize battery performance and extend lifecycle
- Battery management system
Documents:
Knox Krypton ECO 6.2kW PV6600 On Grid Solar Inverter Datasheet.pdf
| Summary | |
| Voltage range | 184 - 264 or 195.5 - 253 VAC |
| Output Power | 6200W |
| HARDWARE FEATURES | |
| Battery Voltage | 48VDC |
| Efficiency | 93% |
| Operating Voltage | 90~450VDC |
| Output | |
| Transfer Time | 10ms (ForPersonalComputers);20ms (ForHomeAppliances) |
| TECHNICAL SPECIFICATION | |
| Array Power | 6600W |
| Rated Current | 18A |
| Rated Power | 6600VA/6600W |
| Surge Power | 18000VA |
| General Specification | |
| AC Voltage | 230VAC ±5% |
| Battery | 5000W |
| Charge Current | 120A |
| Charger Type | M PPT |
| Circuit voltage | 500VDC |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| Model | 6.2kW-48-pV6600-TWIN |
| Overcharge Protection | 63VDC |
| Voltage | 230 VAC |
| Waveform | Pure sine wave |
| Weight | 10.4 kg |
| Dimension | 115x300x435 mm |
