xProduct Details:

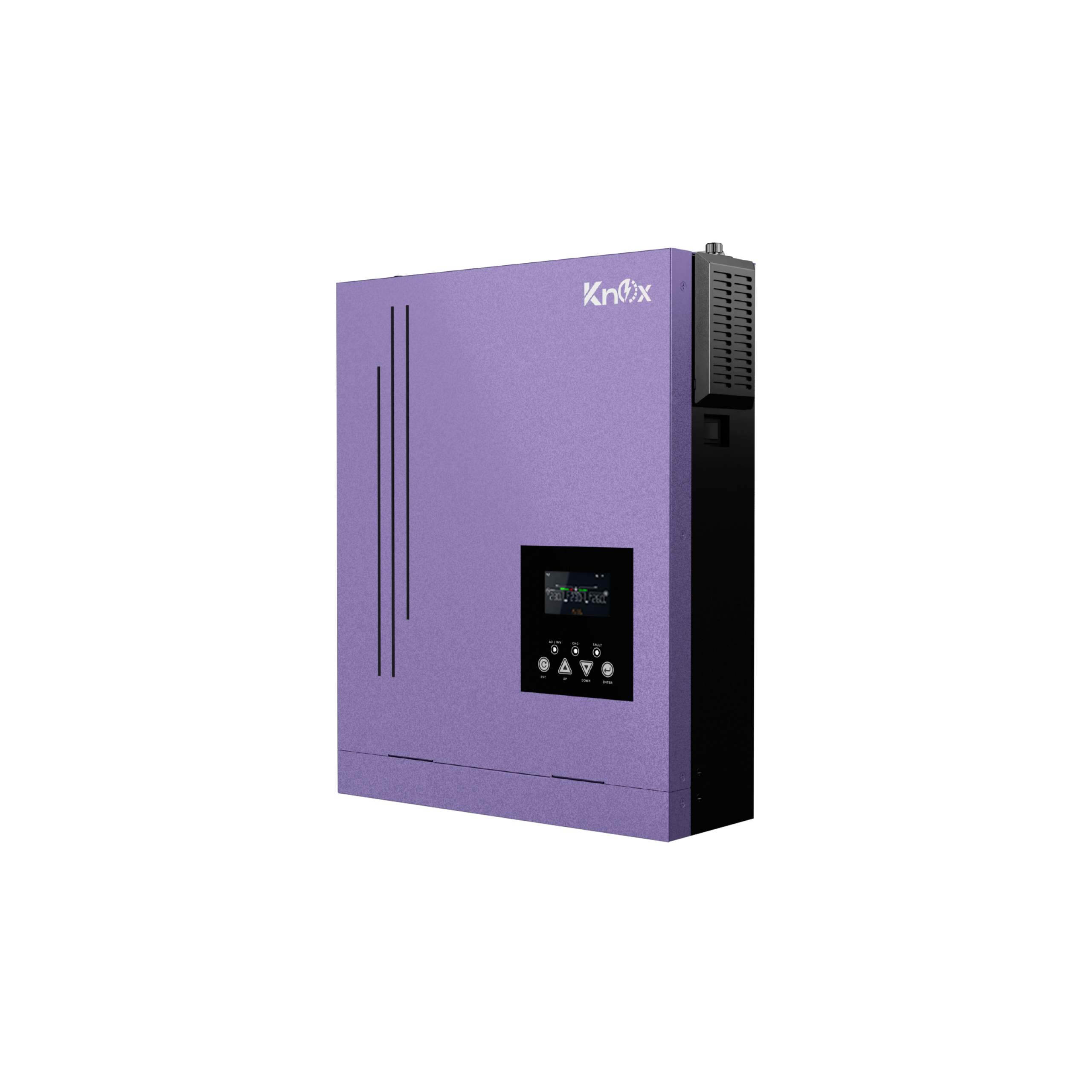

The KNOX Krypton ECO-4000 is a 3kW hybrid solar inverter that supports a 24 VDC battery system and can also operate without a battery. It is an original equipment manufacturer (OEM) product from Voltronic Power of Taiwan, which is branded and sold by KNOX.
Features:
- Hybrid Functionality: Serves as a hybrid inverter, combining the functions of an off-grid inverter and a grid-tied inverter.
- Battery Management System (BMS): Includes an integrated BMS, which can help optimize performance and extend the lifespan of connected batteries.
- Intelligent Load Management: Optimizes energy usage by intelligently managing the power flow.
- Pure Sine Wave Output: Produces a clean power output, making it safe for sensitive electronics and appliances
| Summary | |
| Operating Voltage | 30 ~ 400 VDC |
| HARDWARE FEATURES | |
| Efficiency | Has a peak efficiency of 93% |
| Rated power | 4000 VA / 4000 W |
| TECHNICAL SPECIFICATION | |
| Surge Power | 6000 VA |
| General Specification | |
| Battery System | Works with a 24 VDC battery bank |
| Battery-less Operation | Capable of running directly from solar power or the grid without batteries |
| Charge Current | Maximum solar charge current is 80A, with an 80A maximum AC charge current for a combined maximum charge current of 80A |
| Circuit voltage | 450 VDC |
| Communication | Equipped with an RS232/RS485 communication interface, with an optional WiFi module available |
| MPPT | Uses Maximum Power Point Tracking (MPPT) technology for efficient solar charging |
| Output | Provides a pure sine wave output |
| PV Array Support | Supports up to 4000 W of solar panel power |
