xProduct Details:

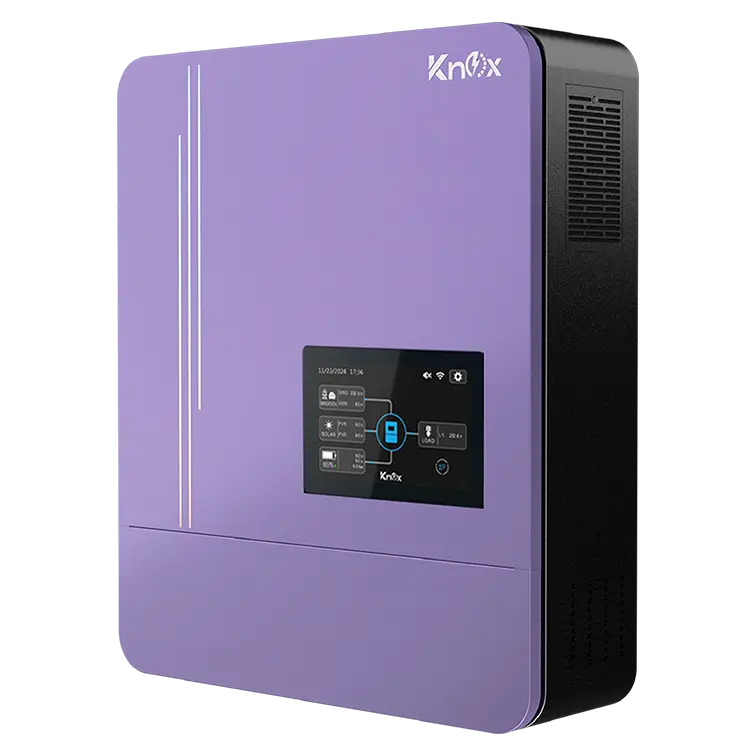

The Knox Krypton 8.5kW PV12002 Hybrid Solar Inverter is a high-performance, hybrid inverter designed for residential and commercial solar energy systems. It offers a combination of grid-tied and battery backup capabilities, ensuring continuous power supply and efficient energy management.
Features:
- Large HMI touchable screen
- Dual outputs, for smart load management
- Maximum PV input current increases to 30Ax2
- Wide PV input voltage range 90VDC ~ 450VDC
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- USB-A OTG firmware upgrades
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Built-in DC output for DC fan, LED bulb, router and so on.
- Parallel operation with 6 units
| Summary | |
| Voltage range | 170-280 VAC (For Personal Computers) 90- 280 VAC (ForHomeAppliances) |
| Power Factor | > 0.99 |
| Output Power | 8500 W |
| HARDWARE FEATURES | |
| Efficiency | 0.93 |
| Input Current | 30Ax 2 (MAX 45A) |
| Input Power | 12000 W |
| Output | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (ForHomeAppliances) |
| General Specification | |
| DC Voltage | 500 VDC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Humidity | 0 ~ 90% RH(No condensing) |
| Model | 8.5kW-48-pV12kW-TWIN |
| Operating Temperature | -10'C / 50'C |
| Weight | 18.4 kg |
| Dimension | 156.1 x 460 x 551.8 mm |
