Description
xProduct Details:

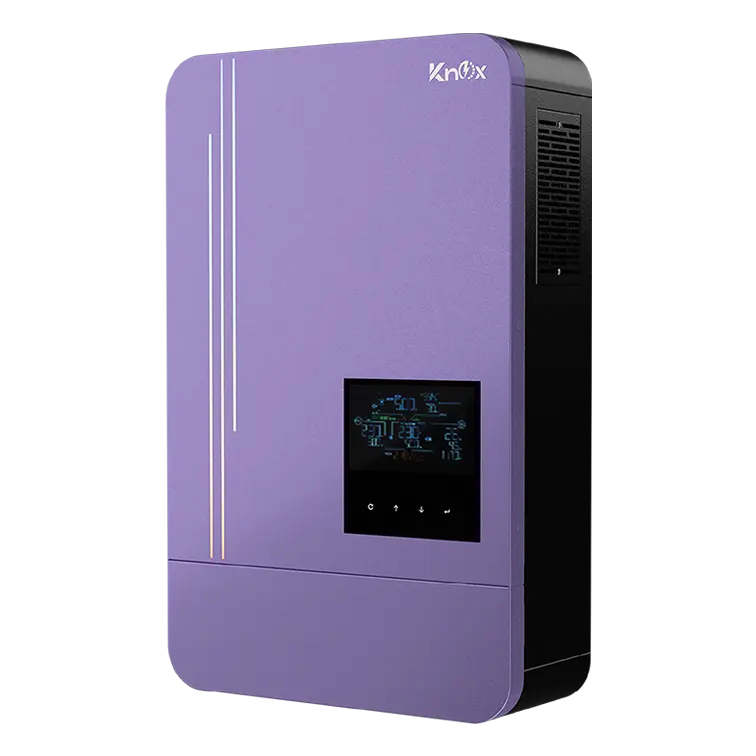

The Knox Krypton 6.5kW PV9055 Hybrid Solar Inverter is a high-performance, hybrid inverter designed for residential and commercial solar energy systems. It offers a combination of grid-tied and battery backup capabilities, ensuring continuous power supply and efficient energy management.
Features:
- Large HMI touchable screen
- Dual outputs, for smart load management
- Maximum PV input current increases to 22Ax2
- Wide PV input voltage range 90VDC ~ 450VDC
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- USB-A OTG firmware upgrades
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- CT function for self consumption (optional).
- Parallel operation with 9 units
| Summary | |
| Voltage range | 184 - 264.5 VAC or195.5 - 253 VAC (Selectable) |
| Power Factor | > 0.99 |
| Output Power | 8000 W |
| Output Current | 29.50A |
| HARDWARE FEATURES | |
| Efficiency | 93% |
| Input Current | 2x22A / Isc 2x30A |
| Input Power | 4500 W x 2 |
| Output | |
| Transfer Time | 10ms (For Personal Computers) ; 20ms (ForHomeAppliances) |
| General Specification | |
| DC Voltage | 48 VDC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Model | 6.5kW-48-pV9055-TWIN |
| Overcharge Protection | 65 VDC |
| Phase | Single Phase |
| Weight | 13.5 kg |
| Output Voltage | 220/230/240 VAC |
| Dimension | 140 x 295 x 468 mm |
