Description
xProduct Details:

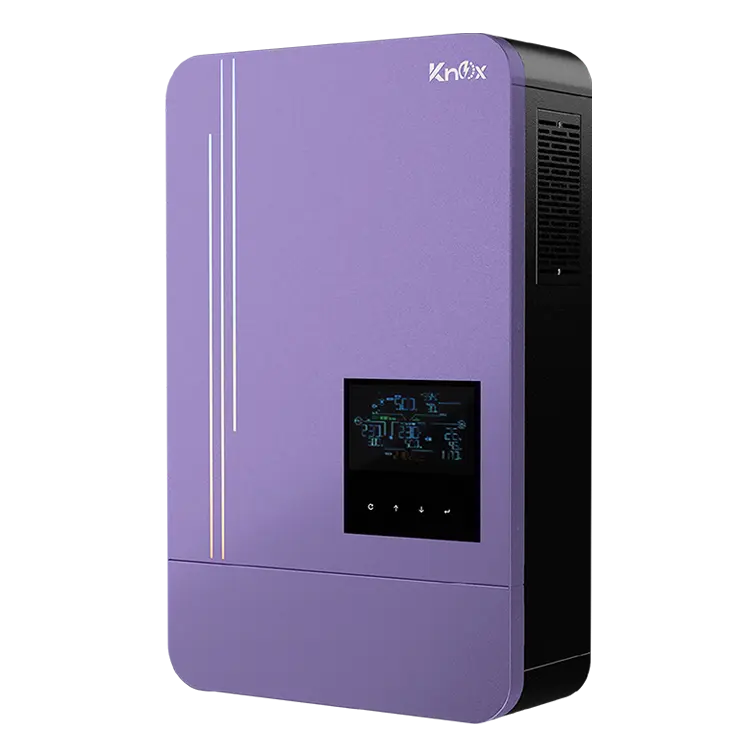

The Knox Krypton 4kW PV 6000 Hybrid Solar Inverter is a high-performance, hybrid inverter designed for residential and commercial solar energy systems. It offers a combination of grid-tied and battery backup capabilities, ensuring continuous power supply and efficient energy management.
Features:
- Dual outputs, for smart load management
- Maximum PV input current increases to 30A (Isc 40A)
- Wide PV input voltage range 90VDC ~ 450VDC.
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- USB-A OTG firmware upgrades
- Compatible to Utility Mains or generator input.
- Built-in anti-dust kit
Documents:
Knox Krypton 4kW PV 6000 Watt Hybrid Solar Inverter Datasheet.pdf
| Summary | |
| Voltage range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Output Power | 4000 W |
| HARDWARE FEATURES | |
| Efficiency | 93% |
| Input Current | 1x30A (MAX 40A) |
| Input Power | 6000 W |
| Output | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| General Specification | |
| DC Voltage | 500 VDC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Model | 4kW-24-pV6000-TWIN |
| Operating Temperature | -10°C to 50°C |
| Phase | Single Phase |
| Power factor | > 0.99 |
| Weight | 10 kg |
| Output Voltage | 220/230/240 VAC |
| Dimension | 119 x 313.6 x 457.5 mm |
