Description
xProduct Details:

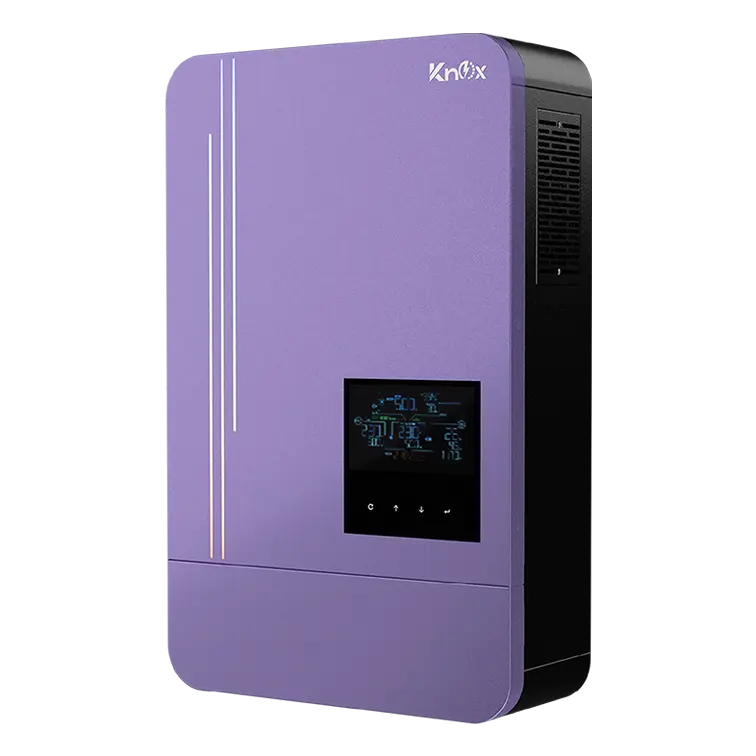

The Knox Krypton 4.5kW PV 6500 Watt Hybrid Solar Inverter is a high-performance energy solution designed for residential and commercial solar systems in Pakistan. This inverter combines advanced features with robust specifications to ensure efficient energy conversion and reliable operation.
Features:
- Rated Power: 4500VA/4500W
- DC Input: 24VDC , 208.4A
- AC Output: 230VAC , 50/60Hz , 19.5A
- Battery Output: 4500W
- AC Input: 230VAC , 50/60Hz , 30A
- DC Output: 27VDC , Max 100A
- Rated Output: 6500W
- Nominal Operating Voltage: 170VDC
- Max. Solar Voltage: 500VDC
- MPPT Voltage Range: 60 - 450VDC
- PV Max. Current: 40A
- Operating Voltage Range: -10 -+ 50'C
- Protection: IP21
Documents:
Knox Krypton 4.5kW PV 6500 Watt Hybrid Solar Inverter Datasheet.pdf
| Summary | |
| Voltage range | 60 - 450VDC |
| HARDWARE FEATURES | |
| Operating Voltage | 170VDC |
| Battery Output Voltage | 4500W |
| TECHNICAL SPECIFICATION | |
| AC Output | 230VAC , 50/60Hz , 19.5A |
| Rated Output | 6500W |
| Rated Power | 4500VA/4500W |
| General Specification | |
| AC input | 230VAC , 50/60Hz , 30A |
| Current | 40A |
| DC Input | 24VDC , 208.4A |
| Operating voltage range | -10 -+ 50'C |
| Protection | IP21 |
