Description
xProduct Details:

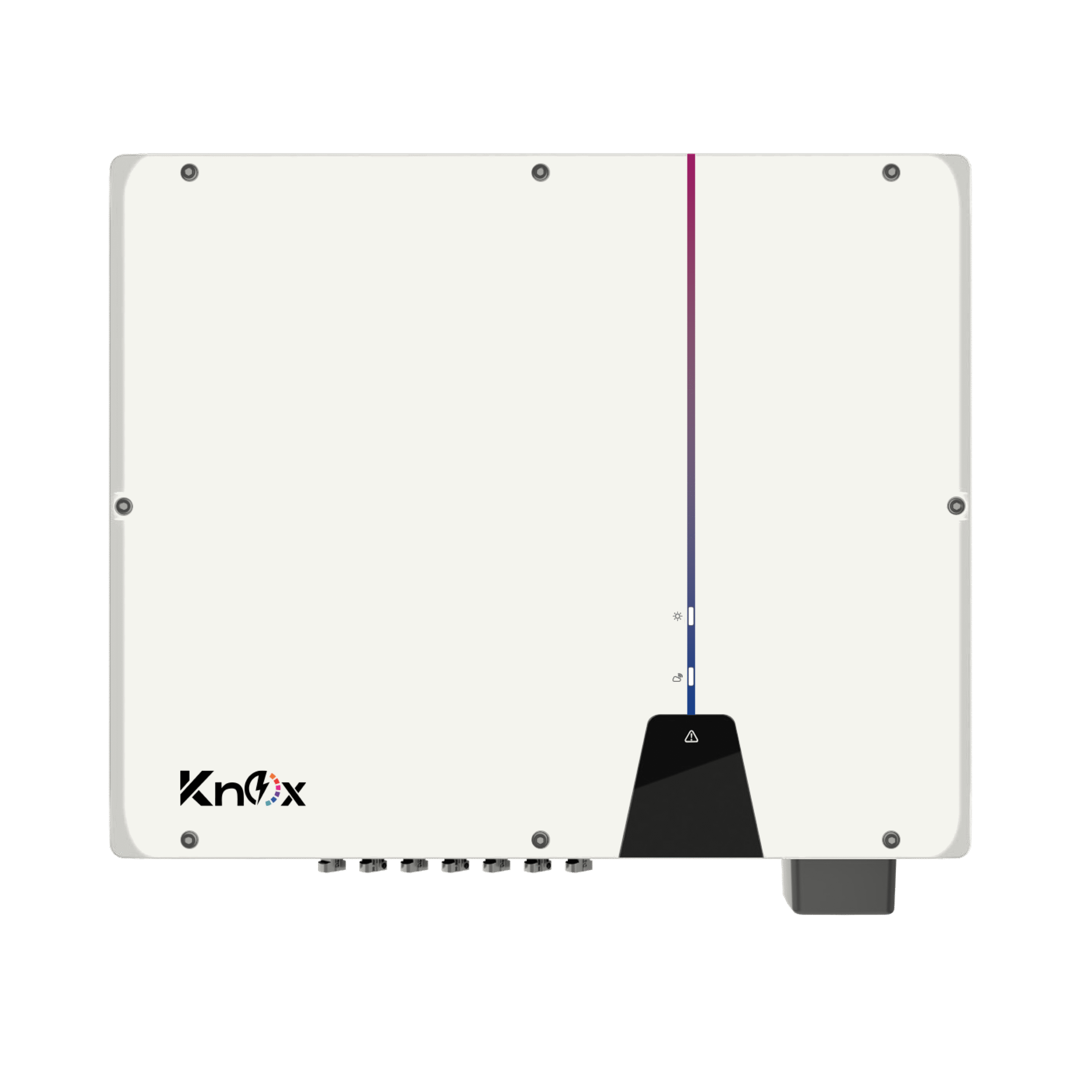

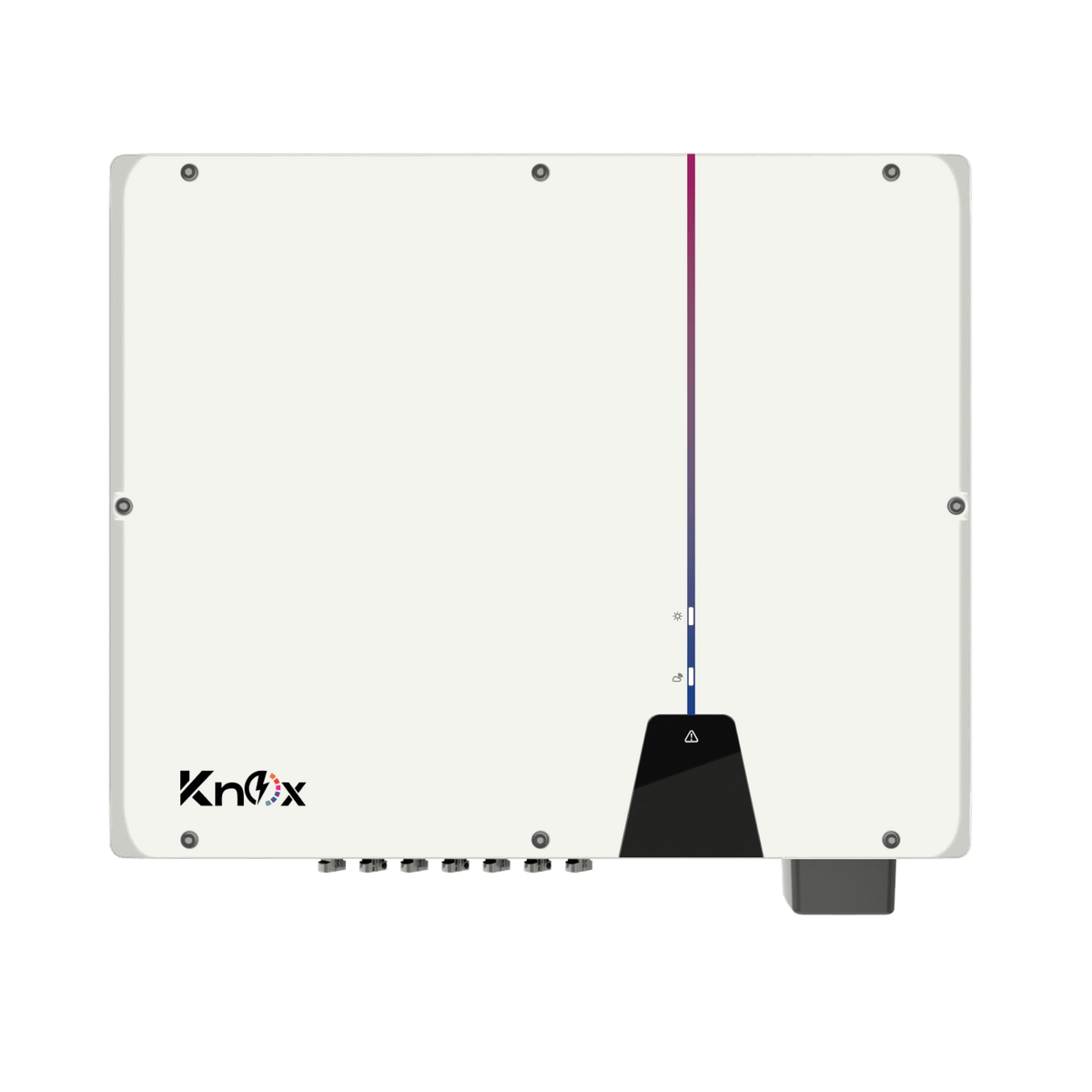

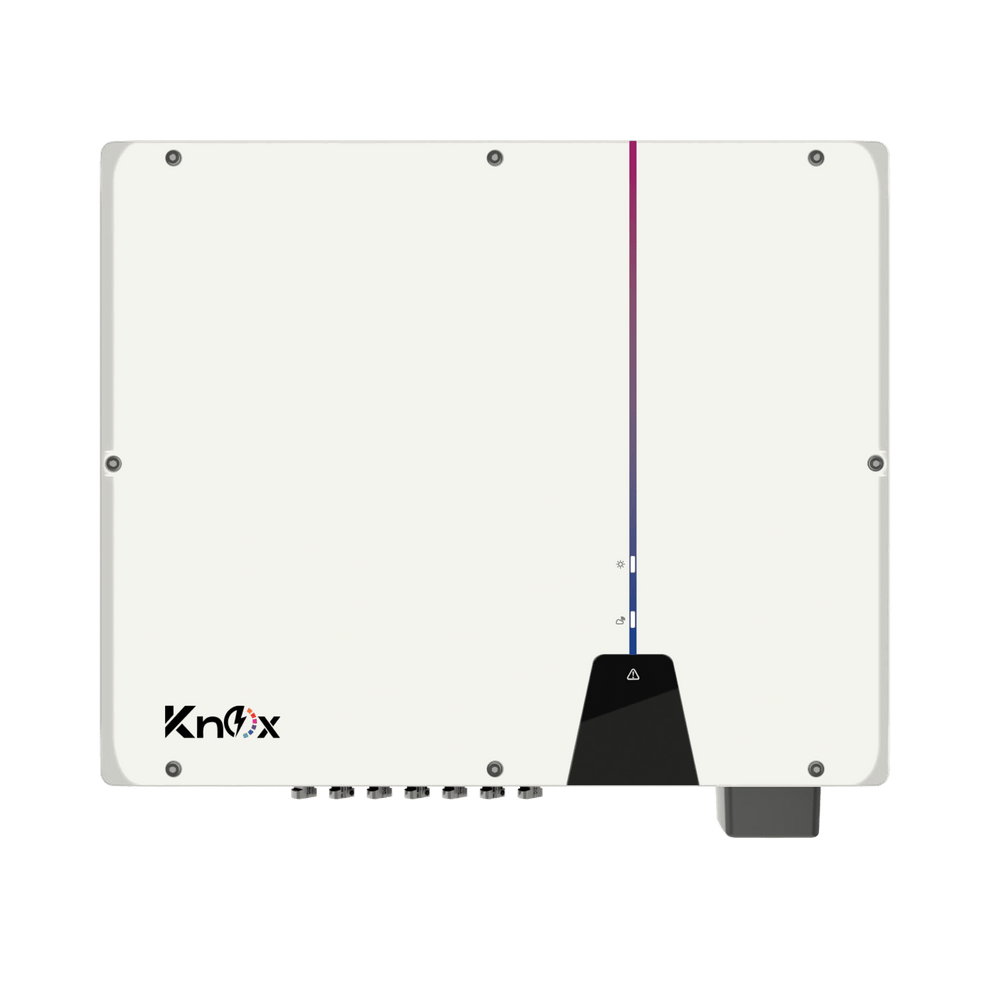

The Knox Xerox G4 Pro 50k/75kpV is a powerhouse three-phase on-grid solar inverter tailored for large-scale commercial and industrial setups. Here's a full breakdown of what makes it stand out:
Features:
- IP66 Rating: Fully weatherproof for indoor/outdoor use
- Protection Suite:
- DC reverse polarity
- AC short circuit
- Surge protection
- Anti-islanding
- Residual current monitoring
- Ground fault monitoring
- Cooling: Active cooling system for thermal stability
Smart Features
- Monitoring & Setup: Ai Solar App for commissioning and real-time tracking
- Communication Interfaces: RS485, Wi-Fi, LAN, 4G
- LED Indicators: Status, fault, and communication alerts
Design & Installation
- Mounting: Wall-mount bracket
- Dimensions: 574 × 513.5 × 234.5 mm
- Weight: 30.5 kg
- Self-Consumption at Night: < 1 W
| Frequency | |
| MPP Voltage range/ rated input voltage | 200 V to 1000 V / 630 V |
| HARDWARE FEATURES | |
| Rated power | 50000 W |
| Output | |
| Topology | Transformerless |
| TECHNICAL SPECIFICATION | |
| AC Connection | OT Connector |
| AC Nominal Voltage | 220 V / 380 V 230 V / 400 V |
| DC Connection | Phoenix Contact |
| General Specification | |
| AC voltage range | 180 to 305 V / 312 to 528 V |
| Operating Temperature Range | -25°C – +60°C |
| Phase | Three Phase |
| Type | Three Phase On Grid Solar Inverter |
| Weight | 43 kg |
| Input Voltage | 1100 V |
| Dimensions | 670 / 580 / 270 mm |
