xOVERVIEW:

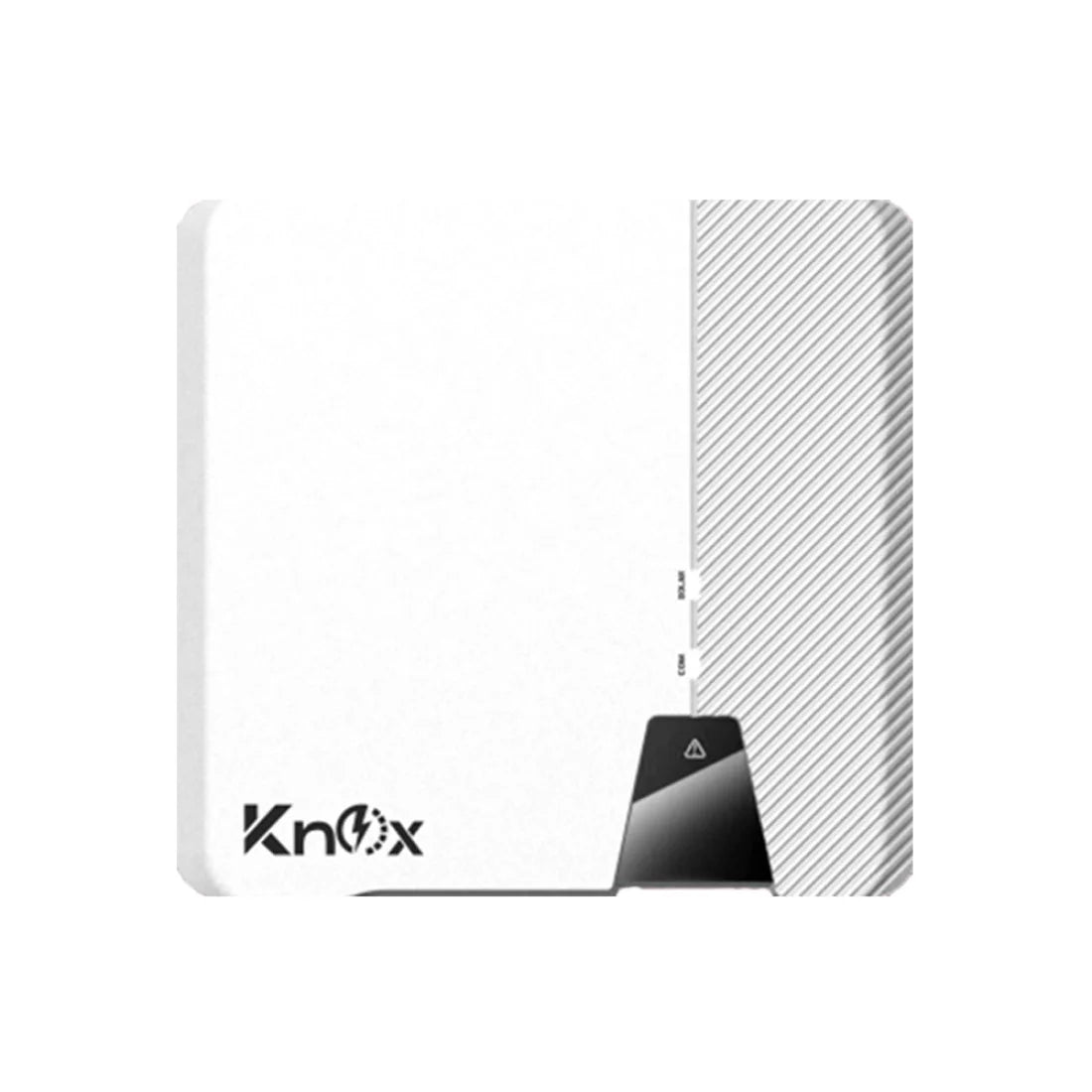

The Knox 12kW On Grid Solar Inverter (specifically the Knox ASW 12K LT-G2 model) is a high-efficiency, three-phase inverter with IP65 ingress protection and advanced monitoring features. It is designed for residential and commercial solar installations.
Features:
- High Conversion Efficiency: The inverter achieves a maximum efficiency of 98.6%, ensuring minimal power loss during DC-AC conversion.
- Durable Build: It is IP65-rated, making it suitable for outdoor installation and designed to withstand environmental factors.
- Smart Monitoring: Features Wi-Fi and RS485 communication interfaces for real-time system monitoring and remote management via a mobile application.
- MPPT Technology: Includes two independent Maximum Power Point Tracking (MPPT) inputs to maximize solar energy harvest even under variable sunlight conditions.
- Transformerless Topology: The design is transformerless, which contributes to its high efficiency and compact size.
| Frequency | |
| MPP Voltage range/ rated input voltage | 150 v to 1000 v / 630 v |
| INPUT | |
| Rated grid frequency / rated grid voltage | 50 HZ / 230 V |
| Output | |
| Topology | Transformerless |
| TECHNICAL SPECIFICATION | |
| Operating Altitude | 3000 M |
| Rated Power | 12000 VA |
| General Specification | |
| Dimensions | 503/ 435/ 183 MM |
| Operating Temperature Range | -25 C -+60 C |
| Protection Class | I/AC: III; DC: II |
| Self Consumption | <1W |
| Type | Three Phase On Grid Solar Inverter |
| Weight | 17.3 KG |
| Input Voltage | 125 v |
