xProduct Details:

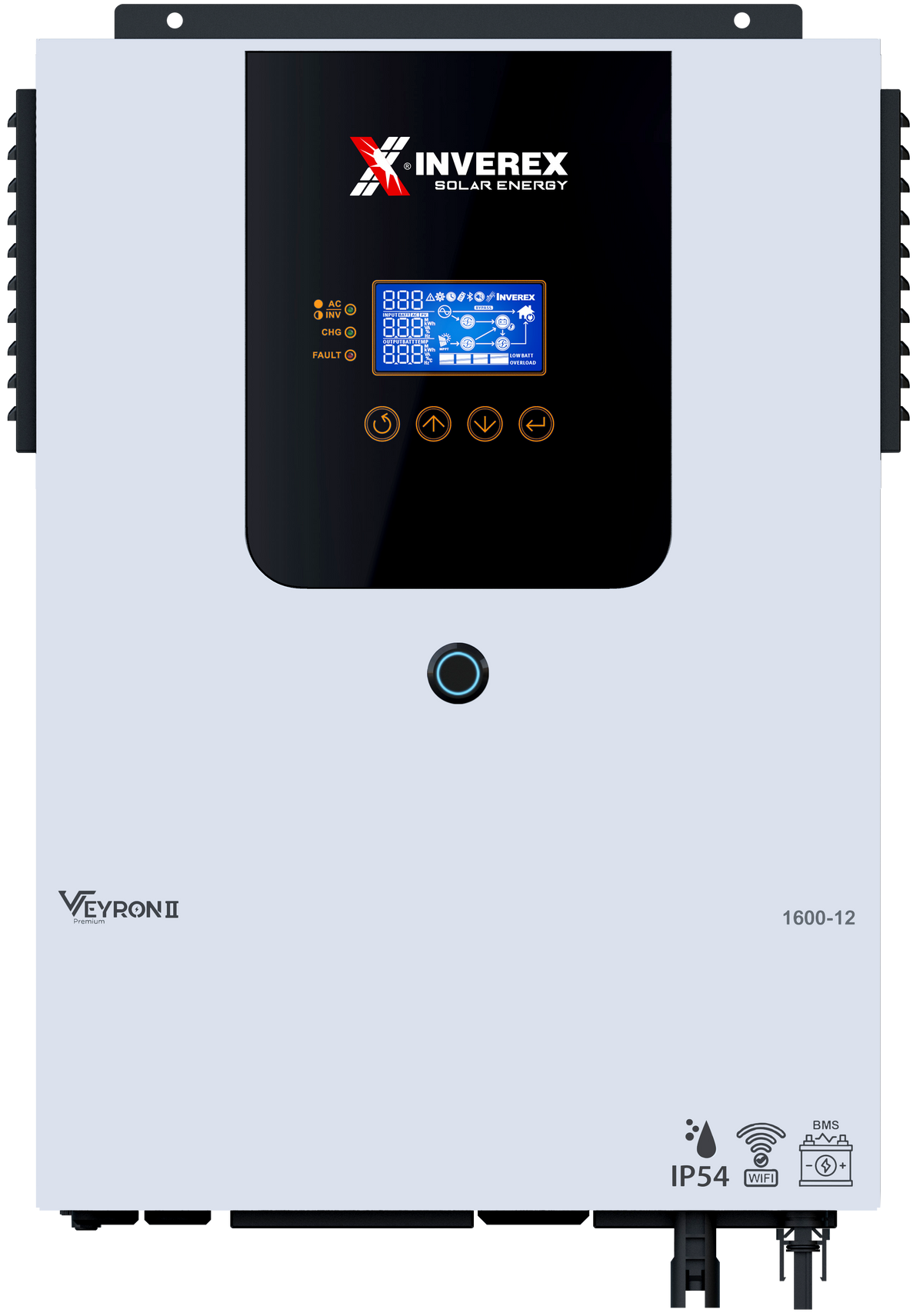

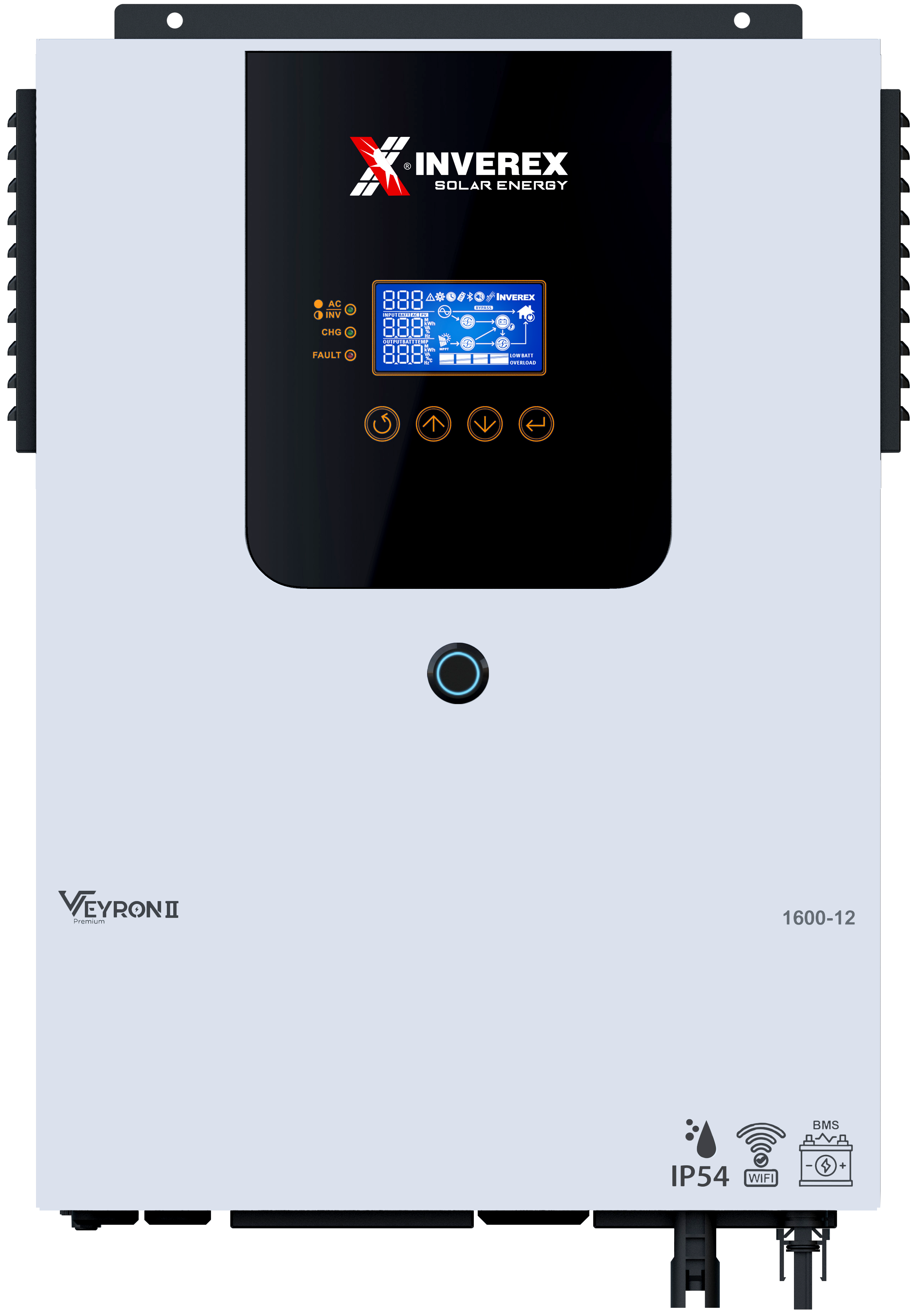

The Inverex Veyron II Premium MPPT Solar Inverter offers dual power options and advanced technology for reliable solar energy solutions suitable for residential and commercial use.
Features:
- Dual Power Options: Available in 1600W (12V) and 2600W (24V) models to suit varying power needs.
- Built-in Wi-Fi for Remote Monitoring: Monitor and manage performance from anywhere via the mobile app.
- Battery-Free Operation: Operates without a battery, ideal for cost-effective setups or emergency backup.
- Smart MPPT Technology: Maximum Power Point Tracking ensures up to 93% peak efficiency.
- Wide PV Input Range (30–400VDC): Supports a broad range of solar panel configurations, with low-voltage start at 30VDC.
- High Charging Capacity: Solar charge current up to 100A and AC charge current up to 80A for fast charging.
- Enhanced Battery Management: Battery equalization function to extend battery life and performance.
- Advanced Communication Options: Includes RS232/RS485/CAN/Wi-Fi & BMS compatibility.
- Rugged & Reliable (IP54 Rated): Dust and water-resistant design suitable for harsh environments.
- Pure Sine Wave Output: Clean, stable power delivery for sensitive electronics and appliances.
- Fast Transfer Time: 10ms (computers) / 20ms (home appliances) seamless switchover during power outages.
Documents:
| POWER | |
| Charge Voltage | 27 VDC |
| Summary | |
| communication interface | RS232/RS485/CAN/Wi-Fi |
| Voltage range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Output Power | 2600W with PV & battery 2500W with battery only |
| HARDWARE FEATURES | |
| Battery Voltage | 24 VDC |
| Efficiency | 93% |
| Operating Voltage | 30~400 VDC (30~ 60VDC with battery connected) |
| Output | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| TECHNICAL SPECIFICATION | |
| Rated Power | 2600VA/2600W |
| Surge Power | 5200VA |
| General Specification | |
| AC Voltage | 230VAC ± 5% |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Overcharge Protection | 32 VDC |
| Voltage | 230 VAC |
| Waveform | Pure sine wave |
| Weight | 9.8 kg |
| Dimension | 117.4x323.8x460.4 mm |
