xProduct Details:

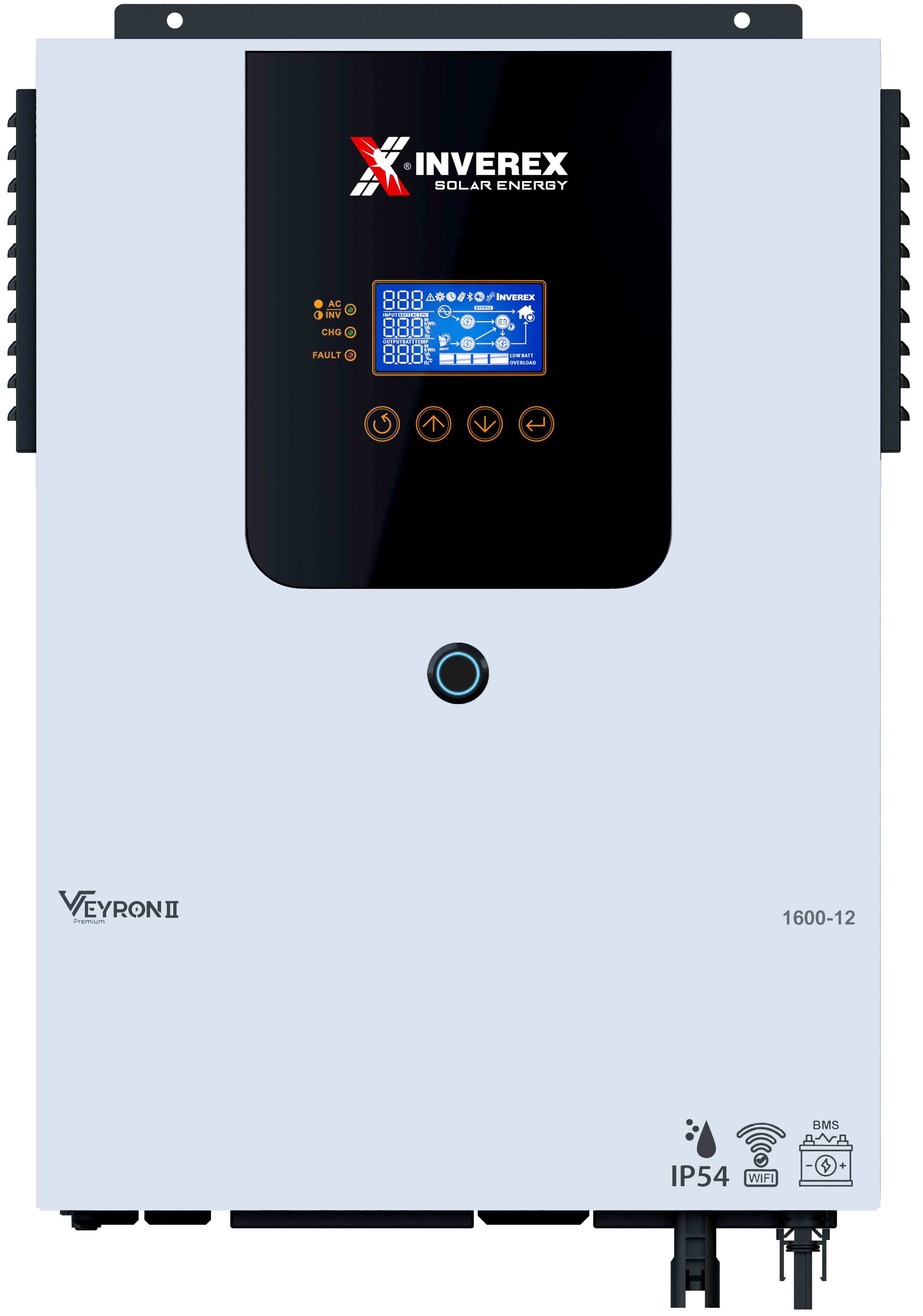

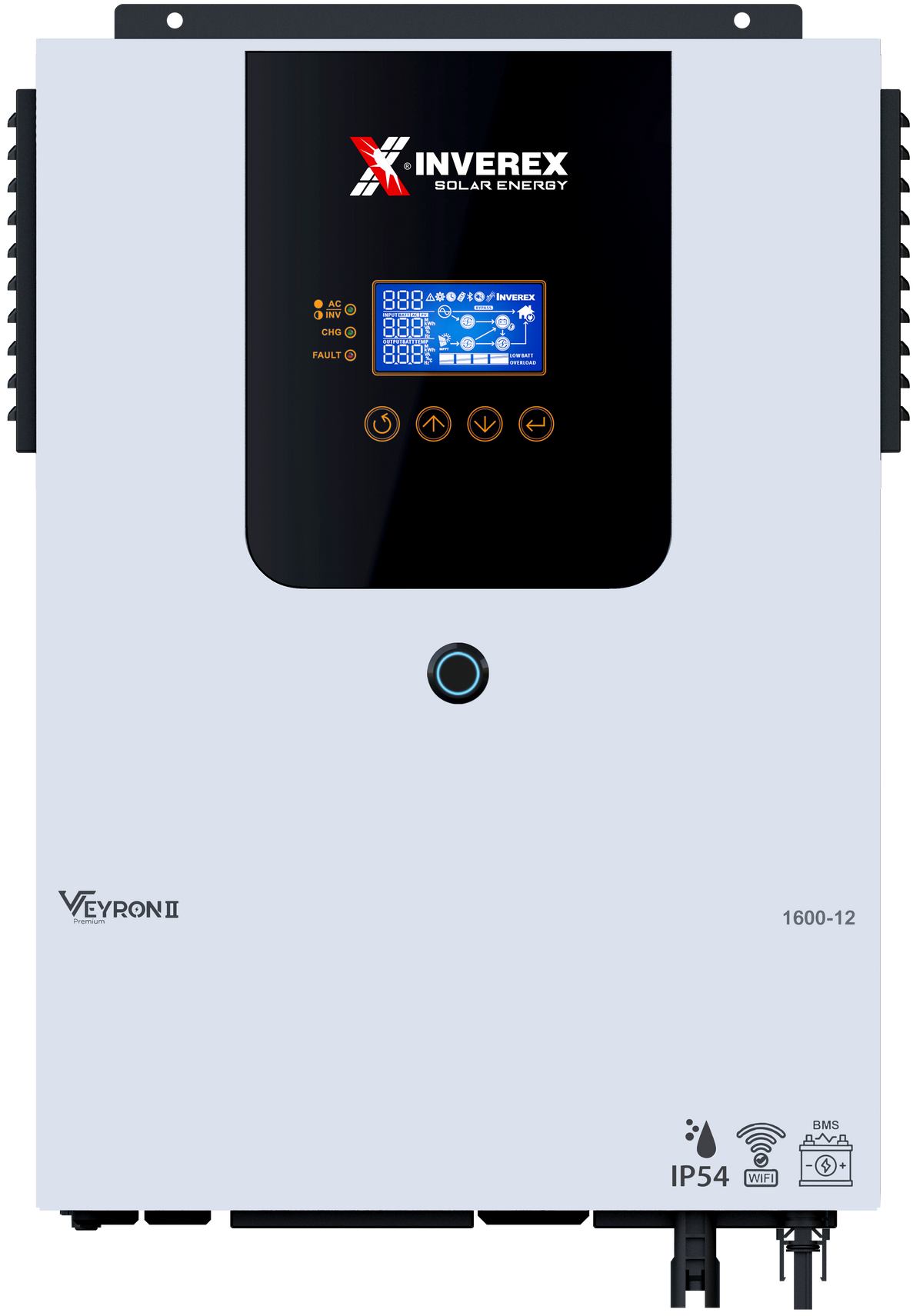

The Inverex Veyron II Premium MPPT Solar Inverter is a robust and highly efficient solar solution ideal for both residential and small commercial use. It offers dual models (1600W-12V and 2600W-24V) and works seamlessly with or without batteries.
Features:
- Built-in WiFi: Remote monitoring capabilities for enhanced control.
- Battery-Less Operation: Functions independently without requiring battery connection.
- Wide PV Input Range: Operates efficiently from 30VDC and above.
- User-Friendly LCD: Easy-to-navigate display interface.
- Battery Equalization: Maintains battery health and extends lifespan.
- Max Solar Charging Current: Up to 100A for faster charging.
- MPPT Input Current: Supports up to 20A for better efficiency.
- BMS Communication: Built-in port to communicate with Battery Management Systems.
- Full Power Output: Utilizes 100% of inverter capacity with maximum PV array connection.
- IP54 Rating: Dust and water-resistant for durability in harsh environments.
| POWER | |
| Charge Voltage | 13.5 VDC |
| Summary | |
| communication interface | RS232/RS485/CAN/Wi-Fi |
| Voltage range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Output Power | 1600W with PV & battery 1200W with battery only |
| HARDWARE FEATURES | |
| Battery Voltage | 12 VDC |
| Efficiency | 93% |
| Output | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| TECHNICAL SPECIFICATION | |
| Rated Power | 1600VA/1600W |
| Surge Power | 3200VA |
| General Specification | |
| AC Voltage | 230VAC ± 5% |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Overcharge Protection | 16 VDC |
| Voltage | 230 VAC |
| Waveform | Pure sine wave |
| Weight | 9.1 kg |
| Dimension | 117.4x323.8x460.4 mm |
