Description
xFeatures:
- Dual Output Option with 6000W Inverter.
- Auto Synchronization with Inverex Lithium Battery.
- With Grid-Tie / Net Metering Options.
- No Zero Export Device is Required.
- Optional Parallel Kit ( Upto 9 Units )
- Works Without Battery Directly On Solar.
- Built-in MPPT Solar Charger Upto 6500 Watts (120 Amp).
- Built-in Anti-Dust Kit For Dust Protection.
- Communication Port For BMS Through (RS485, CAN-BUS, RS232).
- Conformal Coating For PCB Protection From Humidity.
- Built-In BMS & SOC-based Battery Control.
| HARDWARE FEATURES | |
| Efficiency | 90 % |
| TECHNICAL SPECIFICATION | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Rated Power | 6000 W |
| General Specification | |
| Frequency | 50Hz / 60Hz (Auto Sensing) |
| Net Weight | 11.0 Kgs |
| Phase | Single Phase |
| Solar Charger Type | MPPT |

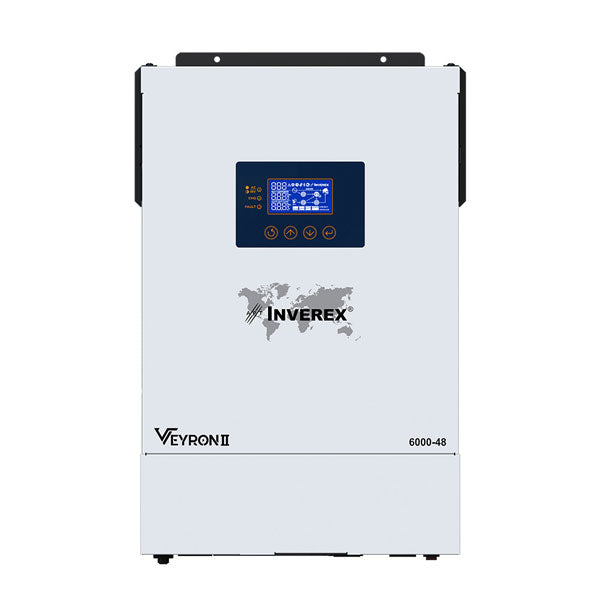

| Type | 6000W-48V MPPT Solar Inverter |
| Voltage | 230 VAC |
| Wave form | Pure Sine Wave |
| Dimension | 140 x 295 x 468 D W H |
