xProduct Details:

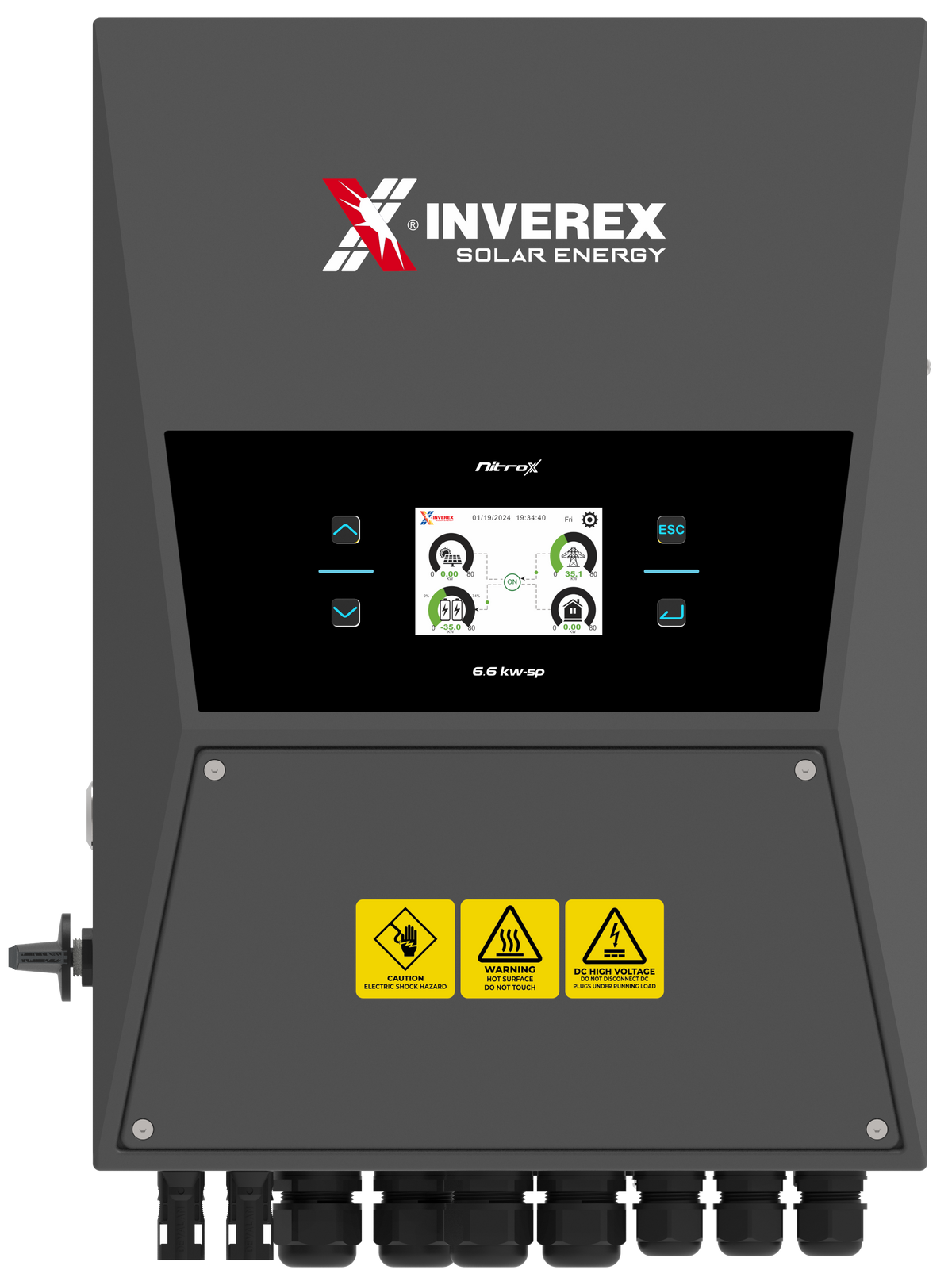

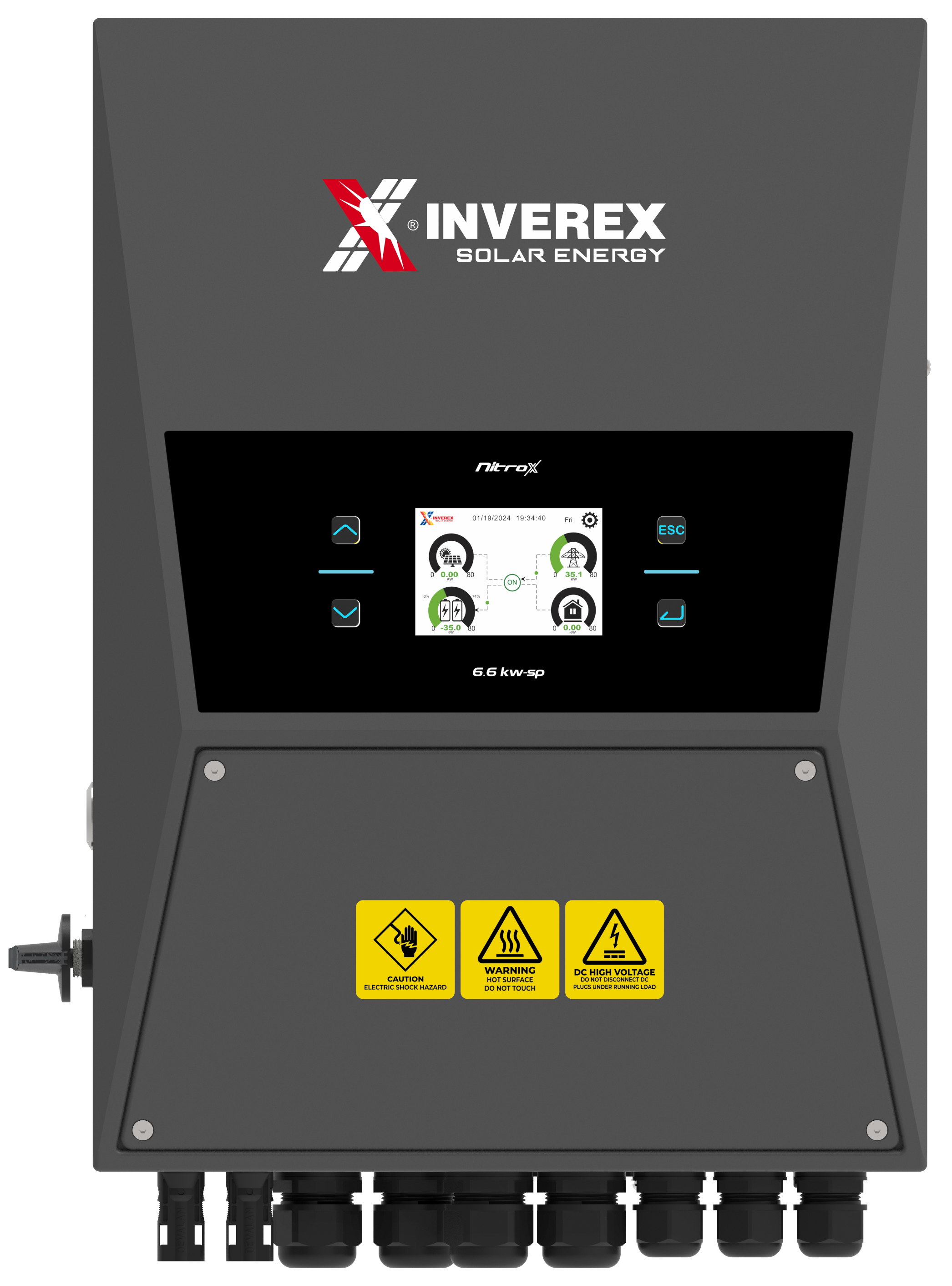

The NitroX 6.6KW SP Hybrid Inverter is a powerhouse for modern solar systems. Built to handle high solar input and smart energy management, it’s ideal for hybrid homes and businesses demanding top performance and reliability.
Features:
- 10.5KW PV Input: Wide 150–425VDC MPPT for max energy capture
- Dual MPPTs: Independent strings (2/1+1) for efficient tracking
- 140A Charge/Discharge: Fast cycles, perfect for large systems
- Parallel Ready: Stack up to 16 units, both on-grid & off-grid
- Touch LCD + IP65: Vibrant screen in weatherproof casing
- AC Coupling: Retrofit-friendly for system upgrades
- Time-Based Battery Mode: 6 customizable time slots for charging/discharging
- Generator Support: Stores DG energy for hybrid setups
- Silent Operation: Under 30 dB noise, suitable for indoor use
- Air Cooling: Smart thermal control from -40°C to +60°C
- Advanced Protections: Overcurrent, islanding, surge, fault detection
- High Efficiency: 97.6% peak efficiency with <0.5% DC ripple
- Smart Communication: RS485/RS232/CAN + optional WiFi/4G
- 5-Year Warranty: Backed by trusted Inverex support
| Summary | |
| communication interface | RS485/RS232/CAN |
| Voltage range | 40-60 V |
| HARDWARE FEATURES | |
| Charging Current | 140 A |
| Efficiency | 97.6% |
| Input Power | 10560 W |
| TECHNICAL SPECIFICATION | |
| Discharge Current | 140 A |
| General Specification | |
| Battery Type | Lead-acid or Lithium-ion |
| Integrated Connections | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, toring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Noise | <30 |
| Operating Temperature Range | -40 to +60°C, >45°C Derating |
| Protection | IP 65 |
| Size | 340×470×258 (Excluding Connectors and Brackets) |
| Surge Protection | TYPE II(DC), TYPE II(AC) |
| Weight | 17.35 |
| Input Voltage | 500 V |
