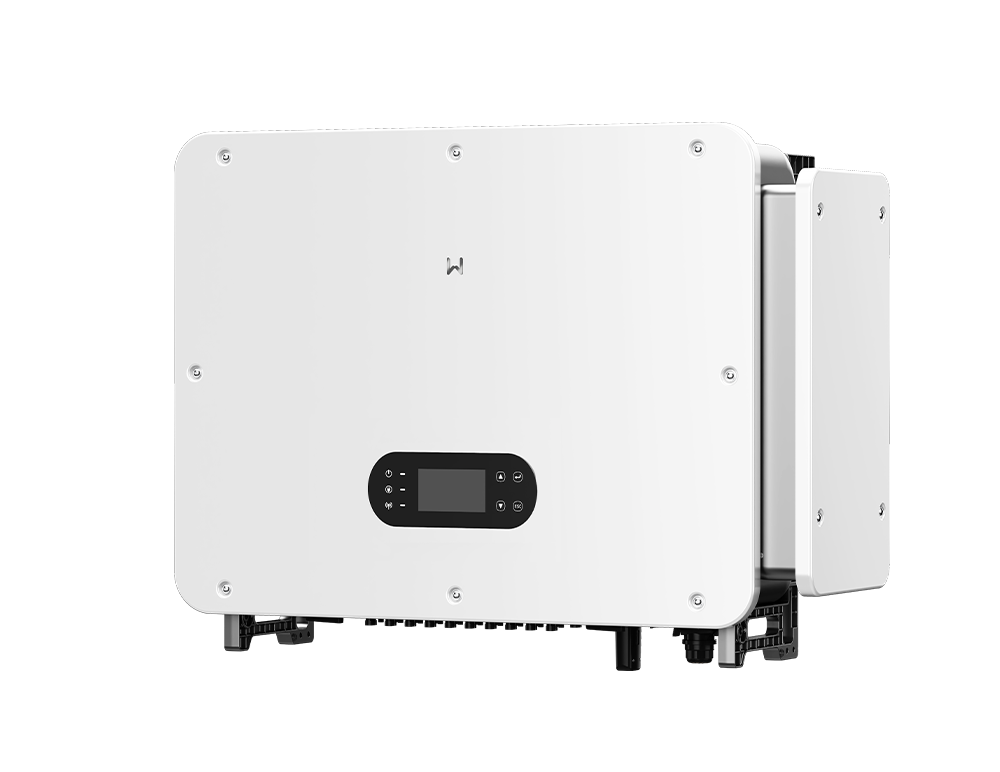

The GoodWe GW100KETR-G10 is a 100kW three-phase hybrid inverter for large commercial and industrial solar systems. It combines solar input, high-voltage battery storage and grid supply, with 10 MPPTs, a maximum efficiency of 98.1% and an IP66 enclosure.
DATASHEET | BATTERY COMPATIBILITY SHEET
| Model | GW100KETR-G10 |
| Rated AC Output Power | 100kW (100.0kVA) |
| Max Output Apparent Power | 110.0kVA |
| Phase | Three phase |
| Max PV Input Power | 200kW |
| Number of MPPTs | 10 |
| MPPT Voltage Range | 160 – 1000V |
| Max Efficiency | 98.1% |
| Battery Voltage Range | 700 – 1000V |
| Battery Ports | 1 |
| Max Continuous Charge / Discharge Current | 157.1A |
| Backup | Nominal 100.0kVA, max 110.0kVA; STS Box or STS Cabinet required |
| Ingress Protection | IP66 |
| Dimensions (W × H × D) | 995 × 758 × 358 mm |
| Weight | 96 kg |
Please confirm battery compatibility before ordering.
