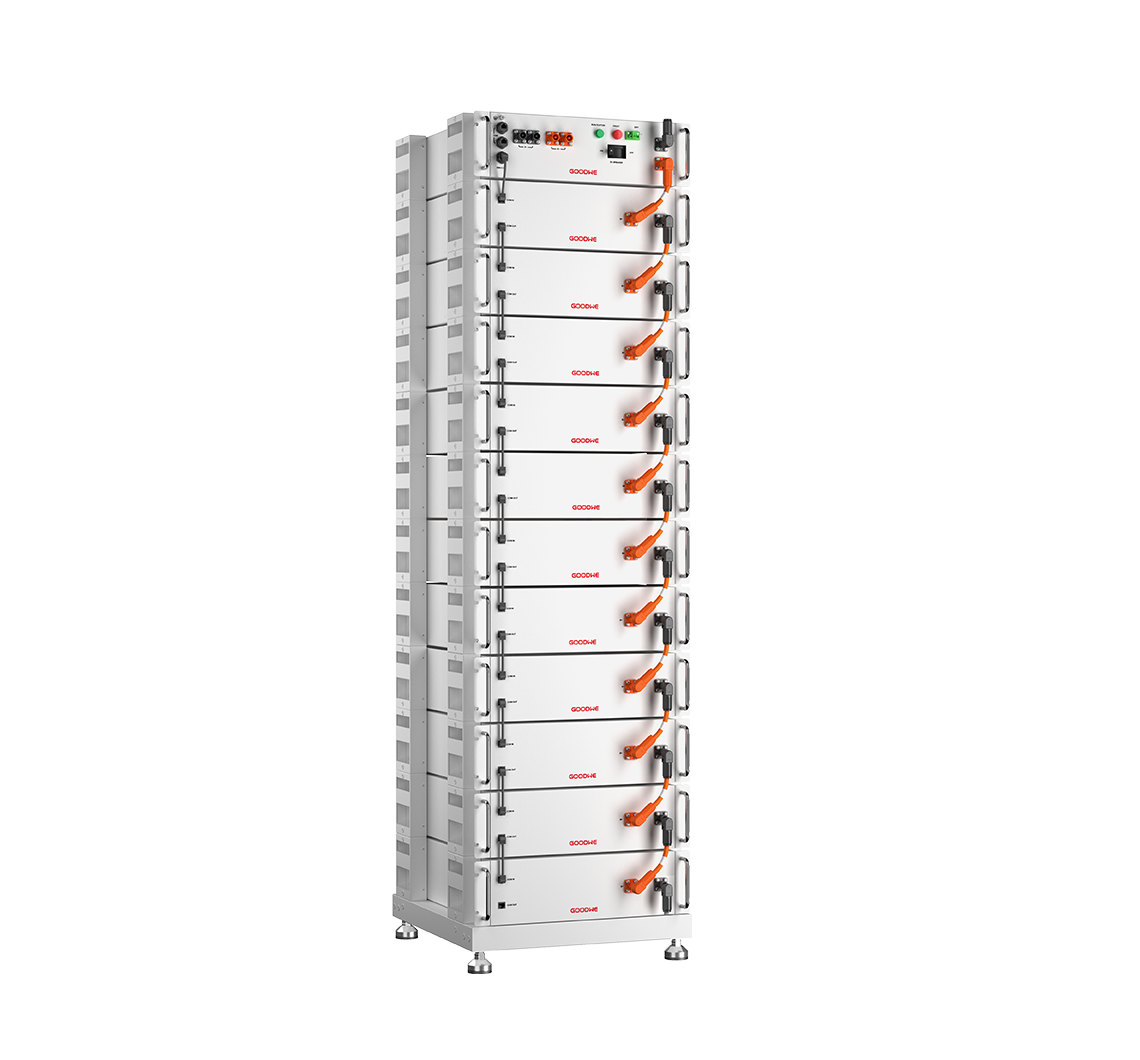

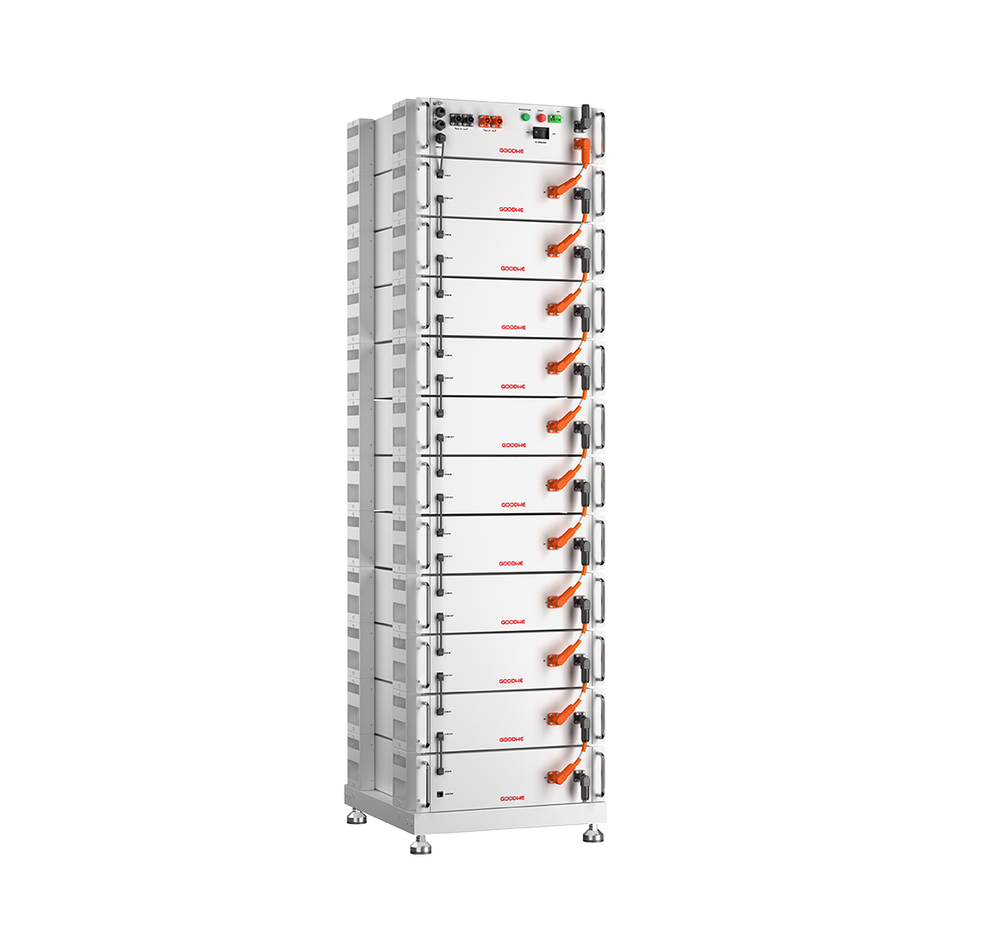

The GoodWe GW51.2-BAT-I-G10 is a high-voltage LiFePO4 battery system with 51.2kWh nominal energy (50kWh usable), built from ten 5.12kWh packs. It is designed for large residential, commercial and industrial solar storage and belongs to a modular series from 25.6kWh to 56.3kWh.
DATASHEET | COMPATIBILITY LIST
| Model | GW51.2-BAT-I-G10 |
| Nominal Energy | 51.2kWh |
| Usable Energy | 50.0kWh (100% DoD, 0.2C, 25 ± 2°C, beginning of life) |
| Cell Type | LiFePO4 (LFP) |
| Packs | 10 × GW5.1-PACK-I-G10 (5.12kWh, 42.5 kg each) |
| Nominal Voltage | 512V (operating range 459.2 – 577.6V) |
| Max Charge / Discharge Current | 100A / 110A |
| Max Charge / Discharge Power | 51.2kW / 56.3kW |
| Round-Trip Efficiency | 96% |
| Cycle Life | 6000 cycles (25 ± 2°C, 0.5C, 90% DoD, 70% EOL) |
| Communication | CAN (RS485 optional) |
| Ingress Protection | IP20 |
| Dimensions (W × H × D) | 481 × 1615 × 552 mm |
| Weight | 472 kg |
| Charge / Discharge Temperature | 0°C to +55°C / -20°C to +55°C |
| Parallel Support | Up to 6 racks (337.8kWh total) |
Please confirm inverter compatibility before ordering.
