Description
xProduct Details:
The brand new GoodWe SMT series inverter is ideal for medium and large-scale commercial rooftop installations, providing maximum efficiency of 98.8% and up to three MPPT routes for a particular environment. With its weight of just 40kg and compact design, the SMT series is easier to handle and install compared to similar inverters in the market. Featuring a maximum DC input voltage of 1100 V, a wider MPPT range, and a start-up voltage of 180 V, the SMT series guarantees an earlier generation of power and a longer working time in order to maximize long-term returns and profitability for the system's owner

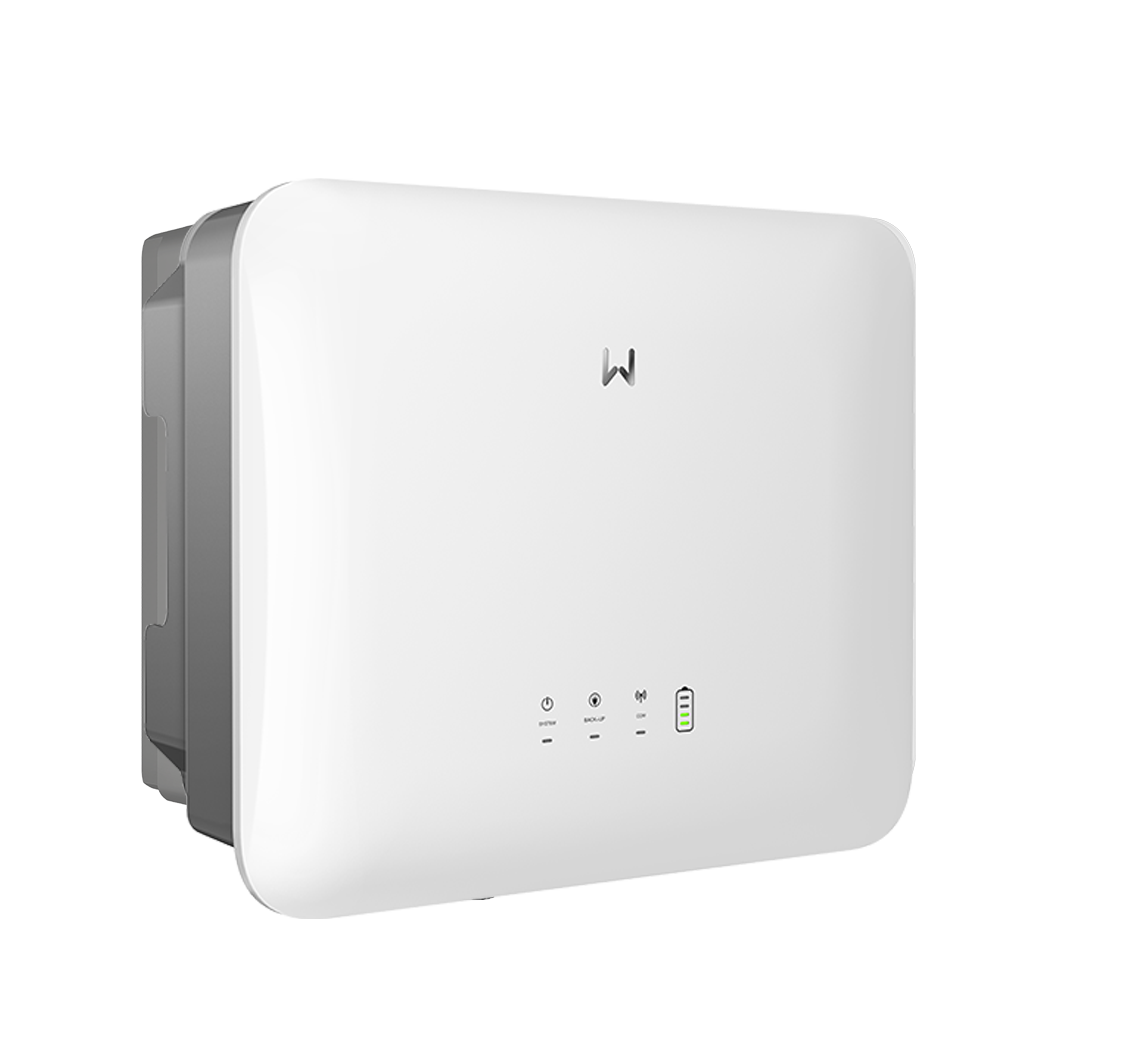

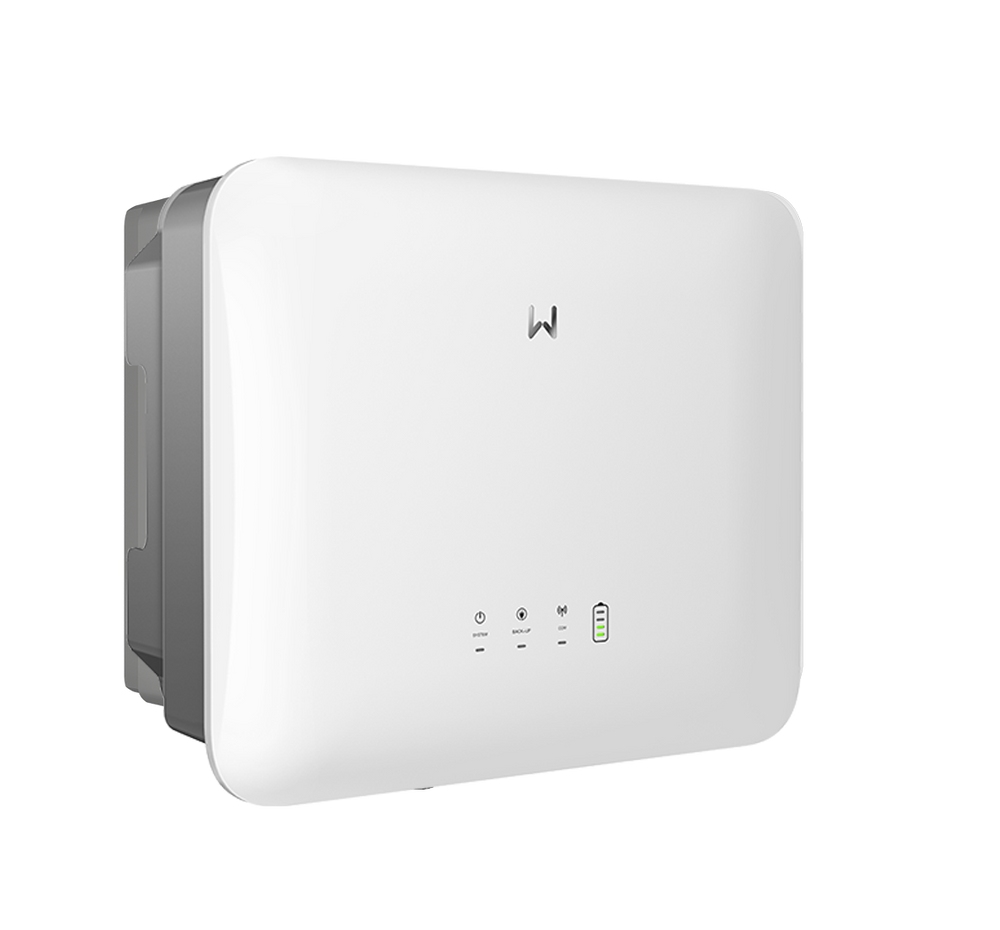

The GoodWe GW30K-MT is an innovative solution of GoodWe for solar installations with a connection to the three-phase network. The SMT series inverter is small, light, and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation due to its fanless, natural convection cooling.
The network inverter GoodWe GW30K-MT is compatible with three-phase installations up to 30,000W. It incorporates three MPPT.
Features:
- Compact and lightweight
- 30% DC input oversizing
- Up to 10% AC output overloading
- Wide MPPT range from 200 V to 950 V
- IP65 dustproof and waterproof
| Display Specification | |
| Display | LCD & LED or APP & LED |
| Frequency | |
| Nominal Output Frequency (Hz) | 50/60 |
| Summary | |
| Ambient Temperature | -30~60 (°C) |
| EMC Standard | EN61000-6-1/EN61000-6-2/EN61000-6-3/EN61000-6-4 |
| Apparent Power | Max: 33000 VA |
| Power Factor | Output: ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Relative Humidity | 0~100% |
| Output Power | Max: 33000W |
| Output Current | Max: 48A |
| Voltage DC | |
| DC Input Voltage | Max: 1100V |
| HARDWARE FEATURES | |
| Efficiency | Max: 98.80% | European: >98.5% |
| Input Current | Max: 25/25/25A |
| Output | |
| Nominal Output Voltage | 400, 3L/N/PE or 3L/PE V |
| TECHNICAL SPECIFICATION | |
| MPPT Range | 200~950V |
| Operating Altitude | ≤3000 (m) |
| Protection degree | IP65 |
| PV Power | Max: 39000W |
| Starting Voltage | 180V |
| General Specification | |
| Communication | RS485 or WiFi or GPRS or PLC (LCD); WiFi+RS485 or GPRS+RS485 (APP) |
| No. of MPP Trackers | 3 |
| Nominal Output Power | 30000 W |
| Safety Regulation | IEC62109-1&-2 |
| Short Current | Max: 31.3/31.3/31.3A |
| Weight | 40Kg |
| Dimension | (Width*Height*Depth mm): 480*590*200 |
| Input | |
| Nominal Input Voltage | DC: 600V |
