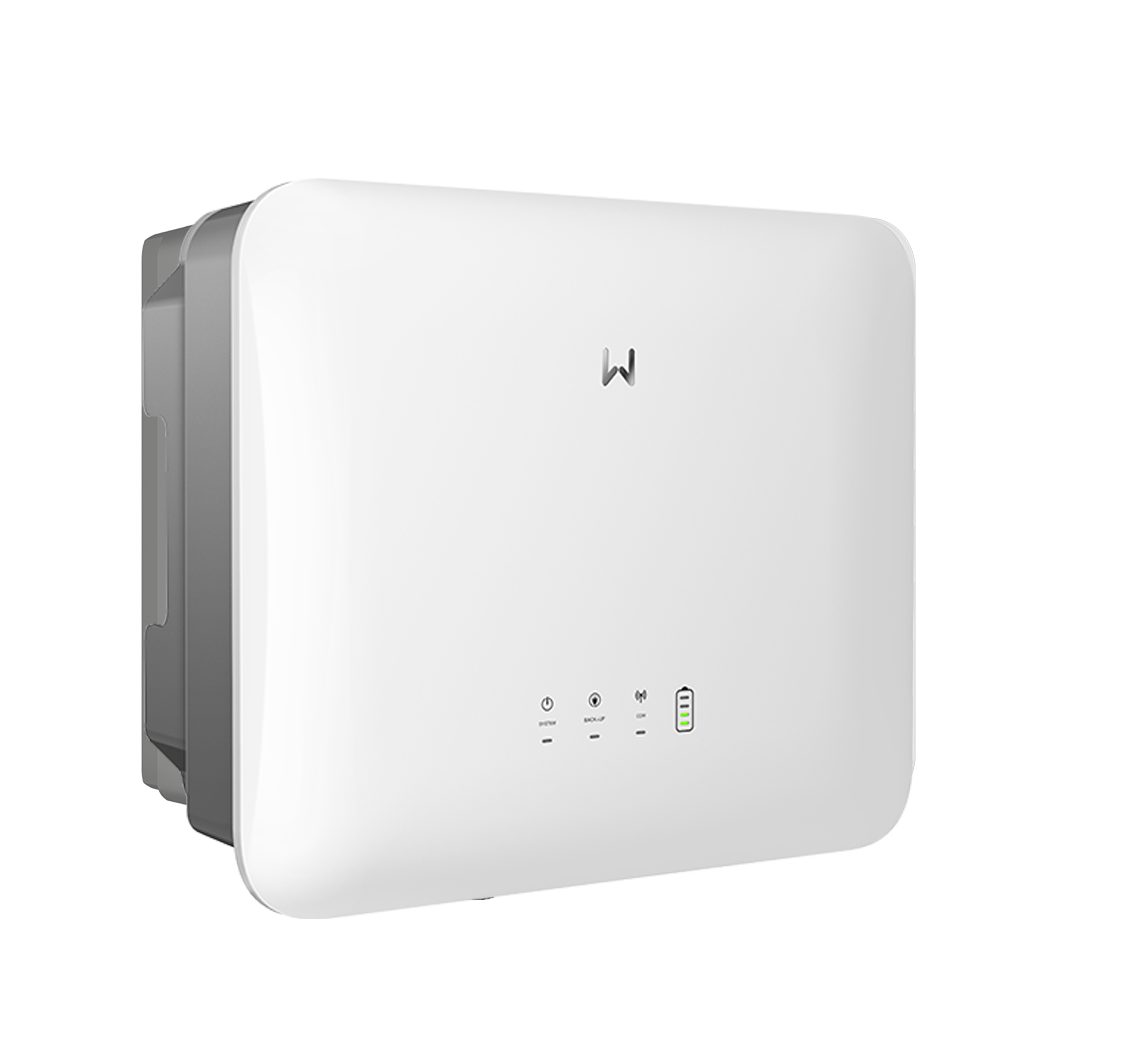

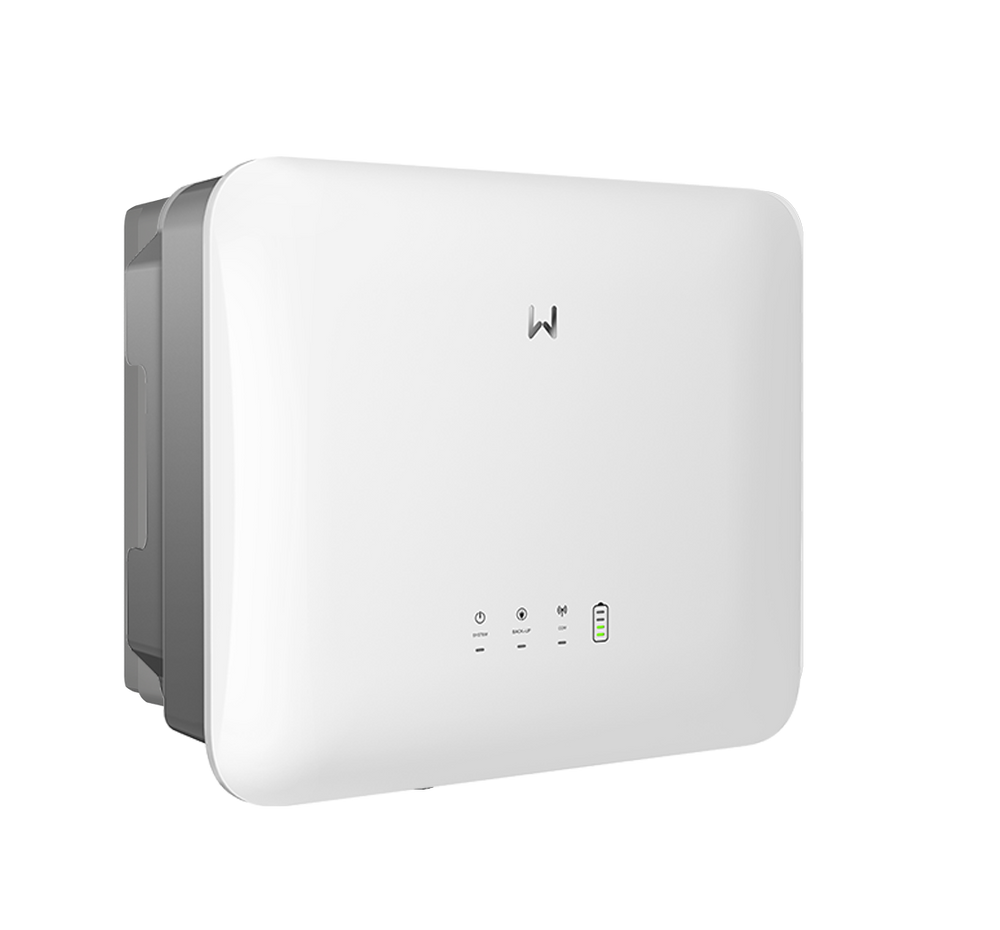

Goodwe 25Kw On-Grid Solar Inverter

The GoodWe Smart DT series inverter is specially designed for three-phase home solar systems, covering a wide power range of 05kW, 10kW, 15kW, 25kW & 50kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation thanks to its fanless, natural convection cooling.

Frequency
Nominal Output Frequency (Hz)	50/60
TECHNICAL SPECIFICATION
Anti-island Protection Monitoring	Integrated
Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Max Input Current (A)	27/27
Max. Output Apparent Power (VA)	25000
Max. Output Current (A)	37
Max.Short Current (A)	33.8/33.8
MPPT Range of load (V)	480~850
No. of input Strings per Tracker	3
Output THDi (@Nominal Output)	<1.5%
Start Voltage [V]	250
General Specification
Max. Efficiency	98.4%
No. of MPP Trackers	2
Output Power Factor	~1(Adjustable from 0.8 leading to 0.8 lagging)
Solar Panel Specification
Max. DC power [W]	32500
Max. DC Voltage [V]	1000
MPPT Voltage Range [V]	260-850
Nominal DC Voltage [V]	620
Nominal Output Power (W)	25000
Nominal Output Voltage (V)	400, 3L/N/PE
Open Short Protection	Integrated
Residual Current Monitoring Unit	Integrated
