Description
xProduct Details:

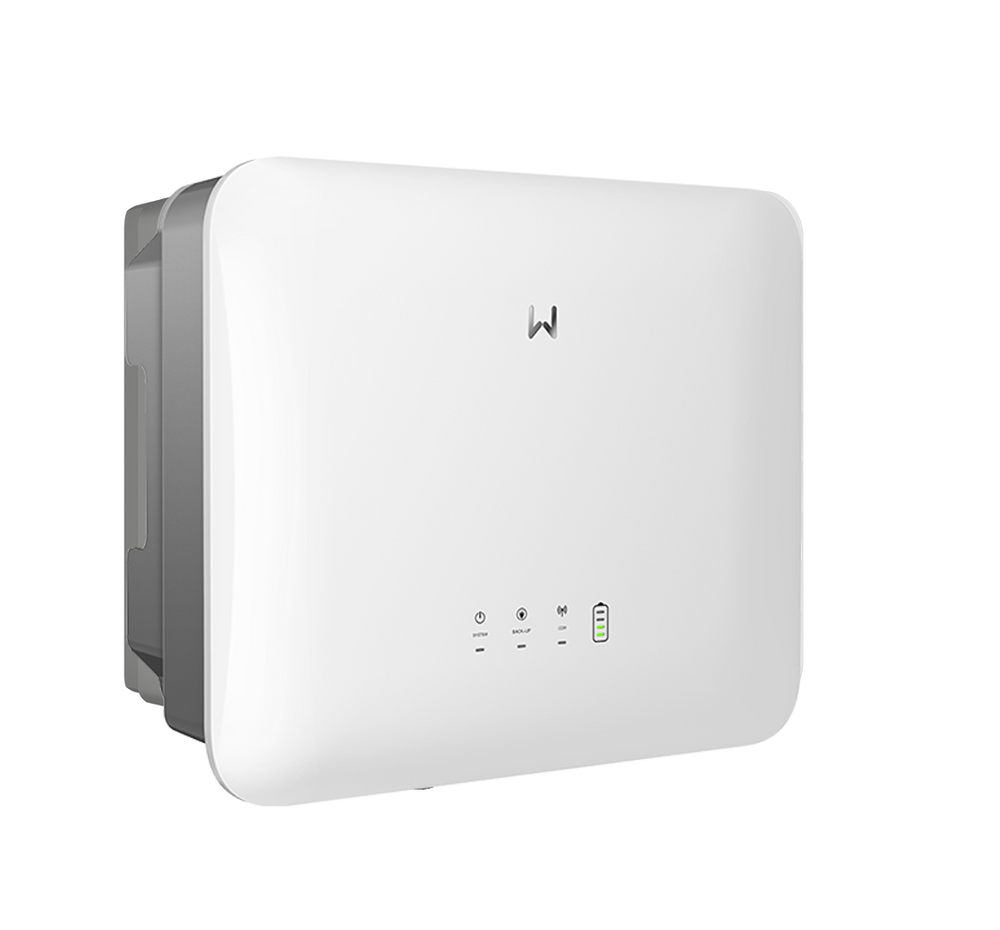

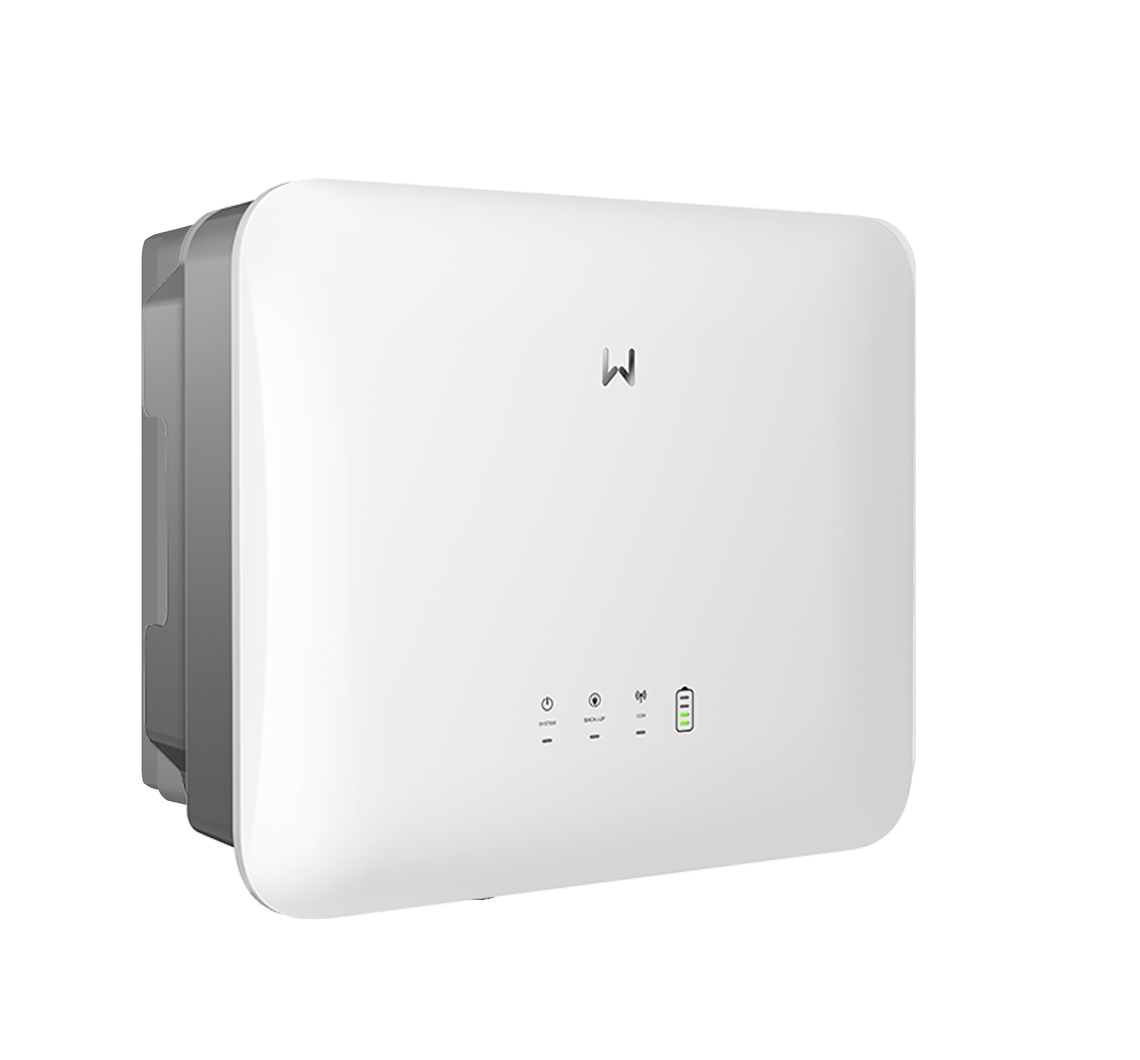

The GoodWe DT series inverter is suitable for commercial and industrial roofs as well as small and medium-sized photovoltaic power systems. It has lower loss, more compact and lighter weight, extremely low THDi compared to similar products so that the power grid is purer. Because of the reliable grid support capabilities, high waterproof and dustproof grade and extra-wide voltage range of module, it can not only be used in commercial roof and commercial power station PV systems, but also is qualified for the design requirements of large-megawatt power stations.
Features:
- Perfect for commercial rooftop
- Super large 5-inch LCD
- IP65 dustproof and waterproof
- IP68 rated cooling fan
- RS485, Wi-Fi and Ethernet communication
| Frequency | |
| Nominal Output Frequency (Hz) | 50/60 Hz |
| User Interface | LCD & LED |
| Summary | |
| EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
| Apparent Power | Max Output: 20000 VA |
| Power Factor | Output: ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Relative Humidity | 0~100% |
| Size | (Width*Height*Depth mm): 516*650*203mm |
| Output Power | Nominal: 20000 W |
| Output Current | Max: 30A |
| Voltage DC | |
| DC Input Voltage | Max: 1000V |
| HARDWARE FEATURES | |
| Efficiency | Max: 98.4% | Europe: 98.1% | MPPT: 99.9% |
| Input Current | Max: 22/22 A |
| Output | |
| Nominal Output Voltage | 400, 3L/N/PE V |
| TECHNICAL SPECIFICATION | |
| DC Input Power | Max: 26000W |
| MPPT Range | 260~850 V |
| MPPT Range of load (V) | Full: 470~850 |
| Operating Altitude | ≤4000 (m） |
| Protection degree | IP65 |
| Start-up Voltage | 250 V |
| General Specification | |
| Communication | RS485 or WiFi |
| No. of MPP Trackers | 2 |
| Noise | <45 (dB) |
| Operating Temperature | -25~60 (°C) |
| Safety Regulation | IEC62109-1&2 |
| Short Current | Max: 27.5/27.5 A |
| Weight | 39 Kg |
| Solar Panel Specification | |
| Nominal DC Voltage [V] | Input: 620 |
