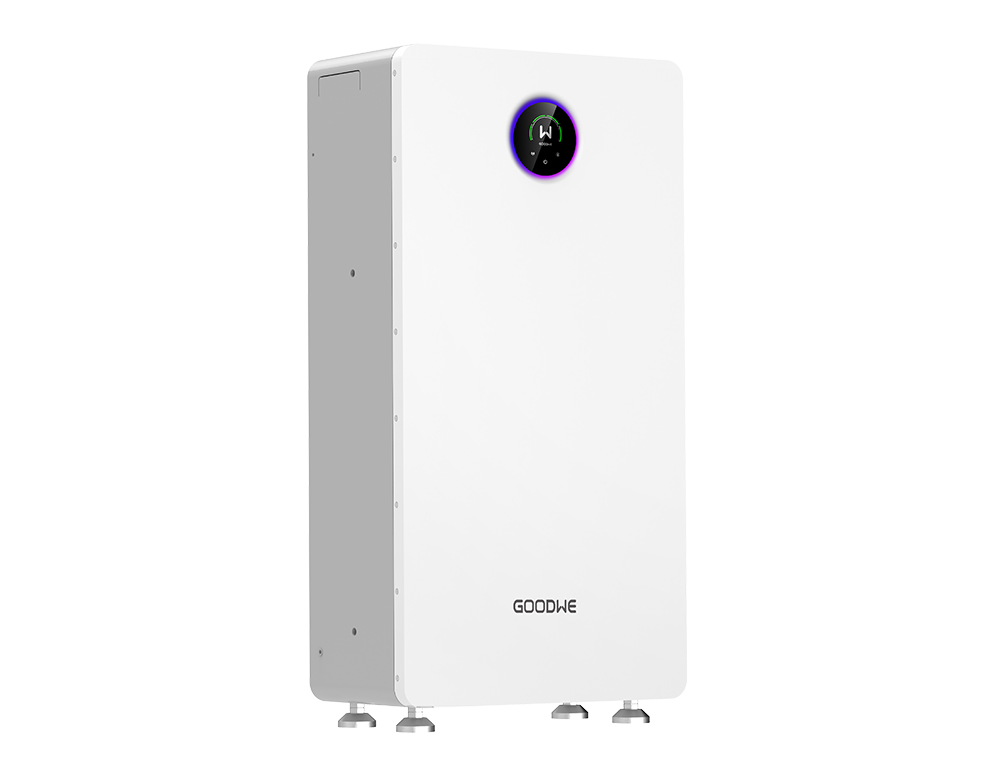

The GoodWe Lynx A G4 Series (model GW16.1-BAT-LV-G10) is a 16.1kWh low-voltage LiFePO4 battery for residential energy storage. It stores excess solar energy during the day for use at night or during outages, and is compatible with GoodWe low-voltage inverters.
DATASHEET | COMPATIBILITY LIST
| Model | GW16.1-BAT-LV-G10 |
| Nominal Energy | 16.1kWh |
| Usable Energy | ≥14.9kWh (100% DoD, 0.2P charge/discharge, 25 ± 2°C, beginning of life) |
| Nominal Voltage | 51.2V (range 45.92 – 57.76V) |
| Cell Type | LiFePO4, 314Ah cells |
| Cycle Life | ≥8000 cycles (25 ± 2°C, 0.5C, 90% DoD, 70% SOH) |
| Max Continuous Charge Current | 157A |
| Max Continuous Discharge Current | 200A |
| Max Output Power | 10kW (peak 16kW for 15s) |
| Communication | CAN |
| Ingress Protection | IP65 |
| Dimensions (W × H × D) | ≤470 × 895 × 245 mm (without base) |
| Weight | ≤122 kg |
| Charge Temperature | 0°C to +55°C |
| Discharge Temperature | -20°C to +55°C |
| Parallel Support | Up to 30 units |
| Certifications | IEC 62619, IEC 60730, IEC 63056, CE, UN38.3, MSDS |
Please confirm inverter compatibility before ordering.
