xProduct Details:

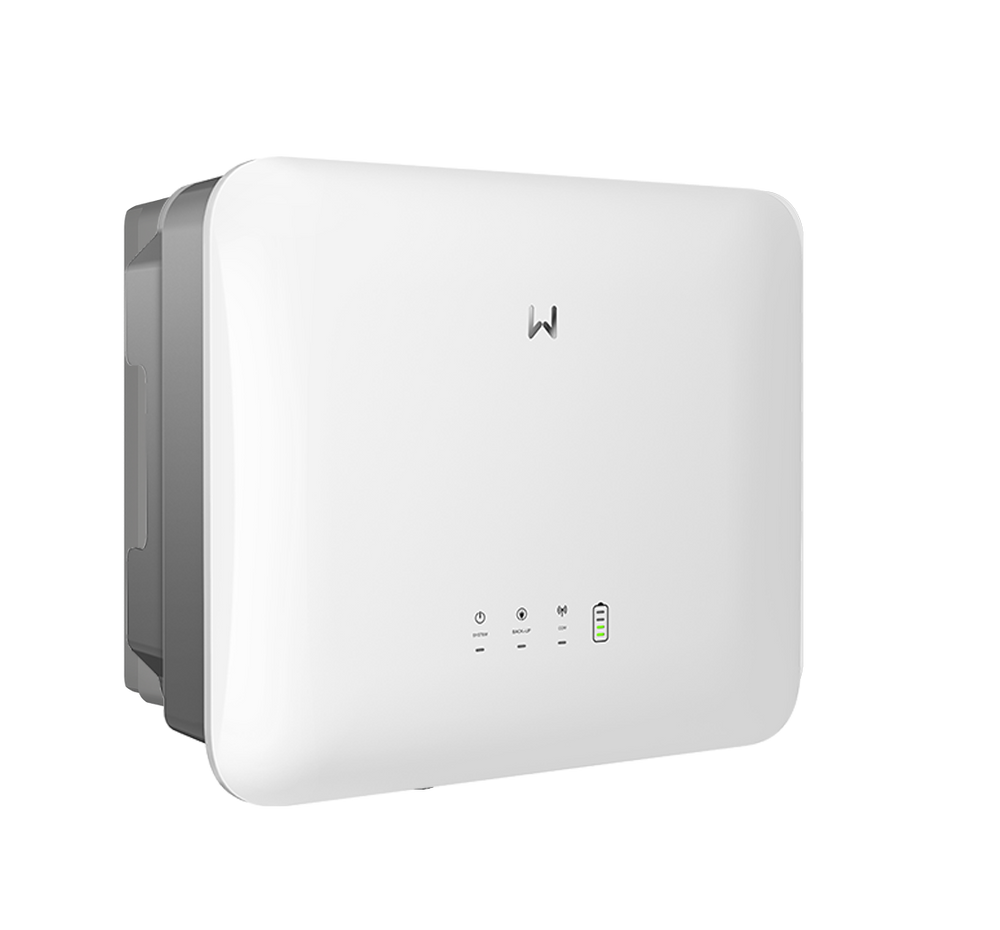

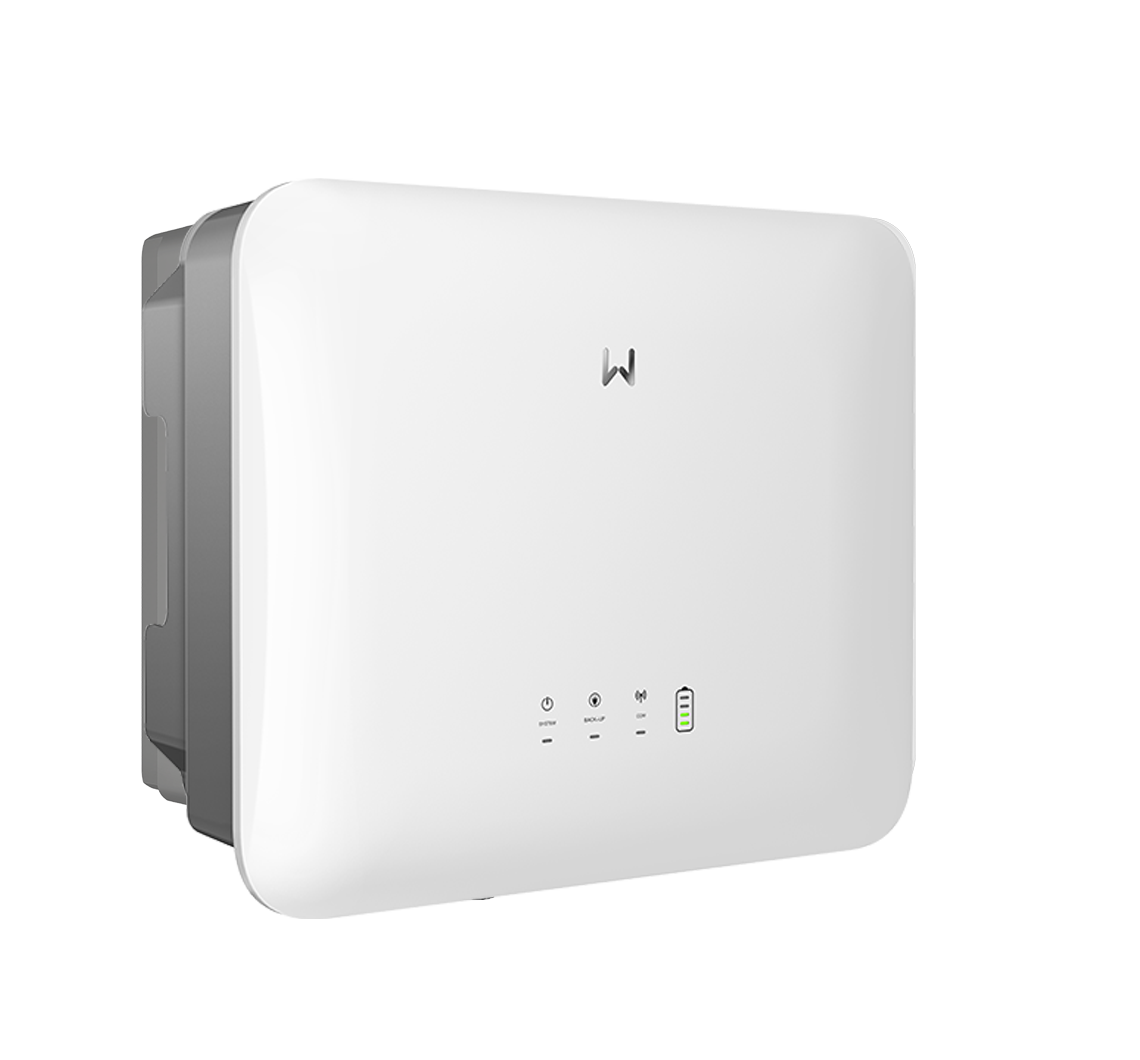

The GoodWe Smart DT series inverter is specially designed for three-phase home solar systems, covering a wide power range of 4kW, 5kW, 10kW, and 15kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation thanks to its fanless, natural convection cooling.
Document:
| Frequency | |
| Nominal Output Frequency (Hz) | 50/60 |
| TECHNICAL SPECIFICATION | |
| Anti-island Protection Monitoring | Integrated |
| Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Max Input Current (A) | 22/11 |
| Max. Output Apparent Power (VA) | 16500 |
| Max. Output Current (A) | 24 |
| Max.Short Current (A) | 27.6/13.8 |
| MPPT Range of load (V) | 480~850 |
| No. of input Strings per Tracker | 2/1 |
| Output THDi (@Nominal Output) | <2% |
| Start Voltage [V] | 180 |
| General Specification | |
| Max. Efficiency | 98.3% |
| No. of MPP Trackers | 2 |
| Output over Current Protection | Integrated |
| Output Power Factor | ~1(Adjustable from 0.8 leading to 0.8 lagging) |
| Solar Panel Specification | |
| Euro Efficiency (at 600Vdc) | 98.0% |
| Max. DC power [W] | 19500 |
| Max. DC Voltage [V] | 1000 |
| MPPT Voltage Range [V] | 200-800 |
| Nominal DC Voltage [V] | 620 |
| Nominal Output Power (W) | 15000 |
| Nominal Output Voltage (V) | 400, 3L/N/PE |
| Open Short Protection | Integrated |
| Residual Current Monitoring Unit | Integrated |
