Description
xProduct Details:

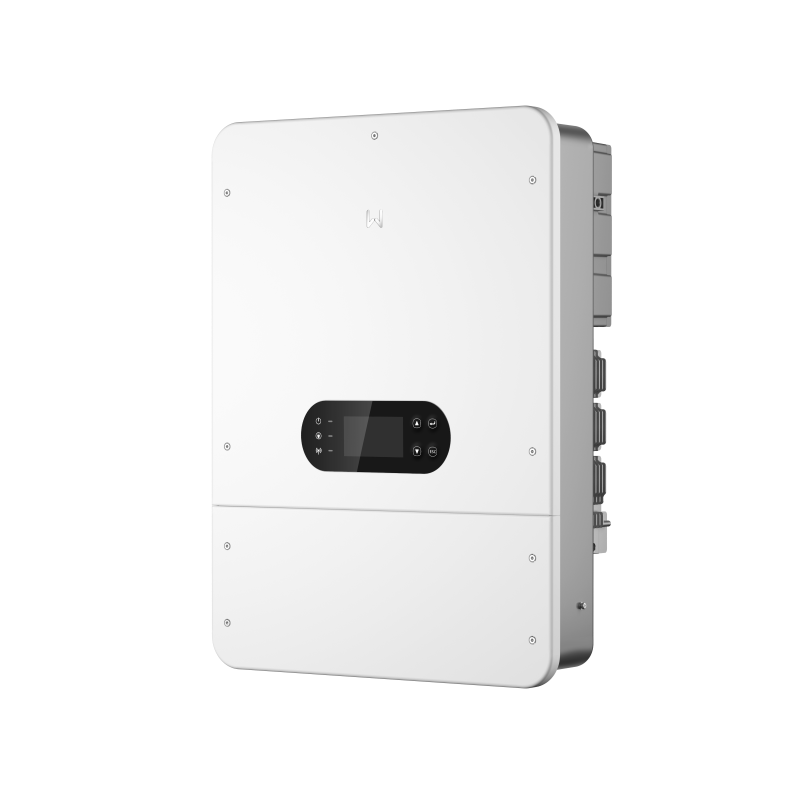

The GoodWe 15kW 3-Phase Hybrid Solar Inverter (typically the GW12K-ET series) is a high-performance solution for residential and light commercial solar installations, offering battery storage compatibility, high efficiency, and smart monitoring capabilities. It is designed to manage power from solar panels, a battery bank, and the electricity grid, ensuring seamless backup power.
Features:
- Hybrid Functionality: The inverter intelligently manages power flow, prioritizing solar power for consumption and battery charging, with automatic switching between sources in less than 10ms for seamless backup during outages.
- Efficiency: It boasts a high maximum efficiency, with specific models reaching up to 98.2% (HV model) or 97.8% (LV model), maximizing energy conversion.
- Monitoring: Built-in Wi-Fi allows for remote monitoring via the GoodWe SEMS portal and mobile app, providing real-time data and configuration settings.
- Durability & Safety: The unit typically has an IP65 or IP66 protection rating, making it weather-resistant for both indoor and outdoor installation. Advanced safety features like anti-islanding protection, PV reverse polarity protection, and optional Arc Fault Circuit Interrupter (AFCI) technology are integrated.
| Summary | |
| Output Power | 12 kW |
| HARDWARE FEATURES | |
| Efficiency | Up to 97.8% |
| TECHNICAL SPECIFICATION | |
| AC Output | 3-Phase, 400V |
| General Specification | |
| Battery Voltage Range | 40V – 60V (nominal 48V) |
| MPPT | 3 Independent MPPTs |
| Protection Rating | IP66 |
| Input Voltage | 600V |
