Description
xProduct Details:

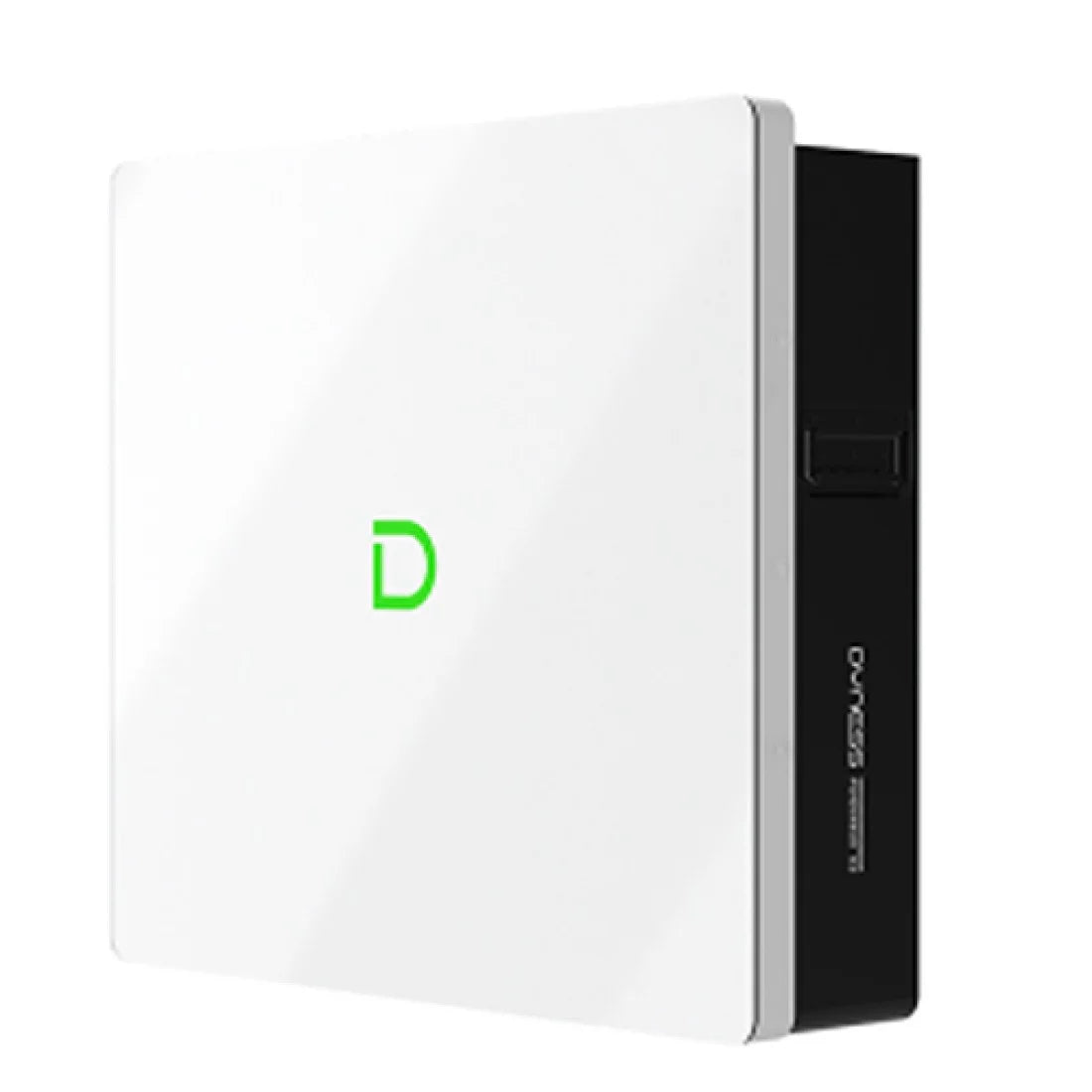

The Dyness Powerbox G2 is a 10.24 kWh lithium iron phosphate (LiFePO4) battery designed for residential energy storage, featuring a high IP65 protection rating for flexible indoor/outdoor installation and a built-in fire suppression system.
Features:
- Safety and Durability: The LiFePO4 chemistry is noted for being safe and stable, less prone to overheating than other chemistries. An integrated Battery Management System (BMS) and an active fire suppression system with a 5-second response time further enhance safety.
- Performance in various conditions: The IP65 rating allows for flexible installation indoors or outdoors. The optional self-heating function ensures operation in extreme cold conditions down to -20°C.
- Scalability: The system can be expanded by connecting up to 50 units in parallel, providing substantial energy coverage for various household needs.
- Compatibility: The Powerbox G2 is compatible with a wide range of inverters from brands such as Goodwe, Deye, Growatt, Sungrow, SMA, and Victron, making it a versatile addition to different solar energy systems.
| TECHNICAL SPECIFICATION | |
| Nominal voltage | 51.2 V |
| General Specification | |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥8000 cycles (or 10 years) |
| discharge current | 200 A (Peak: 300A for 2 mins) |
| Discharge power | 10.24 kW |
| Nominal Capacity | 200 Ah |
| Nominal Energy | 10.24 kWh |
| Protection Rating | IP65 (dust and water resistant) |
| Usable Energy | 9.728 kWh (95% Depth of Discharge) |
| Weight | ~98 kg (with front panel) |
| Dimensions | 710 x 165 x 640 mm |
