Description
xOverview:

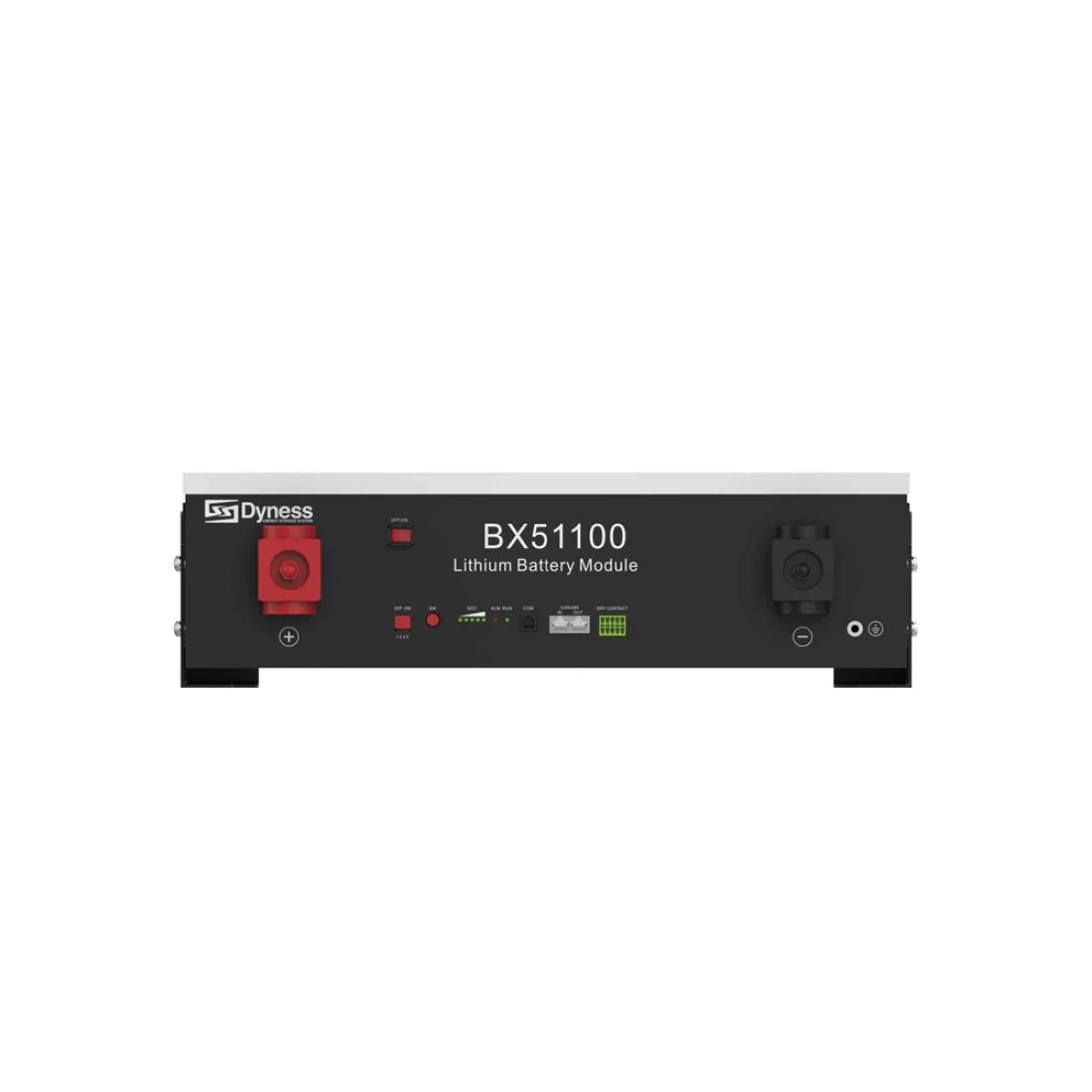

BX51100 adopts economic design, and is tailor-made for residential & light commercial. This LFP battery module supports remote update and APP monitoring and provides multiple installation options - wall-mounted, floor-standing and stack. lt is scalable from 5.12 - 153 kWh (max. 30 modules in parallel), providing various energy storage options to meet different requirements.
Features:
- Real-time monitoring & Remote upgrade available
- Flexible expansion
- Wall-mounted, floor-standing and stacked
- Cell level monitoring and balancing
- Matching with leading inverters
| Camera Specification | |
| Protection Level | lP20 |
| HARDWARE FEATURES | |
| Operating Voltage | 44.8 ~ 57.6V |
| TECHNICAL SPECIFICATION | |
| Nominal voltage | 51.2V |
| General Specification | |
| Charging Temp. Range | 0~55℃ |
| Communication | CAN/RS485/RS232 |
| Net Weight | 50kg |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Dimension | 558*545*150 mm |
