xProduct Details:

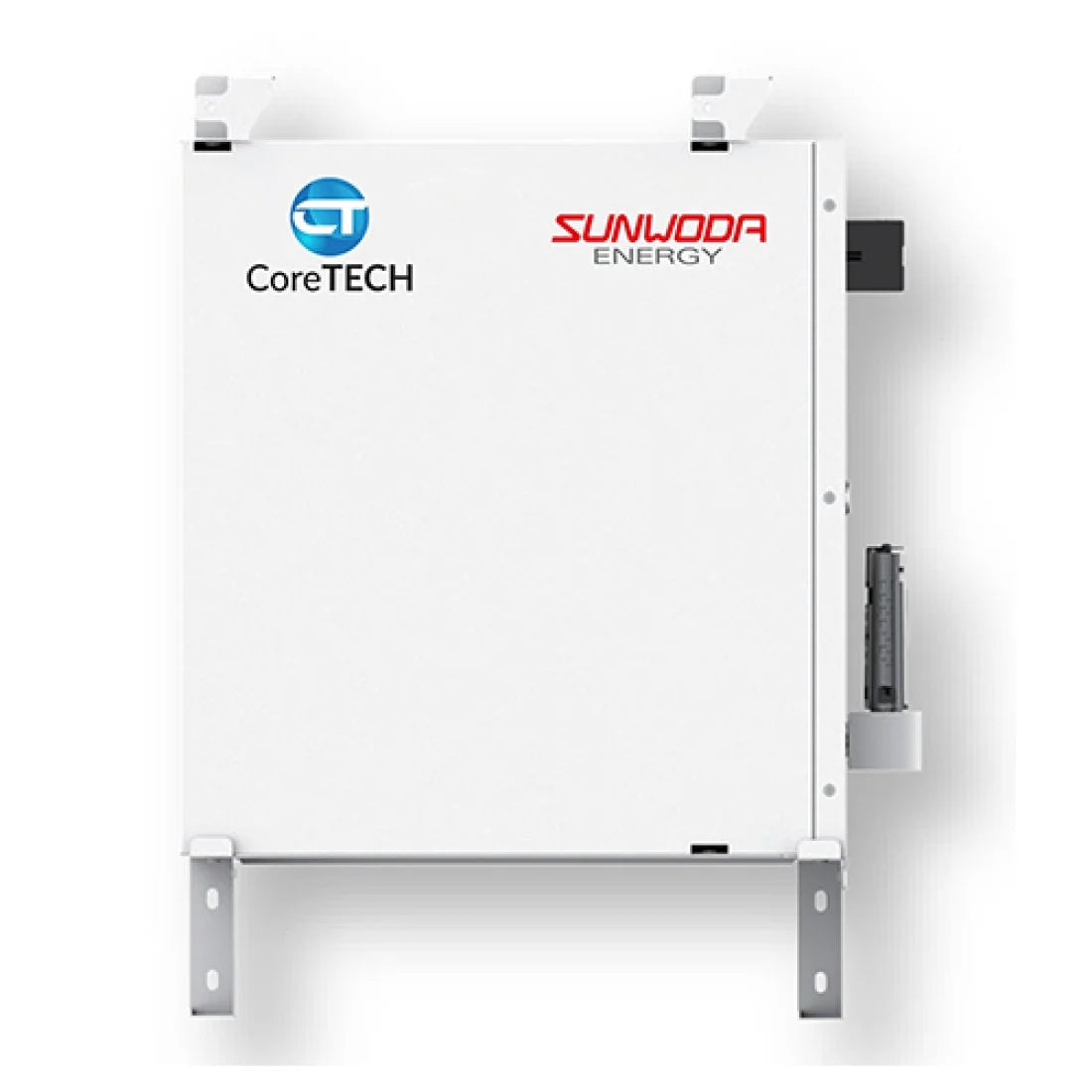

The Coretech Sunwoda 51V 100Ah lithium battery is a Lithium Iron Phosphate (LiFePO₄) battery designed for high-capacity energy storage, especially in solar power systems. It has a nominal energy capacity of 5.12 kWh.
Features:
- Battery Management System (BMS): An integrated BMS protects against over-voltage, under-voltage, overcurrent, and temperature extremes.
- Scalability: The battery can be connected in parallel with other units to increase total energy storage for larger applications.
- Communication: Equipped with communication interfaces, such as CAN 2.0 and RS485, for integration with compatible inverters and monitoring systems.
- Installation: This is an indoor unit with an IP20 protection rating.
| TECHNICAL SPECIFICATION | |
| Rated Voltage | 51.2V |
| General Specification | |
| Charge Current | 100A |
| Cycle Life | 6000 cycles at 80% Depth of Discharge (DoD). |
| discharge current | 100A |
| Protection Rating | IP20 |
| Rated Capacity | 100Ah |
| Usable Energy | 5.12 kWh. |
| Weight | 45 kg |
| Dimensions | 501 x 142 x 452 mm (W x H x D). |
