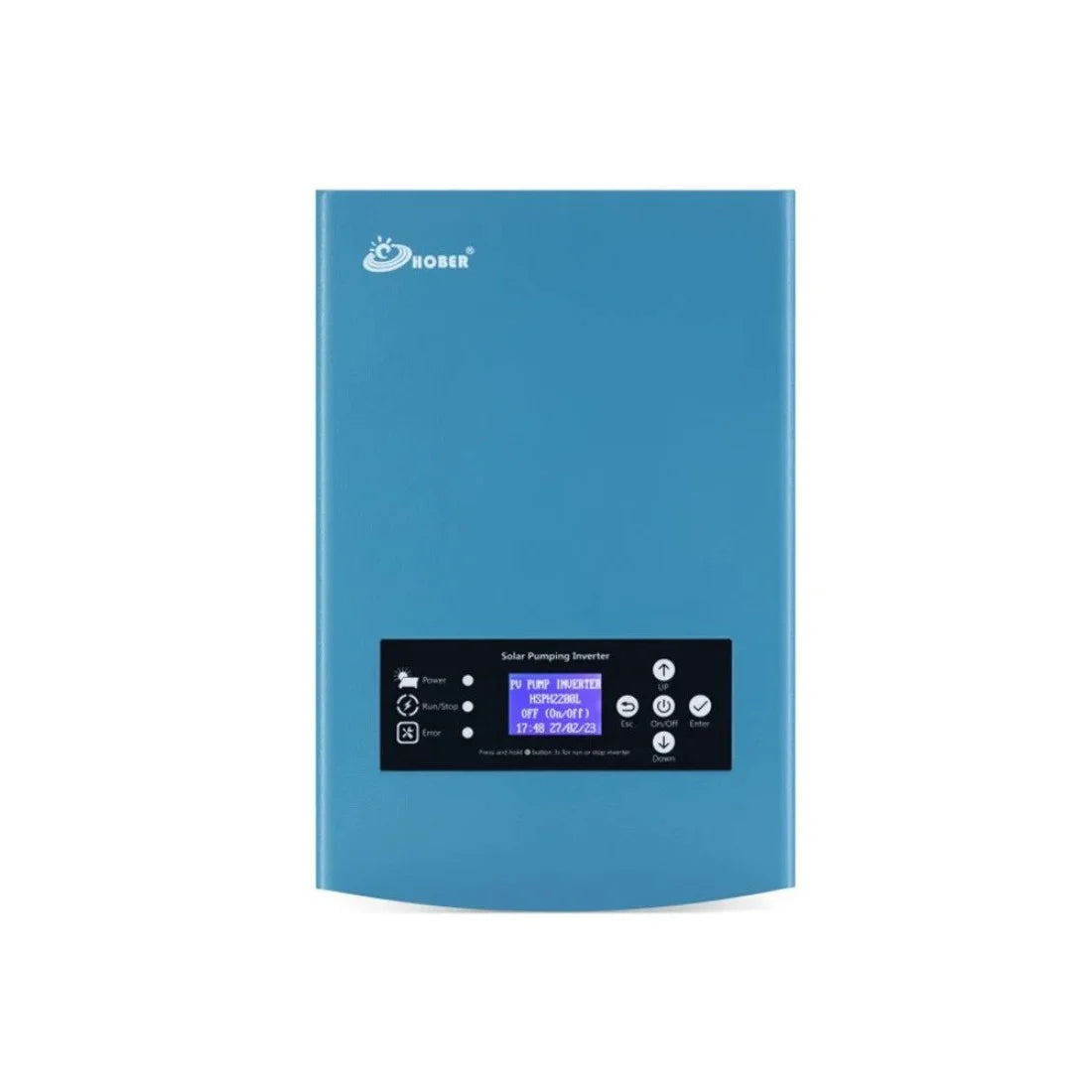

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Features: Smart: Full automatic operation, no need programming, user-friendly Modular design, easy install , operate & maintain...
Vendor: Sultani.pk
Availability: In stock
Rs.578,200.00
Rs.578,200.00
Please hurry! Only 13 left in stock
Subtotal: Rs.578,200.00
10 customers are viewing this product

Warranty as per Manufacturer's Terms and Conditions

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Rs.578,200.00
Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter

Rs.578,200.00
Description
Description
x

Features:

  • Smart:
  • Full automatic operation, no need programming, user-friendly
  • Modular design, easy install , operate & maintain
  • GPRS or SPMCS remote control for option

Efficient:

  • 1:1 match to AC pumps with strong overload capacity
  • 30% more water output with advanced inverter control algorithm
  • Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
  • Good ROI (Return on Investment) against diesel powered pumping

Reliable:

  • Hybrid function – support solar power, grid power/generator input.
  • Multi power sources work as complementary to achieve system working 24 hours per day
  • IP65 design, continuous full-load operation between -10℃ to +60℃
  • Compatible with all AC pump types

Comprehensive Protections:

  • Soft start
  • DC Input Anti-reverse
  • AC Input/Output Phase lost(3Phase)
  • AC Output Short Circuit
  • AC Output Unbalance (3Phase)
  • Pump Dry run protection By sensor/ software
  • Water Over Flow of Tank
  • Solar Low power
  • Over Load
  • AC Output Over Current

Documents:

Knox HOBER-HSPH18.5KH 18.5 kW 3 Phase Solar Pump Inverter Datasheet.pdf

Display Specification
Display LCD Display
INPUT
Vmp Voltage 400V
Summary
Output Frequency 50-60Hz (support Program range 15 to 60Hz)
HARDWARE FEATURES
Efficiency 97%
Input Current 61A
TECHNICAL SPECIFICATION
Cooling Method Force Cooling by Fan (IP68)
Rated Input Current 38A
General Specification
4G/wifi monitor & controller Optional
Humidity 95% Rh
Hybrid Mode AC Supplement automatic when solar low power and ac disconnect while solar power recovery
Max Adapted AC Pump Horse 25A
Max Adapted AC Pump Power 18500W
Max MPPT Efficiency 99%
Max Voc Voltage 800V
Noise <50dB
Note Automatic MMPT function to identify the Voc and Vmp od solar panel, No need programming
Number off strings 4
Operating Temperature Range -10 to 60°c need to dearte load
Rated Out Current 40A
Using altitude <3000m,Above 3000m need to derate load
Voltage 380/400/440V
Water Level Sensor Well Tank Yes
WaterProof IP65
Weight 16Kg
Dimensions 540*385*220mm
Output Voltage 380/400/440V
